IE-C5DD4UG0250MCAXXX-X
IE-C5DD4UG0250MCAXXX-X
Wiring diagram

IE-C5DD4UG0250MCAXXX-X

Tämä tuote ei ole pian enää saatavana.

Viimeinen tilauspäivä: /Date(1783288800000)/

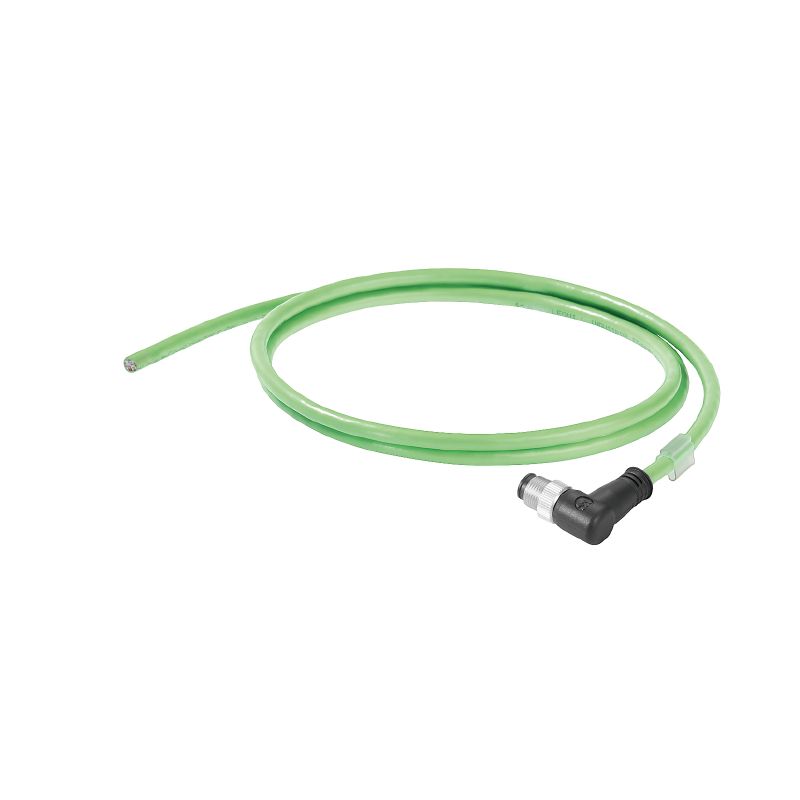

Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 25 m

Product ID 1059750250
Gegevensblad downloaden Tekninen tuki Tuotelataukset
Lisävarusteet 8 Samankaltaiset tuotteet 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

버전
Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 25 m
주문 번호
1059750250
Typ
IE-C5DD4UG0250MCAXXX-X
GTIN(EAN)
4050118324198
Qty.
1 items

Dimensions and weights

길이
25 m
Length (inches)
984,252 inch
Net weight
1 384,24 g

Temperatures

보관 온도
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
설치 온도
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Norm skärmmaterial
DIN EN 13602 Cu-ETP-A..B
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Стандарт, материал провода
DIN EN 13602 Cu-ETP-A

Standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Arrangement of wire cores
Star-quad
Complete shielding
Aluminiumfolie
Schirmgeflecht aus Kupferdrähten
Cross-section
4*AWG 22/7 - 0,32 mm²
Durchmesser Innenmantel
3,9 mm
Farbsequenz Adern - Adernpaare
white, yellow, blue, orange
Filler
As central element
Insulation
PE
Insulation cross-section
1,5 mm
Material sheath
PUR
Number of wires
4
Překrývání opletu stínění
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,9 mm
Shielding
SF/UTP
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Stärke Schirmgeflecht
0,13 mm
Wire core insulation thickness
0,38 mm
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Geschwindigkeit
180 m/min
Impedenza caratteristica
100± 15 Ω 1–100 MHz-en
Kapazität bei 1 kHz
52 nF/km
Kategorie
Cat. 5 (ISO/IEC 11801) / Cat. 5e (TIA T568-B)
Operating voltage, UL
600 V
Resistance differential
3 %
Schleifenwiderstand
120 Ω/km
Sesgo de retardo
40 ns/100m
Signallaufzeit
5,3 ns/m
Tension de fonctionnement (classification UL)
600 V
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Átviteli impedancia
20 mΩ/m at 10 MHz

Mechanical and material properties of cable

Accelerartion
4 m/s²
Böjcykler
3 Mio
Brandspridning
No
Böjradie min, unik
5 x cable diameter
Böjradie min, upprepad
7.5 x cable diameter
Dragkraft
≤ 150 N
Flamhärdighet
in accordance with IEC 60332-1
Halogener
halogen-free, according to IEC 60754-2
hastighet
180 m/min
Oljebeständighet
in accordance with IEC 60811-2-1
Rivtålighet
very good
Silikonfri
Yes
UV-beständig
Yes

Plug, left

Stickkontakt vänster
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Plug, right

Wtyk po prawej
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
