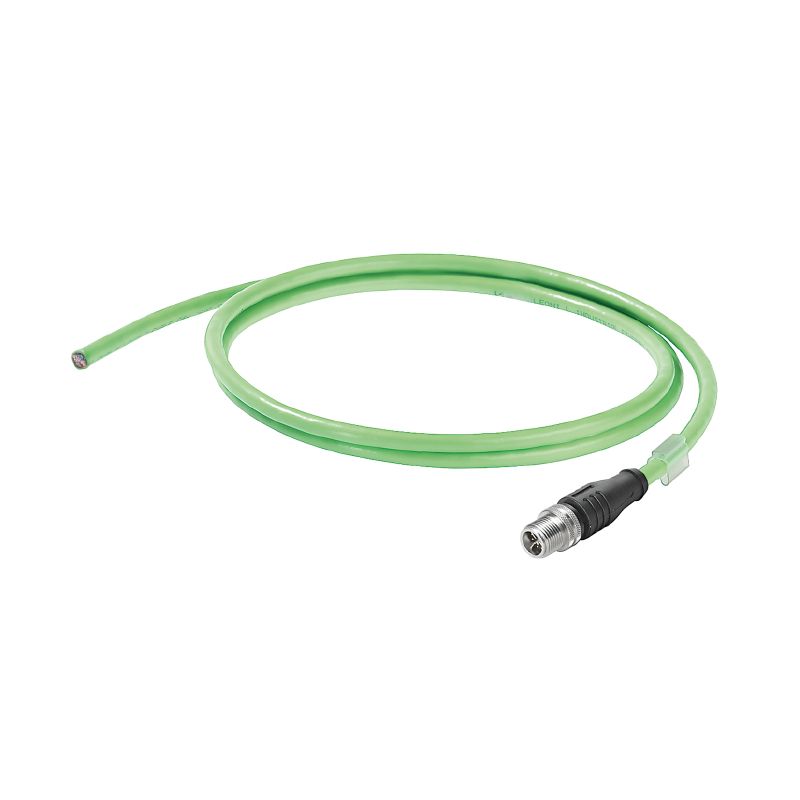

System cable, M12 X-type IP 67 straight male, Open, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 3 m

Ürün No. 1463650030
Veri sayfasını indir Product Downloads
Accessori 2 関連製品 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Konektor, vlevo Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 X-type IP 67 straight male, Open, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 3 m
Código
1463650030
Type
IE-C6EL8UG0030XCSXXX-E
GTIN (EAN)
4050118270693
Qty.
1 adet

Dimensions and weights

Longitud
3 m
Length (inches)
118,11 inch
Net weight
152 g

Temperatures

Storage temperature
-40 °C...80 °C
작동 온도
-40 °C...80 °C
Température de pose
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Gęstość dymu
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Copper diameter
0,48 µm
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Insulation
PE
Insulation cross-section
0,98 mm
Material sheath
PUR
Number of wires
8
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,1 mm
Sheathing colour
녹색(RAL 6018)
Shielding
S/FTP
Shielding braid thickness
0,1 mm
Standard designations
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Strands
7
Wire material
Stranded tin-plated copper wire
Wire pair shielding
Aluminium foil
Wiring
EIA/TIA T568 B

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 5 Ω at 100MHz
Loop resistance
290 Ω/km
Signal propagation time
5,2 ns/m
Test voltage: wire-wire-shield
700 Vrms, 50 Hz, 1 min
Transfer impedance
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Abrasion resistance
very good
Halogener
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-1-2
Устойчивость к воздействию масла
in accordance with IEC 60811-2-1

Konektor, vlevo

Plug left
M12, X-codiert, IP67, Stiftkontakt, gerade, Stecker, Kunststoff, geschirmt

Plug, right

Wtyk po prawej
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
