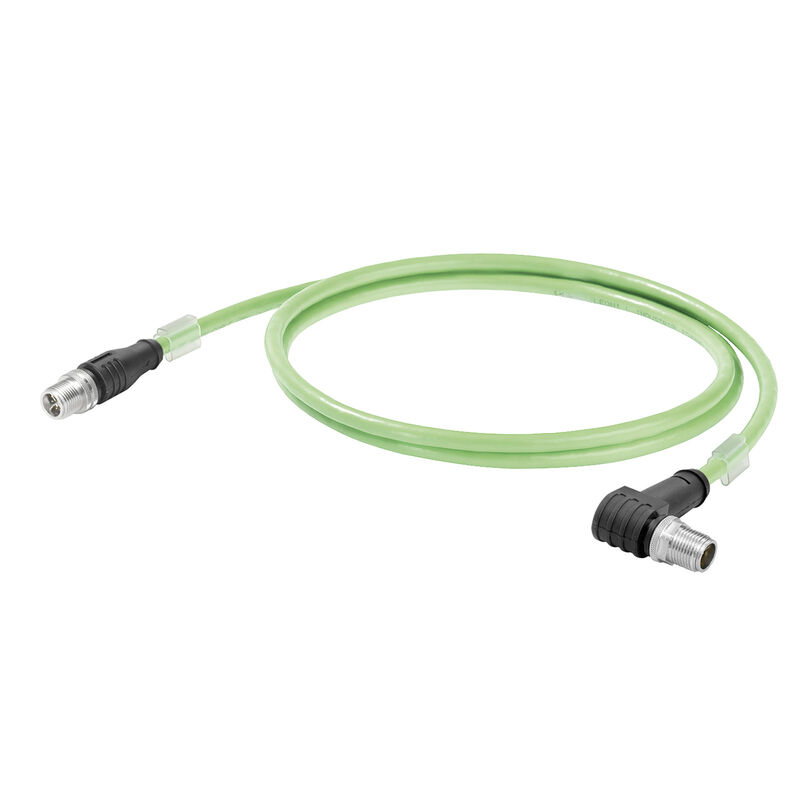

System cable, M12 X-type IP 67 straight male, M12 X-type IP67 male, angled, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 5 m

Item No. 2485580050
Download data sheet Product Downloads
Accessories 2 Related products 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 X-type IP 67 straight male, M12 X-type IP67 male, angled, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 5 m
Order No.
2485580050
Type
IE-C6EL8UG0050XCSXCA-E
GTIN (EAN)
4050118496178
Qty.
1 items

Dimensions and weights

Length
5 m
Length (inches)
196.85 inch
Net weight
262 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Cable structure

Aislamiento
PE
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Diametro rame
0.48 µm
Färgsekvens ledare - ledarpar
white - blue, white - orange, white - green, white - brown
Isolationsdurchmesser
0.98 mm
Köpeny anyaga
PUR
Köpenyátmérő, min.
6.1 mm
Ledarmaterial
Stranded tin-plated copper wire
Number of wires
8
Sheath diameter, max.
6.7 mm
Sheathing colour
green (RAL 6018)
Standard designations
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Strands
7
Stínění
S/FTP
Tjocklek skärmflätning
0.1 mm
Vezetékezés
EIA/TIA T568 B
Wire pair shielding
Aluminium foil
Общий экран
Shielding braid made from copper wiring
와이어 코어의 배치
Twisted pair

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 5 Ω at 100MHz
Loop resistance
290 Ω/km
Signal propagation time
5.2 ns/m
Test voltage: wire-wire-shield
700 Vrms, 50 Hz, 1 min
Transfer impedance
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz
Transmission rate
10 Gbit/s

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1-2

Plug, left

Plug left
M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M12, X-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
