IE-C6EL8UG0100XCAU40-4X
IE-C6EL8UG0100XCAU40-4X
Connection diagram
IE-C6EL8UG0100XCAU40-4X
Pinning

IE-C6EL8UG0100XCAU40-4X

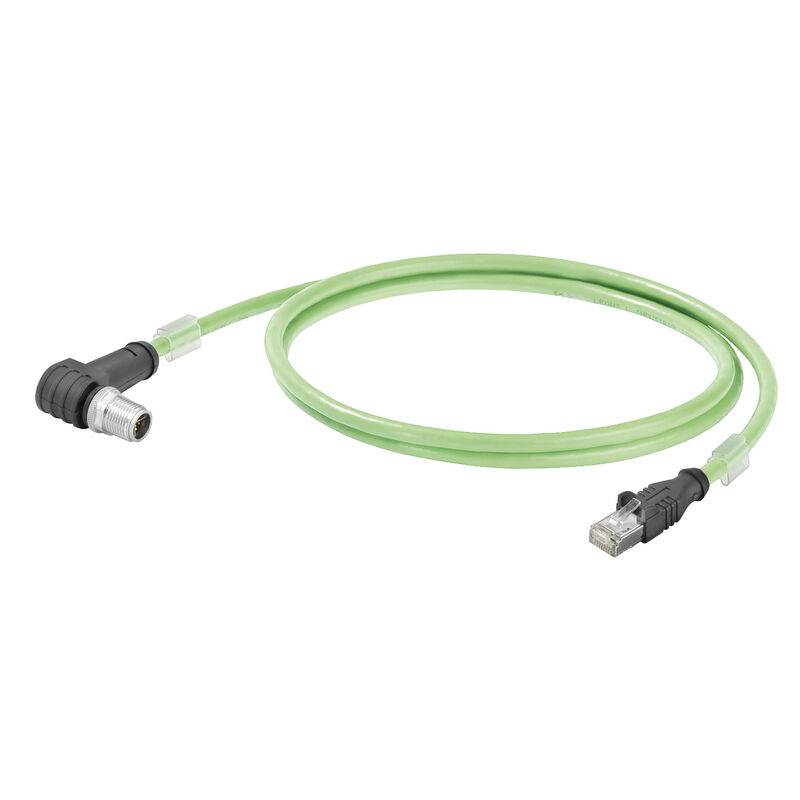

System cable, RJ45 IP 20, M12 x-type IP67 male, angled 180°, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 10 m

Produkt ID 2690230100
Download datablad Engineering-support
Tilbehør 2 Anvendte produkter 44
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, M12 x-type IP67 male, angled 180°, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 10 m
Order No.
2690230100
Type
IE-C6EL8UG0100XCAU40-4X
GTIN (EAN)
4050118696271
Qty.
1 Styk

Dimensions and weights

Length
10 m
Length (inches)
393,701 inch
Net weight
478 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Cable structure

Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Copper diameter
0,48 µm
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Diamètre de la gaine, max.
6,7 mm
Diámetro del aislante
0,98 mm
Insulation
PE
Köpenyátmérő, min.
6,1 mm
Materiale rivestimento
PUR
Number of wires
8
Samlingsskärm
Shielding braid made from copper wiring
Schirmung
S/FTP
Sheathing colour
green (RAL 6018)
Shielding braid thickness
0,1 mm
Standard designations
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Strands
7
Usytuowanie żył
Twisted pair
Wire material
Stranded tin-plated copper wire
Экранирование пары жил
Aluminium foil
결선
EIA/TIA T568 B

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 5 Ω at 100MHz
Loop resistance
290 Ω/km
Signal propagation time
5,2 ns/m
Test voltage: wire-wire-shield
700 Vrms, 50 Hz, 1 min
Transfer impedance
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1-2

Plug, left

Plug left
M12, X-coded, IP67, male contact, angled 180°, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
