Özellikler
| Gender | male |
| Housing main material | Zinc diecast |
| Housing style | V1 |
| Outlet direction | Straight |
| Protection degree | IP67 |
| Version | Empty enclosure, Plug housing, Variant 1 to IEC 61076-3-106, IP67 |
| Order No. | 1962550000 |

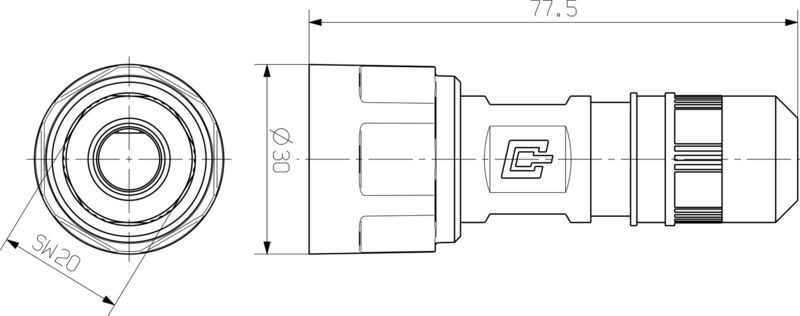

| Type | IE-PH-V01M |
| GTIN (EAN) | 4032248644681 |
| Qty. | 10 adet |
| Depth | 76 mm |
| Depth (inches) | 2,992 inch |
| Height | 30 mm |
| Height (inches) | 1,181 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Net weight | 96,7 g |
| Operating temperature | -40 °C...70 °C |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | e5bbf197-73b5-420b-90c0-0173b7b3b6b7 |
| Colour | Miscellaneous |
| Housing main material | Zinc diecast |
| Plugging cycles | 750 |
| Protection degree | IP67 |
| Connector standard | IEC 61076-3-106 Var. 1 |
| Approval/Certificate/Document of Conformity |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177505) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1962550000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1962550000&norm=0) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90841) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-02 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-01-04 |
| ROHS | Conform |
