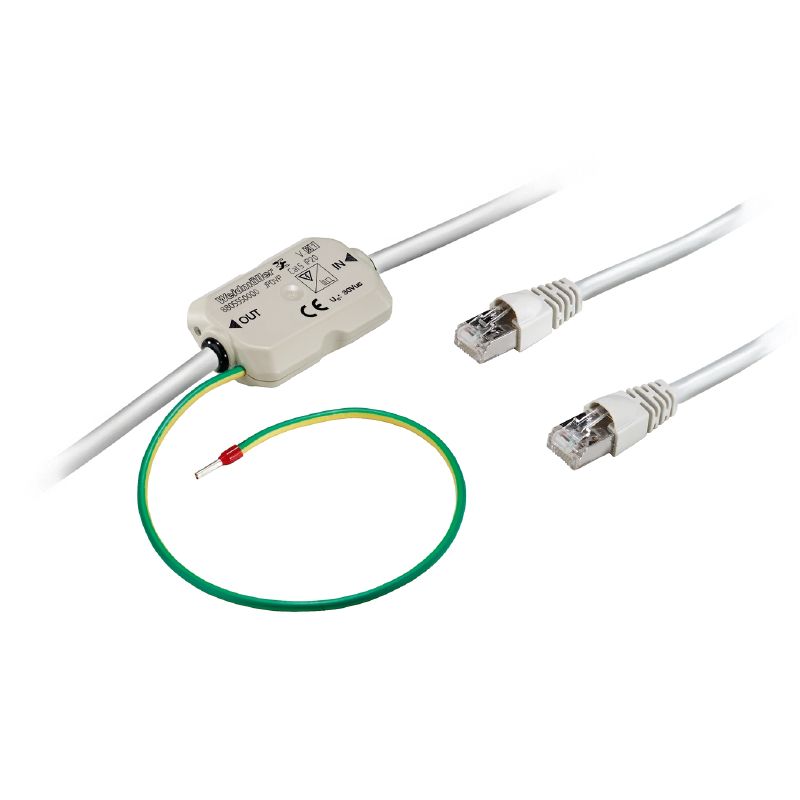

JPOVP RJ45 CAT6 IP20
JPOVP RJ45 CAT6 IP20
Electric symbol
Circuit diagram

JPOVP RJ45 CAT6 IP20

Surge protection for instrumentation and control, RJ45 plug-in connector, Surge protection for measurement and control

Product ID 8805550000
Gegevensblad downloaden Product Downloads Engineering Support
Toebehoren 5 Verwante producten 1
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Insulation coordination acc. to EN 50178 Rated data IEC / EN General data Insulation coordination Insulation coordination Connection data Technical specifications for cable Classifications Approvals

General ordering data

Version
Surge protection for instrumentation and control, RJ45 plug-in connector, Surge protection for measurement and control
Order No.
8805550000
Type
JPOVP RJ45 CAT6 IP20
GTIN (EAN)
4032248502882
Qty.
1  items

Dimensions and weights

Height
14,4  mm
Height (inches)
0,567  inch
Width
36  mm
Width (inches)
1,417  inch
Length
83  mm
Length (inches)
3,268  inch
Net weight
249  g

Temperatures

Storage temperature
-25 °C...70 °C
Operating temperature
-25 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
f6f3bfd2-c340-4be3-920c-070c382baca5

General data

Colour
Pebble grey
Design
miscellaneous
Optical function display
No
Protection degree
IP20
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Discharge current Imax (8/20µs) wire-wire
10 kA
Discharge current In (8/20µs) wire-wire
5 kA
Operating voltage
48  V
Protection level on output side Wire-PE 1kV/µs, typically
130  V
Protection level on output side Wire-PE 8/20 µs, typically
600 V
Protection level on output side Wire-wire 1 kV/µs, typically
80  V
Protection level on output side Wire-wire 8/20 µs, typically
300 V
Protection level, UP wire - PE
600  V
Protection level, UP wire - wire
130  V
Rated current IN
0,2  A
Rated voltage (AC)
34  V
Rated voltage (DC)
48 V
Rated voltage (DC), max.
48  V
Response time
≤ 5 ns
Voltage type
AC

General data

Design
miscellaneous
Version
Surge protection for measurement and control
Colour
Pebble grey
UL 94 flammability rating
V-0

Insulation coordination

Surge voltage category
III
Pollution severity
2
Protection degree
IP20

Insulation coordination

Pollution severity
2
Surge voltage category
III
Protection degree
IP20

Connection data

Type of connection
IP20
RJ45 plug-in connector

Technical specifications for cable

Cable length
3  m

Classifications

ETIM 6.0
EC000943
ETIM 7.0
EC000943
ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 9.0
27-13-08-07
ECLASS 9.1
27-13-08-07
ECLASS 10.0
27-13-08-07
ECLASS 11.0
27-13-08-07
ECLASS 12.0
27-17-90-90
ECLASS 13.0
27-17-90-90
ECLASS 14.0
27-17-90-90
ECLASS 15.0
27-17-90-90

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
