KTB MOPL 9161 S2N
Similar to illustration
Abbildung ähnlich
KTB MOPL 9161 S2N

KTB MOPL 9161 S2N

Klippon TB (Terminal Box), Mounting plate, Height: 859 mm, Width: 549 mm, Depth: 12 mm, Material: Stainless steel 1.4301 (304), untreated, silver

Tuotteen tunnus 1193910000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 On lisävaruste 30 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance General information General information on accessories Classifications

Approvals

ROHS
Conform

General ordering data

Version
Klippon TB (Terminal Box), Mounting plate, Height: 859 mm, Width: 549 mm, Depth: 12 mm, Material: Stainless steel 1.4301 (304), untreated, silver
Order No.
1193910000
Type
KTB MOPL 9161 S2N
GTIN (EAN)
4050118028522
Qty.
1  items

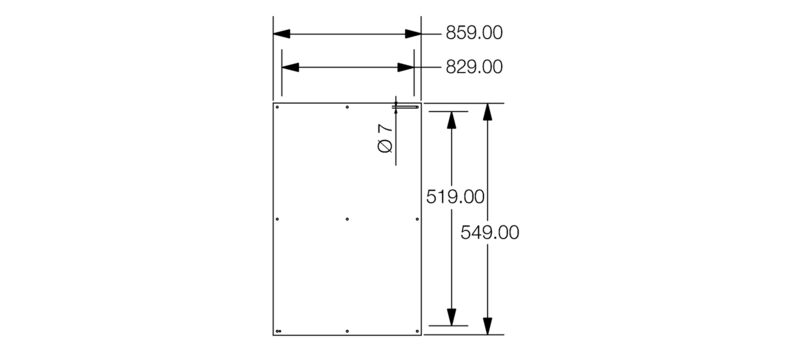

Dimensions and weights

Depth
12  mm
Depth (inches)
0,472  inch
Height
859  mm
Height (inches)
33,819  inch
Width
549  mm
Width (inches)
21,614  inch
Net weight
5 749  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Material
Stainless steel 1.4301 (304)
Material thickness
1,5  mm
Surface finish
untreated

General information on accessories

Material
Stainless steel 1.4301 (304)
Material thickness
1,5  mm
Solder eyelet hole diameter (D)
7  mm
Surface finish
untreated

Classifications

ETIM 6.0
EC000213
ETIM 7.0
EC000213
ETIM 8.0
EC000213
ETIM 9.0
EC000213
ETIM 10.0
EC000213
ECLASS 9.0
27-40-06-39
ECLASS 9.1
27-18-92-90
ECLASS 10.0
27-40-06-39
ECLASS 11.0
27-40-06-39
ECLASS 12.0
27-40-06-39
ECLASS 13.0
27-40-06-39
ECLASS 14.0
27-40-06-39
ECLASS 15.0
27-40-06-39
