RSM-16 24VAC/DC 2CO S
RSM-16 24VAC/DC 2CO S

RSM-16 24VAC/DC 2CO S

This product will soon be unavailable.

Interface, RSM, Screw connection

Item No. 1449310000
Download data sheet Product Downloads
Related products 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Rating data Ratings data input Ratings data output Insulation coordination (EN50178) Insulation coordinates (EN50178) Connection field Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E141197

General ordering data

Verze
Interface, RSM, Screw connection
Order No.
1449310000
Type
RSM-16 24VAC/DC 2CO S
GTIN (EAN)
4050118253481
VPE
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1770678000000)/

Dimensions and weights

Hloubka
71 mm
Depth (inches)
2.795 inch
Posizione verticale
109 mm
Height (inches)
4.291 inch
Width
290 mm
Width (inches)
11.417 inch
순중량
856.228 g

Temperatures

Température de stockage
-40...60 °C
Üzemi hőmérséklet
-25...50 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Operating temperature UL, max.
25 °C
Operating temperature UL, min.
0 °C
Rated current IN
22.9 mA
Rated voltage AC UN (supply)
24 V
Rated voltage DC UN (supply)
24 V
Rated current (supply)
1 A
Rated voltage AC UN (input)
24 V
Rated voltage DC UN (input)
24 V
정격 전압 AC UN (출력)
250 V
Rated current Imax (output)
4.6 A

General data

LED status display per relay
green

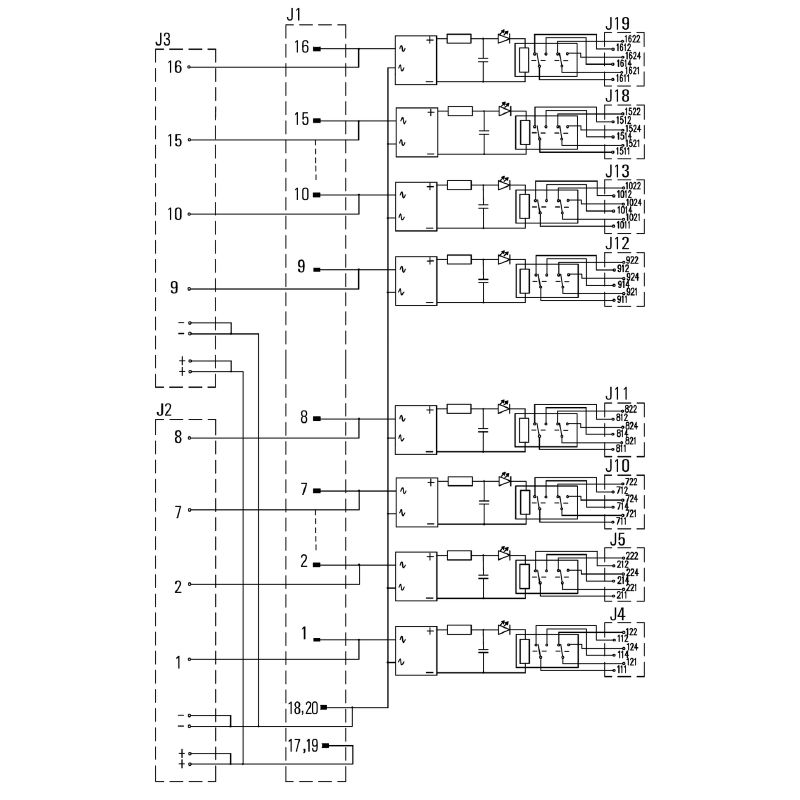

Connection data

Connection (field side)
LL2N 5.08 mm
Connection on control side
LP 5.08 + plug-in connector in acc. with IEC60603-13 / DIN41651, 20-pin
LL 5.08 mm

Rating data

Срок службы
30 x 106 switching cycles

Ratings data input

Input voltage
24 V AC ± 10%
24 V DC ± 10%
Input current
DC 22.9 mA / AC 13.9 mA

Ratings data output

Relätyp
RCL
Type of output
Potential-free contact
Material of contacts
AgNi 90/10
Rated voltage
≤ 250 V AC
Max. AC continuous current
5 A
minimalny prąd styku
0.1 A
Minimum contact voltage
5 V

Insulation coordination (EN50178)

Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1.2 kV

Insulation coordinates (EN50178)

Rated input insulation voltage
<50 V AC
Rated output insulation voltage
250 V AC
Overvoltage category input/output
III
Overvoltage category output/output
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1.2 kV
Clearance input/output
≥ 5.5 mm

Connection field

Clamping range, max.
6 mm²
Clamping range, min.
0.5 mm²
Flexible with sleeve, max.
2.5 mm²
Flexible with sleeve, min.
0.5 mm²
Flexible, max. H05(07) V-K
4 mm²
Flexible, min. H05(07) V-K
0.5 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Sleeve with plastic collar, max.
2.5 mm²
Solid, max. H05(07) V-U
6 mm²
Solid, min. H05(07) V-U
0.5 mm²
Stripping length
6 mm
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm
Type of connection
Screw connection

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
