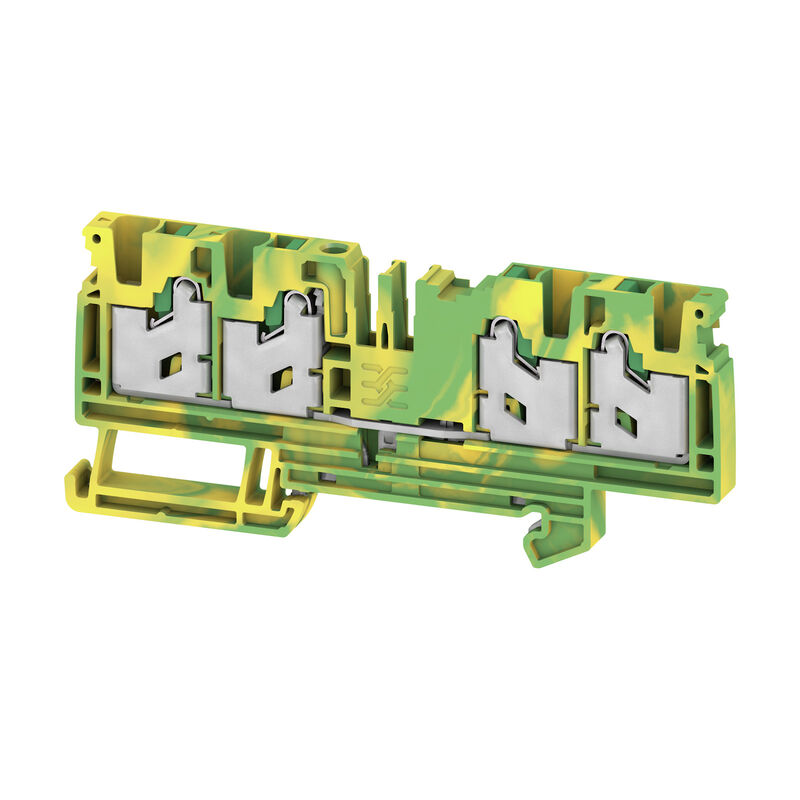

PE terminal, SNAP IN, Green/yellow, 4 mm², 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid

Tuotteen tunnus 2874900000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 59 Samankaltaiset tuotteet 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) przewody zaciskane (złącze wymiarowane) Märkdata enligt CSA General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PE terminal, SNAP IN, Green/yellow, 4 mm², 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
Order No.
2874900000
Type
S4C 4 PE
GTIN (EAN)
4064675649939
Qty.
50 items

Dimensions and weights

Depth
41,5 mm
Depth (inches)
1,634 inch
Height
94 mm
Height (inches)
3,701 inch
Width
6,1 mm
Width (inches)
0,24 inch
Masa netto
24,676 g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material básico
Wemid
Color
Green/yellow
kolor elementów uruchamiających
green
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV22ATEX8925U
Certificate No. (IECEX)
IECEXTUR22.0073U
Maks. przekrój przewodu (ATEX)
6 mm²
Wire cross section max. (IECEX)
6 mm²

System specifications

niezbędna płyta zamykająca
Yes
Liczba potencjałów
1
Number of levels
1
Number of clamping points per level
4
Número de potenciales por piso
1
Przyłącze PE
Yes
Carril de montaje
TS 35
Funkcja N
No
Funkcja PE
Yes
PEN function
No

Additional technical data

enclavable
Yes
Lados abiertos
right
Tipo de fijación
Snap-on
Tipo de montaje
TS 35
Versión a prueba de explosivos
Yes

Conductors for clamping (additional connection)

Connection type, additional connection
SNAP IN

przewody zaciskane (złącze wymiarowane)

6 mm²
Anzahl Anschlüsse
4
Blade size
6 x 3,5 mm
Clamping range, min.
0,75 mm²
Connection cross-section, finely stranded, min.
0,75 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,75 mm²
Connection direction
top
Délka odizolování
12 mm
Gauge to IEC 60947-1
A4
Tube length for twin wire-end ferrule acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    0,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    0,75 mm²
  • Cross-section, max.:
    0,75 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    1 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    18 mm
  • Tube length, max.:
    18 mm
Tube length for wire-end ferrule with plastic collar acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
Tube length for wire-end ferrule without plastic collar acc. to cross-section
  • Cross-section, min.:
    0,5 mm²
  • Cross-section, max.:
    1 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    10 mm
  • Cross-section, min.:
    1,5 mm²
  • Cross-section, max.:
    2,5 mm²
  • Tube length, min.:
    10 mm
  • Tube length, max.:
    18 mm
  • Cross-section, min.:
    4 mm²
  • Cross-section, max.:
    4 mm²
  • Tube length, min.:
    12 mm
  • Tube length, max.:
    18 mm
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Typ připojení
SNAP IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,75 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,75 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,75 mm²

Märkdata enligt CSA

Certificate No. (CSA)
227442-80219640
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
20 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-2
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20

Rating data

Sección nominal
4 mm²
napięcie znamionowe do złącza sąsiedniego
1 000 V
Tensión nominal DC
1 000 V
Normas
IEC 60947-7-2
Volume resistance according to IEC 60947-7-x
1 mΩ
Znamionowe napięcie udarowe
8 kV
Névleges lökőfeszültség a szomszédos kapocs felé
8 kV
Puissance dissipée conformément à CEI 60947-7-x
0 W
Categoría de sobretensión
III
Grado de polución
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring min. (cURus)
20 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring min. (cURus)
20 AWG

Classifications

ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
