SAIEND 1/4 M8G 3P
SAIEND 1/4 M8G 3P

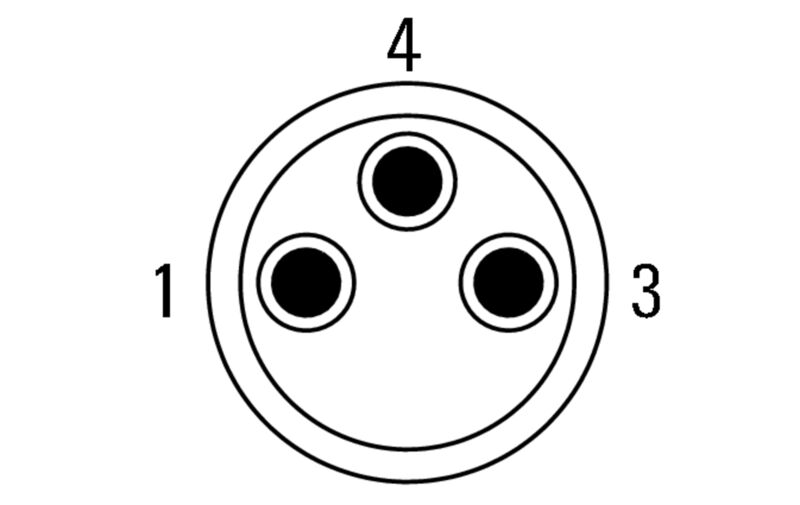

Dimensioned drawing
SAIEND 1/4 M8G 3P
SAIEND 1/4 M8G 3P

SAIEND 1/4 M8G 3P

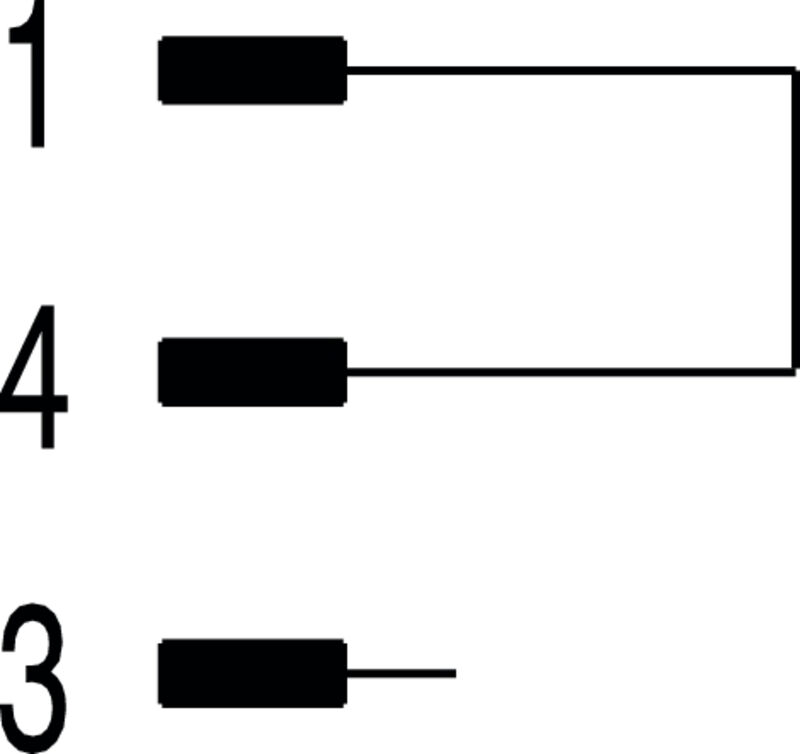

M8, LED: , LED initiator: , Wiring type:

Tuotteen tunnus 2662450000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 1 On lisävaruste 4 Samankaltaiset tuotteet 2
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General technical data Technical data cable Classifications Approvals

General ordering data

Version
M8, LED: , LED initiator: , Wiring type:
Order No.
2662450000
Type
SAIEND 1/4 M8G 3P
GTIN (EAN)
4050118677379
Qty.
1  items

Dimensions and weights

Net weight
4,4  g

Temperatures

Operating temperature
-25 - 85°C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

General technical data

Protection degree
IP67
Number of poles
3
Connection thread
M8
Pollution severity
3
Plugging cycles
≥ 100

Technical data cable

Number of poles
3

Classifications

ETIM 6.0
EC000448
ETIM 7.0
EC000448
ETIM 8.0
EC000448
ETIM 9.0
EC000448
ETIM 10.0
EC000448
ECLASS 9.0
19-07-04-03
ECLASS 9.1
19-17-01-90
ECLASS 10.0
19-07-04-03
ECLASS 11.0
19-07-04-03
ECLASS 12.0
19-07-04-03
ECLASS 13.0
19-07-04-03
ECLASS 14.0
19-07-04-03
ECLASS 15.0
19-07-04-03

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
