SAIL-M12BW-4-3L5.0U
SAIL-M12BW-4-3L5.0U
Dimensioned drawing
Socket angled
SAIL-M12BW-4-3L5.0U
Pole scheme
Socket
SAIL-M12BW-4-3L5.0U
Wiring diagram

SAIL-M12BW-4-3L5.0U

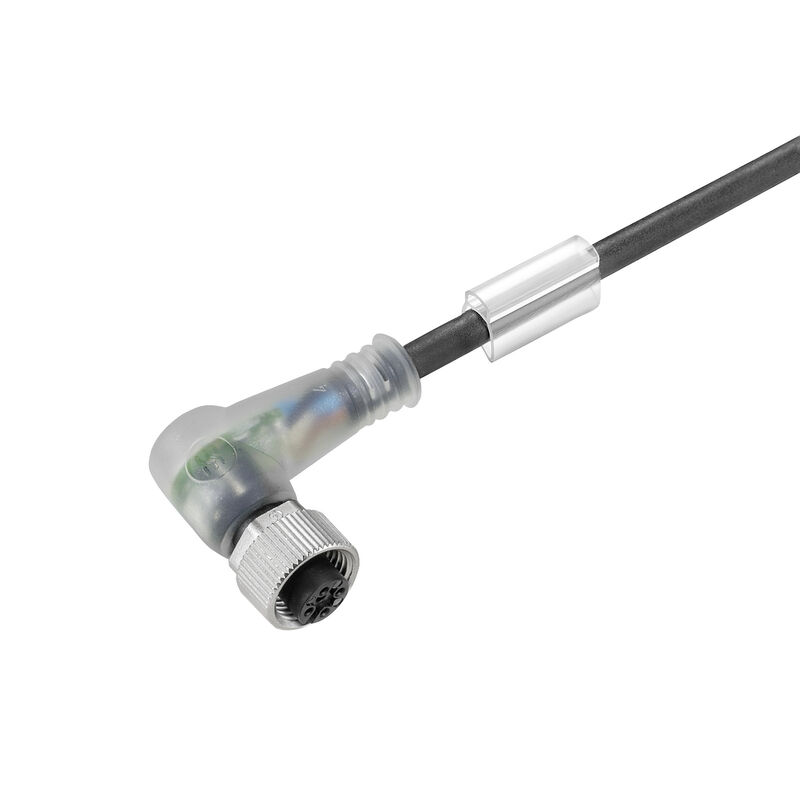

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 5 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1963940500
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 7 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 5 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Order No.
1963940500
Type
SAIL-M12BW-4-3L5.0U
GTIN (EAN)
4032248646555
Qty.
1 items

Dimensions and weights

Net weight
141,68 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Ciclos de flexión
12 Mio
Colour coding
brown
white
blue
black
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Kabellänge
5 m
Köpeny anyaga
PUR
Length of torsion
1 m
Lunghezza cavo configurabile
No
Mantelfarbe
black (similar to RAL 9005)
Number of poles
4
Number of wires
4
Outside diameter
4.1 mm + 0.15 mm
Resistance to oils
Yes
Resistant to welding beads
No
Résistance à la flamme
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sebesség
3,33 m/s
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No
Наружная оболочка в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
20549 (80 °C / 300 V)
무 LABS
Yes

General technical data

calibre de llave
12 mm
Coding
A-coded
Corriente nominal
4 A
Cycles d'enfichage
≥ 100
Degré de pollution
3
Degré de protection
IP65
IP66
IP67
IP68
when screwed in
LED
Yes
Material capotas
PUR
Material de contacto
CuZn35PB2
Menetes gyűrű anyaga
Diecast zinc
ponté
No
Resistencia del aislamiento
108 Ω
Rosca de conexión
M12
Superficie de contacto
Gold-plated
Temperature range of housing
-25…+85 °C
Tensión nominal
24 V
Tightening torque
M12: 0.8 - 1.2 Nm
Versión
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
24 V

General standards

Steckverbinder Norm
IEC 61076-2-101
Zertifikat-Nr. (CSA)
200039-2372994
Zertifikat-Nr. (UL)
E307231

Standards

Steckverbinder Norm
IEC 61076-2-101

Plug, left

Штекер левый
connector, M12, A-coded, Number of poles: 4, female contact, angled 0°, LED yellow and green, unshielded

Plug, right

Wtyk po prawej
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
