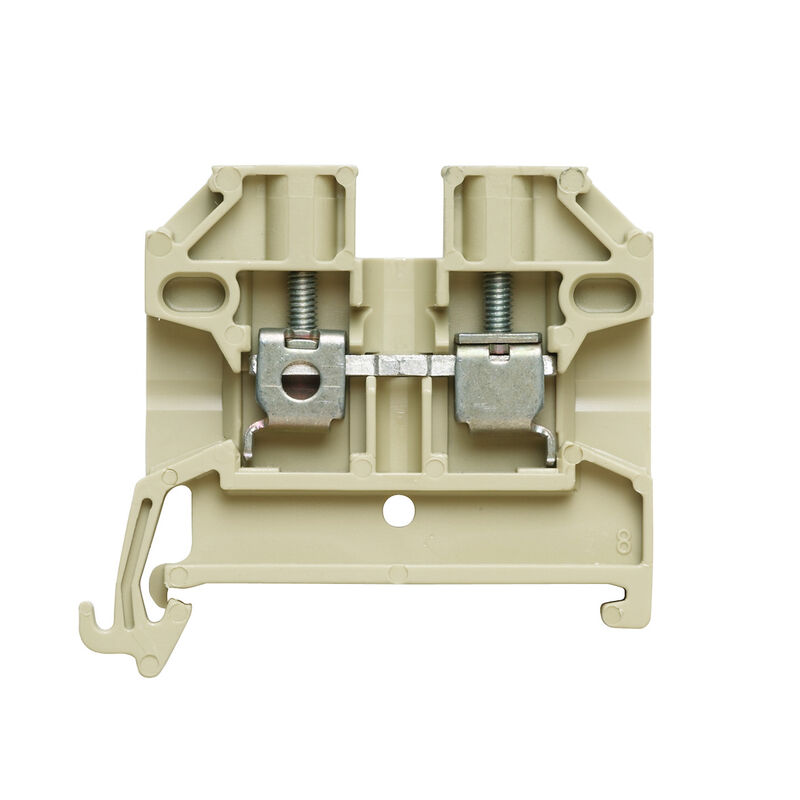

SAKD 2.5/35
Obrázek výrobku

SAKD 2.5/35

Feed-through terminal block, Screw connection, beige / yellow, 2.5 mm², 24 A, 500 V, Number of connections: 2

Product ID 0268860000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 22 Verwante producten 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Č. osvědčení (UR)
E60693

General ordering data

Verze
Feed-through terminal block, Screw connection, beige / yellow, 2.5 mm², 24 A, 500 V, Number of connections: 2
Číslo objednávky
0268860000
Typ
SAKD 2.5/35
GTIN (EAN)
4008190136284
Množství
100 items
Alternativní výrobek
[1023700000](~/p/1023700000)

Dimensions and weights

Hloubka
38 mm
Depth (inches)
1,496 inch
Výška
44 mm
Height (inches)
1,732 inch
Šířka
5 mm
Width (inches)
0,197 inch
Net weight
5,98 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Ambient temperature
-50 °C…55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
PA 66
Colour
beige / yellow
UL 94 flammability rating
V-2

System specifications

Version
Screw connection
for screwable cross-connection
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Průřez vodiče, pružný plus plastová manžeta DIN 46228/1, další připojení, max.
2,5 mm²
Typ připojení, další připojení
Screw connection

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,33 mm²
Clamping screw
M 2.5
Connection cross-section, finely stranded, min.
0,33 mm²
Ledararea, entrådig, max.
4 mm²
Měřidlo podle IEC 60947-1
A2
Number of connections
2
Průřez propojení AWG, max.
AWG 12
Sección de conexión del conductor AWG, min.
AWG 28
Sección del conductor, flexible con terminales tubulares DIN 46228/4, máx.
2,5 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/1, min.
0,33 mm²
Section de raccordement du conducteur, souple, max.
4 mm²
Section de raccordement du conducteur, souple, min.
0,33 mm²
Sezione di collegamento, semirigida, min.
0,33 mm²
Směr připojení
on side
Stripping length
10 mm
Terminali doppi, max.
1 mm²
Tightening torque, min.
0,4 Nm
Torque level with DMS electric screwdriver
1
Type of connection
Screw connection
Utahovací moment, max.
0,6 Nm
Vezeték csatlakozási keresztmetszet, többeres, névleges csatlakozás, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,33 mm²
Wire connection cross-section, solid core, min.
0,33 mm²
Кабельный наконечник для обжима двух проводов, мин.
0,5 mm²

CSA rating data

Certificate No. (CSA)
12400-115
Current size C (CSA)
20 A
Voltage size C (CSA)
300 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
22 AWG

General

Nosná lišta
TS 35
Návod k instalaci
Direct mounting
Průřez propojení AWG, max.
AWG 12
Průřez propojení AWG, min.
AWG 28
Standardy
IEC 60947-7-1

Rating data

Rated cross-section
2,5 mm²
Rated voltage
500 V
Rated DC voltage
500 V
Nominal current
24 A
Current at maximum wires
30 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
28 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
28 AWG
Current size C (UR)
20 A
Voltage size C (UR)
300 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
