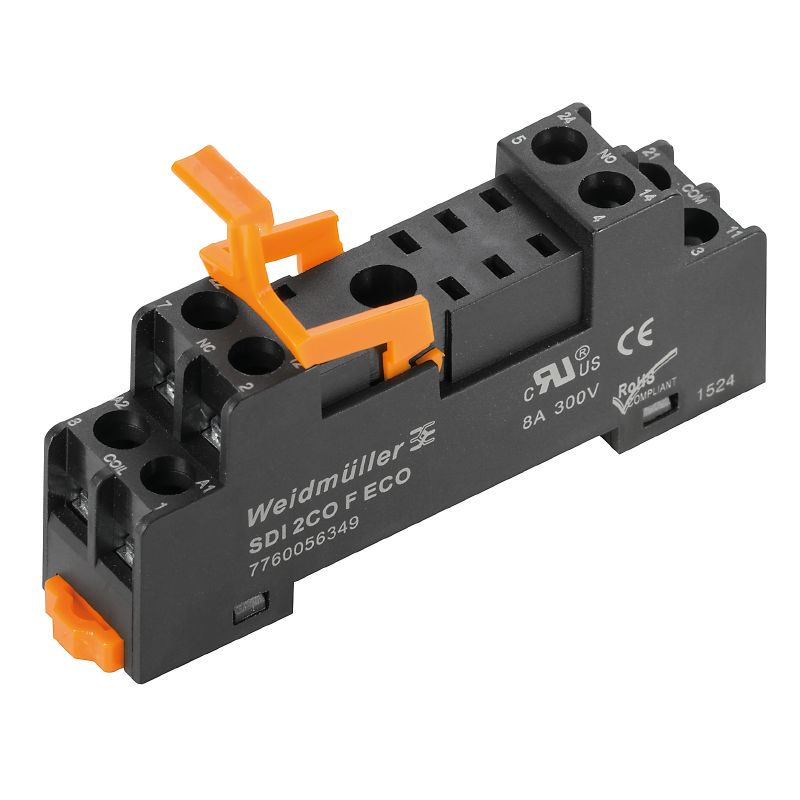

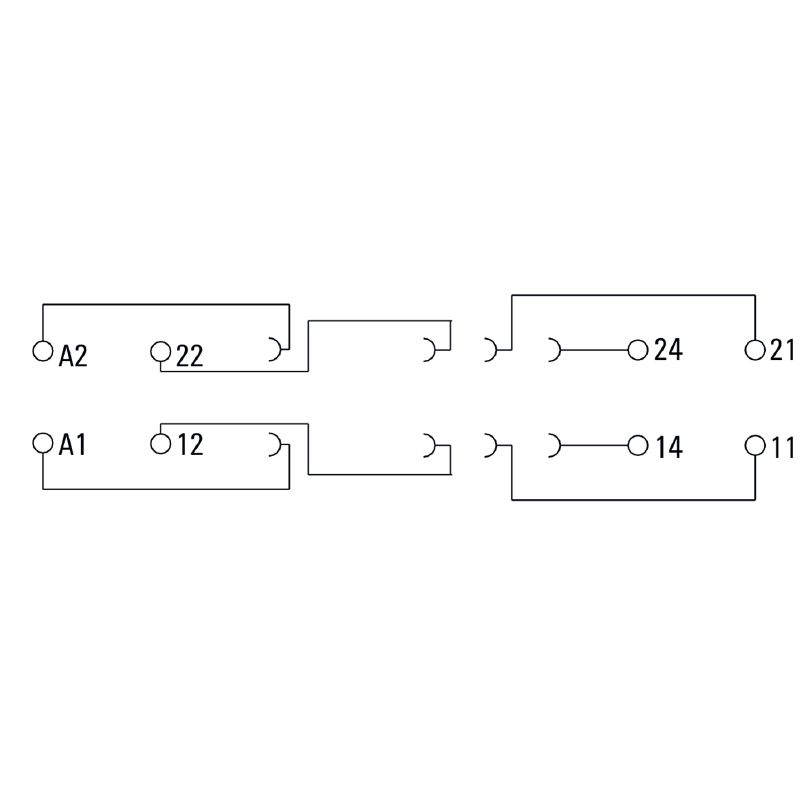

SDI 2CO F ECO

D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection

Produkt ID 7760056349

Egenskaber

General ordering data

Version	D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection
Order No.	7760056349
Type	SDI 2CO F ECO
GTIN (EAN)	6944169739965
Qty.	10 Styk

Dimensions and weights

Depth	29,2 mm
Depth (inches)	1,15 inch
Height	73,3 mm
Height (inches)	2,886 inch
Width	15,8 mm
Width (inches)	0,622 inch
Net weight	25 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...70 °C
Humidity	35...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant
REACH SVHC	No SVHC above 0.1 wt%

Load side

Rated switching voltage	250 V AC
Continuous current	8 A
Max. switching voltage, AC	250 V
Contact type	2 CO contact

General data

Version	flat design
Rail	TS 35
Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-2 Component: Mounting foot UL94 flammability rating: HB Component: Retaining clip UL94 flammability rating: HB

Insulation coordination

Rated voltage	250 V
Pollution severity	2
Surge voltage category	III
Insulating material group	IIIb
Clearance and creepage distances for control side - load side	≥ 3 mm
Dielectric strength for control side - load side	4 kV_eff / 1 Min.
Dielectric strength of neighbouring contacts	2.5 kV_eff / 1 Min.
Impulse withstand voltage	4.8 kV (1.2/50 µs)
Protection degree	IP20

Connection data

Wire connection method	Screw connection
Stripping length, rated connection	8 mm
Tightening torque, min.	0,5 Nm
Tightening torque, max.	0,8 Nm
Clamping range, rated connection	1,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	2,5 mm²
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, max.	2,5 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross section, finely stranded, max.	2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1,5 mm²
Wire connection	M3 forked cable lug (insulated)
Blade size	size PH1

Important note

Product information

For this socket, a cross connection is not available.

For this socket, markers are not available.
