SLD 5.08V/36/90 3.2 SN OR BX

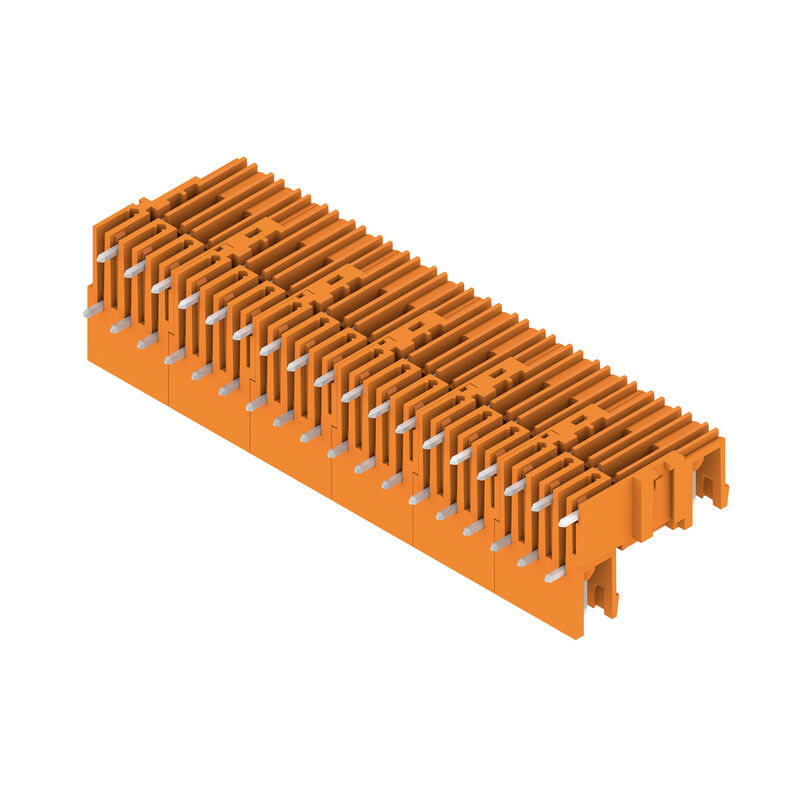

Product image
SLD 5.08V/36/90 3.2 SN OR BX

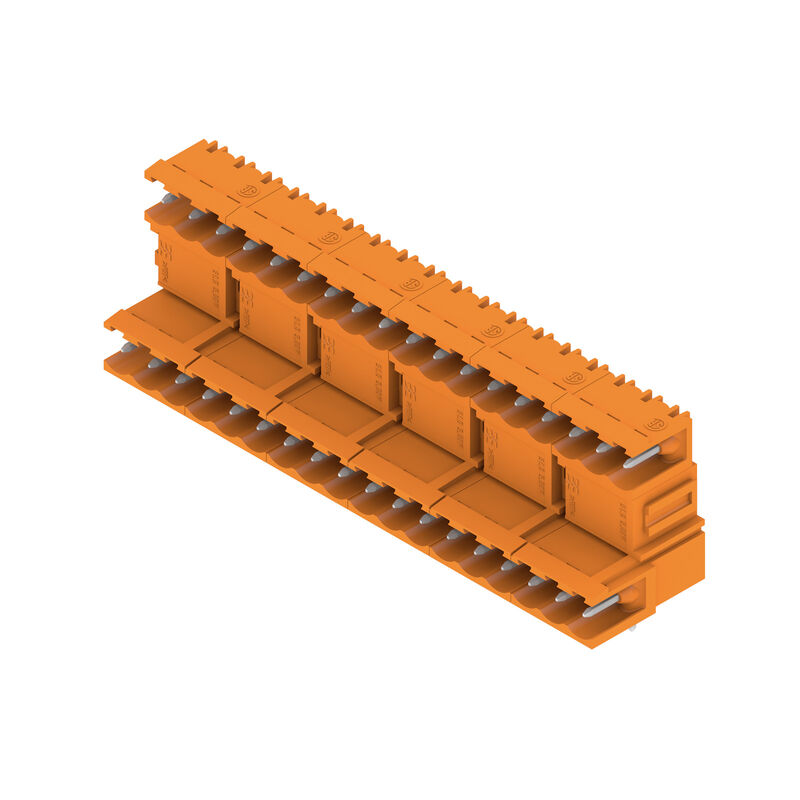

Product image
SLD 5.08V/36/90 3.2 SN OR BX
Dimensional drawing

SLD 5.08V/36/90 3.2 SN OR BX

PCB plug-in connector, male header, open side, THT solder connection, 5.08 mm, Number of poles: 36, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Produkt ID 1725330000
Download datablad Engineering-support Produktdownloads
Tilbehør 5 Er et modstykke til 11 Anvendte produkter 15
승인 General ordering data Dimensioni e pesi Conformità ambientale del prodotto Caractéristiques du système Données des matériaux Datos nominales conformes a IEC Données nominales selon CSA Rated data acc. to UL 1059 Imballaggio Ważna informacja Классификации

승인

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (UR)
E60693

General ordering data

Ausfuehrung
PCB plug-in connector, male header, open side, THT solder connection, 5.08 mm, Number of poles: 36, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Best.-Nr.
1725330000
Art
SLD 5.08V/36/90 3.2 SN OR BX
GTIN (EAN)
4032248060733
VPE
10 Styk
Product data
IEC: 320 V / 17 A
UL: 300 V / 10 A
Packaging
Box

Dimensioni e pesi

Tiefe
22 mm
Depth (inches)
0,866 inch
Höhe
28,7 mm
Высота (в дюймах)
1,13 inch
Высота, мин.
26,2 mm
Breite
93,98 mm
Width (inches)
3,7 inch
Net weight
29,832 g

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Caractéristiques du système

Produktfamilie
OMNIMATE Signal - sorozat BL/SL 5.08
Anschlussart
Board connection
Montage auf der Leiterplatte
THT solder connection
Raster in mm (P)
5,08 mm
Raster in Zoll (P)
0,2 "
Abgangswinkel
90°
Number of poles
36
Anzahl Lötstifte pro Pol
1
Lötstiftlänge (l)
3,2 mm
Lötstiftlänge-Toleranz
+0.1 / -0.3 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Lötstift-Abmessungen=d Toleranz
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
86,36 mm
L1 in inches
3,4 "
Number of rows
2
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging cycles
25

Données des matériaux

Insulating material
PBT
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Datos nominales conformes a IEC

testado según la norma
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17 A
Rated current, max. number of poles (Tu=20°C)
11 A
Rated current, min. number of poles (Tu=40°C)
9,5 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
250 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
400 V
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Données nominales selon CSA

Institut (CSA)
CSA
Zertifikat-Nr. (CSA)
200039-1121690
Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group D / CSA)
300 V
Nennstrom (Use group B / CSA)
10 A
Nennstrom (Use group D / CSA)
10 A
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (UR)
UR
Zertifikat-Nr. (UR)
E60693
Nennspannung (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Nennstrom (Use group D / UL 1059)
10 A
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Imballaggio

Verpackung
Box
VPE Länge
228 mm
VPE Breite
134 mm
VPE Höhe
46 mm

Ważna informacja

IPC conformity
Zgodność: produkty są projektowane, wytwarzane oraz dostarczane zgodnie z uznanymi normami międzynarodowymi, właściwości produktów są zgodne z gwarantowanymi w karcie katalogowej lub ich jakość wykonania jest zgodna z wymogami klasy 2 wg IPC-A-610. Na życzenie mogą być ocenione dalsze wymagania dotyczące produktów.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Классификации

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
