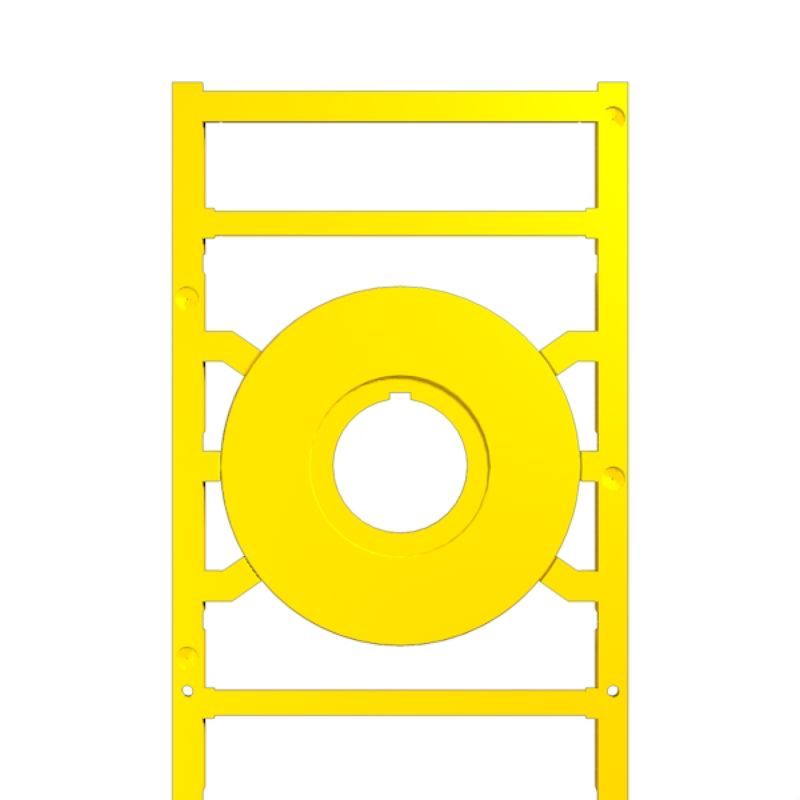

SwitchMark, Device markers, 60 x 60 mm, ø 60 - 22 mm, Siemens 3 SB, Eaton Moeller M22-PV, yellow

ID výrobku 1323750000
Datenblatt herunterladen Mühendislik desteği Ürün İndirmleri
İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Verze
SwitchMark, Device markers, 60 x 60 mm, ø 60 - 22 mm, Siemens 3 SB, Eaton Moeller M22-PV, yellow
Číslo objednávky
1323750000
Type
SM DIA 60-22 K MC NE GE
GTIN (EAN)
4050118127010
Qty.
10 adet

Dimensions and weights

Depth
1,2 mm
Depth (inches)
0,047 inch
Height
60 mm
Height (inches)
2,362 inch
Width
60 mm
Width (inches)
2,362 inch
Diameter
22 mm
Net weight
9,064 g

Temperatures

Operating temperature range
-40...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.101 kg CO2 eq.

General data

Alapanyag
Polyamide 66
Application/manufacturer
ø 60 - 22 mm
Siemens 3 SB
Eaton Moeller M22-PV
Campo delle temperature di impiego
-40...60 °C
Color
yellow
Halogène
No
Kompatybilna drukarka
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000)
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Nyomtatott karakterek
without
Operating temperature range, max.
60 °C
Operating temperature range, min.
-40 °C
UL 94 flammability rating
V-2
Version
Self-adhesive
Width
60 mm
Количество маркировочных элементов на комбинацию
1 MultiCard = Device markers

Device markers

Diameter
22 mm
Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
