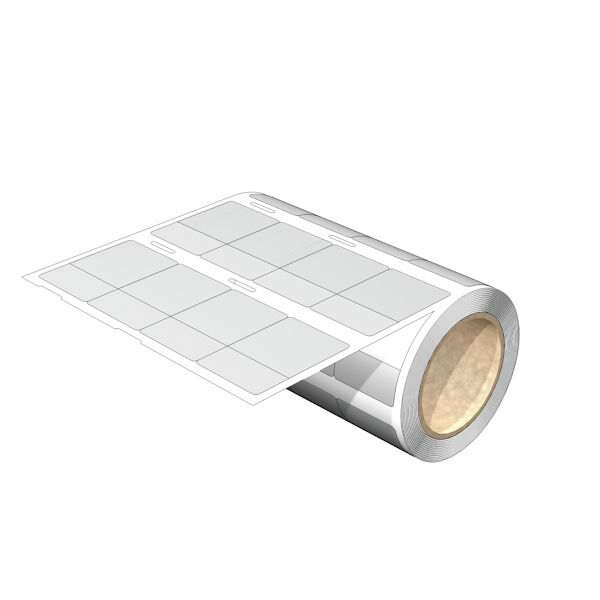

THM WO VIN 25.4/38.1 SP WS
THM WO VIN 25.4/38.1 SP WS

THM WO VIN 25.4/38.1 SP WS

Tämä tuote ei ole pian enää saatavana.

Viimeinen tilauspäivä: /Date(1786658400000)/

Vaihtoehtoinen tuote: 2657160000

THM, Leiter- und Kabelmarkierer, 4 - 8 mm, 25.4 x 38.1 mm, weiß

Tuotteen tunnus 2657170000
Lataa tietosivu Tuotelataukset Tekninen tuki
Lisävarusteet 1 Samankaltaiset tuotteet 25
Agréments Allgemeine Bestelldaten Dimensions and weights Températures Umweltanforderungen General data Conductor and cable markers Clasificaciones

Agréments

ROHS
Conforme

Allgemeine Bestelldaten

Version
THM, Leiter- und Kabelmarkierer, 4 - 8 mm, 25.4 x 38.1 mm, weiß
Order No.
2657170000
Type
THM WO VIN 25.4/38.1 SP WS
GTIN (EAN)
4050118675900
Qty.
400 Pièce

Dimensions and weights

Depth
0,07 mm
Tiefe (inch)
0,003 inch
Height
25,4 mm
Altura (pulgadas)
1 inch
Width
38,1 mm
Largeur (pouces)
1,5 inch
Nettó tömeg
0,18 g

Températures

Operating temperature range
-40...80 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

General data

Adhesive
Polyacrylate adhesive
Approval acc. to UL 969
No
Basic material
Vinyl film
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
Yes
Number of markers per combination
1 Label reel = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    Label reel
Number per roll
400
Operating temperature range
-40...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
−40 °C
Printed characters
without
Printing method
Thermal transfer
Type of printing
neutral
UL 94 flammability rating
V-0
Version
Samolepicí
Width
38,1 mm

Conductor and cable markers

Conductor cross-section, max.
50 mm²
Conductor O.D.
4 - 8 mm
Conductor O.D., max.
8 mm
Conductor O.D., min.
4 mm
Cross-section for connected wire
50 mm²
Halogen
Yes
Wire connection cross section AWG, max.
AWG 6
Wire connection cross section AWG, min.
AWG 10

Clasificaciones

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
