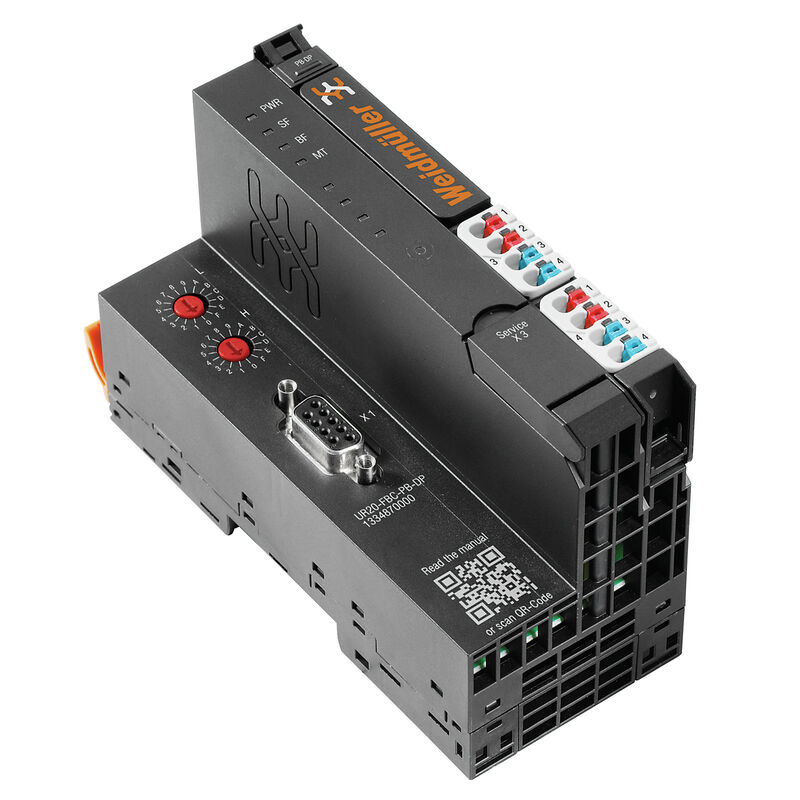

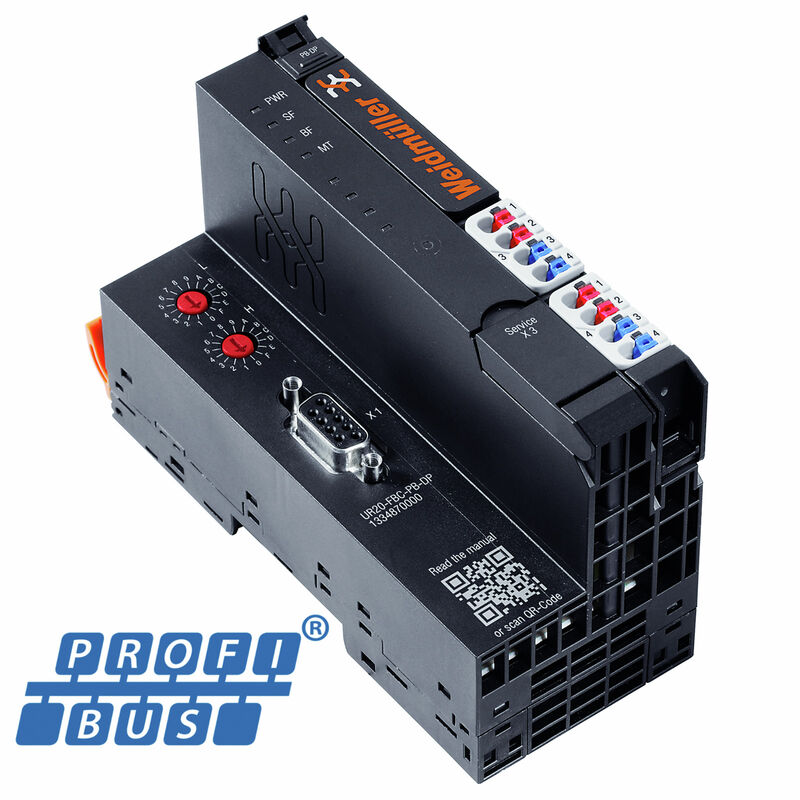

Product image
Similar to illustration
UR20-FBC-PB-DP
Block diagram
UR20-FBC-PB-DP
Connection diagram
UR20-FBC-PB-DP
Explanation of abbreviations

UR20-FBC-PB-DP

Dit product is binnenkort niet meer beschikbaar.

Alternative product: 2614380000

Remote I/O fieldbus coupler, IP20, PROFIBUS DP-V1

Product ID 1334870000
Gegevensblad downloaden Engineeringondersteuning Softwareondersteuning Productdownloads
Toebehoren 6 Verwante producten 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data General data Power supply System data Important note Classifications Tender specification sheets

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Version
Remote I/O fieldbus coupler, IP20, PROFIBUS DP-V1
Order No.
1334870000
Type
UR20-FBC-PB-DP
GTIN (EAN)
4050118138245
Qty.
1 items
Packaging
Cardboard box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1709161200000)/
Alternative product
[2614380000](~/p/2614380000)

Dimensions and weights

Depth
76 mm
Depth (inches)
2,992 inch
Height
120 mm
Height (inches)
4,724 inch
Width
52 mm
Width (inches)
2,047 inch
Mounting dimension - height
128 mm
Net weight
310 g

Temperatures

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C
Humidity
10…90 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8

Connection data

Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Гц ≤ F ≤ 8,4 Гц: амплитуда 3,5 мм в соответствии с IEC 60068-2-6
8,4 Гц ≤ F ≤ 150 Гц: ускорение 1 г в соответствии с IEC 60068-2-6

Power supply

Corriente de alimentación para IENTRADA (línea de corriente de entrada) , máx.
10 A
Current consumption from Isys, typ.
100 mA
Feed current for the system, max.
4 A
Ingressi e sistema della tensione di alimentazione
24 V DC +20 %/ -15 %
I의 공급 전류OUT (출력 전류 경로) , 최대
10 A
Supply voltage
24 V DC +20 %/ -15 %
via the system bus
Tápfeszültség kimenetekhez
24 V DC +20 %/ -15 %

System data

Configuration interface
Micro USB 2.0
Connection type
9-pole SUB-D socket (female)
Diagnostic data
244 Byte
Field bus protocol
PROFIBUS DP-V1
Galvanisk isolation
Yes, between field and system bus
max. number of modules
64
Parameter data
244 Byte
Process data
488 Byte
rodzaj modułu
Bus coupler
Transmission rate of field bus, max.
12 Mbit/s
Transmission speed of system bus, max.
48 Mbit/s
Интерфейс
u-remote system bus

Important note

Product information
The matching end brackets are included with the coupler.

Classifications

ETIM 8.0
EC001603
ETIM 9.0
EC001603
ETIM 10.0
EC001603
ECLASS 14.0
27-24-26-07
ECLASS 15.0
27-24-26-07

Tender specification sheets

Long specification
Profibus DP-V1 field bus coupler with integrated Sub-D connection for digital and analogue signals. The field bus coupler recognises the installed modules and uses them to generate a process image. The module sequence is not relevant. The field bus coupler is integrated into an application as a Profibus I/O device. Corresponding GSD files are available from www.Weidmueller.de. Connection system: PUSH-IN terminal Field bus transmission rate: 12 Mbit Transmission rate of the u-remote system bus : 48 Mbit Bus interface: Sub-D Voltage supply: 24 VDC +25% / –15% Feed-in current for system: 4 A Feed-in current for input modules: 10 A Feed-in current for output modules: 10 A Internal current consumption: 100 mA Process data: 488 bytes Parameter data: 244 bytes Diagnostic data: 244 bytes Number of I/O points: Number of I/O stations: Number of modules: Max. 64 Protocol: Profibus DP-V1 Start-up aid: web server Configuration interface: USB Protection degree: IP20 Mounting position: horizontal, vertical with derating - see manual Efficiency of the power supply unit: Potential separation: between system path, input and output path Current via power contacts: 10 A on input and on output paths Storage temperature: -40°C - +85°C Operating temperature: -20°C - +60°C Relative humidity: 10% - 90%, non-condensing Weight: 220 g Dimensions (WxHxD): 52 mm x 120 mm x 76 mm Approvals: UL, Ex, Brand: Weidmüller Type: UR20-FBC-PB-DP
