WDU 50N BL

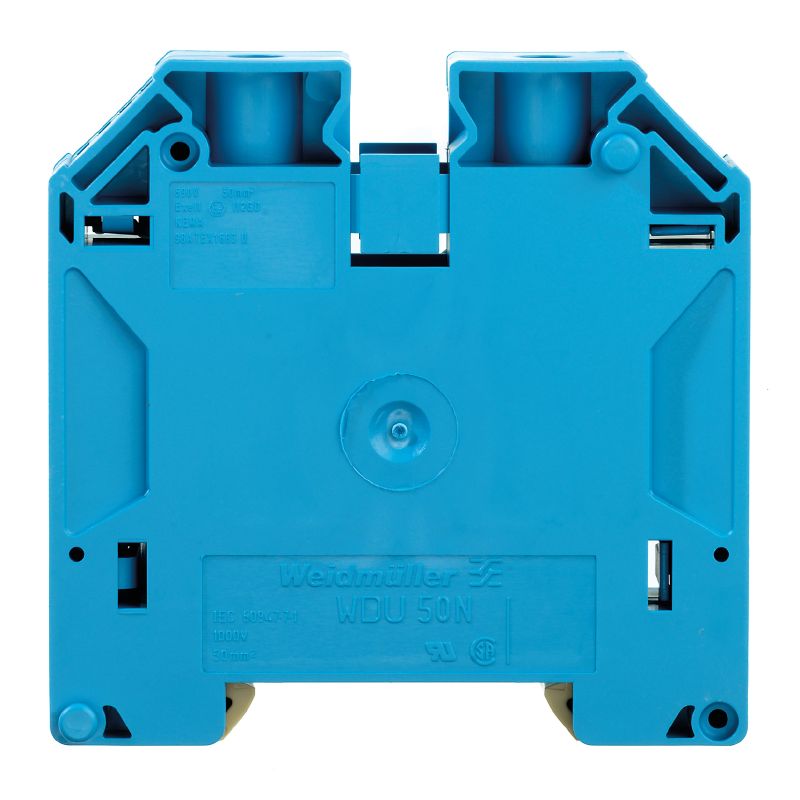

Product image
WDU 50N BL

WDU 50N BL

Feed-through terminal block, Screw connection, blue, 50 mm², 150 A, 1000 V, Number of connections: 2

Ürün No. 1820850000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 13 İlgili ürünler 113
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications 2 clampable conductors (H05V/H07V) with equal cross-section (rated connection) Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/9c9311f3-ecc1-4734-91a1-2f3495436c72/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (UR)
E60693
Tanúsítvány száma (cURusEX)
E184763

General ordering data

Versión
Feed-through terminal block, Screw connection, blue, 50 mm², 150 A, 1000 V, Number of connections: 2
Order No.
1820850000
Type
WDU 50N BL
GTIN (EAN)
4032248317806
Qté.
10 adet

Dimensions and weights

Profundidad
69,6 mm
Depth (inches)
2,74 inch
Depth including DIN rail
70,6 mm
Altura
70 mm
Height (inches)
2,756 inch
Largeur
18,5 mm
Width (inches)
0,728 inch
Peso netto
80,443 g

Temperatures

Température de stockage
-25 °C...55 °C
Température ambiante
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,79 kg CO2 eq.

Material data

Basic material
Wemid
Colour
blue
Brennbarkeitsklasse nach UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Tensión máx. (ATEX)
690 V
Current (ATEX)
126 A
Wire cross section max. (ATEX)
50 mm²
Max. voltage (IECEX)
690 V
Current (IECEX)
126 A
Wire cross section max. (IECEX)
50 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Versión
Screw connection
for screwable cross-connection
in closed state
Tapa final obligatoria
No
Número de potenciales
1
Número de pisos
1
Number of clamping points per level
2
Número de potenciales por piso
1
Pisos internos puenteados
No
PE connection
No
Mounting rail
TS 35
N-function
Yes
Funzione PE
No
PEN function
Yes

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Section de raccordement du conducteur, souple avec embout DIN 46228/1, 2 conducteurs de raccordement, max.
16 mm²
Sezione di collegamento cavo flessibile, 2 conduttori innestabili, min.
6 mm²
Sezione di collegamento cavo semirigido, 2 conduttori innestabili, max.
16 mm²
Sezione di collegamento cavo semirigido, 2 conduttori innestabili, min.
6 mm²
Sezione di collegamento cavo, flessibile, 2 conduttori innestabili, max.
16 mm²
Vezeték csatlakozási keresztmetszet, finomsodratú, érvéghüvelyekkel DIN 46228/1, 2 rögzíthető vezeték, min.
6 mm²

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Open sides
closed
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Blade size
S4 (DIN 6911)
Clamping range, max.
70 mm²
Clamping range, min.
10 mm²
Clamping screw
M 6
Connection cross-section, finely stranded, min.
10 mm²
Connection cross-section, stranded, max.
70 mm²
Connection cross-section, stranded, min.
10 mm²
Connection direction
on side
Gauge to IEC 60947-1
B10
Number of connections
2
Stripping length
24 mm
Tightening torque, max.
6 Nm
Tightening torque, min.
3,5 Nm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 0
Wire connection cross section AWG, min.
AWG 8
Wire connection cross section, finely stranded, max.
50 mm²
Wire connection cross section, finely stranded, min.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
50 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
50 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
10 mm²
Wire connection cross-section, solid core, max.
16 mm²
Wire connection cross-section, solid core, min.
10 mm²

CSA rating data

Certificate No. (CSA)
200039-1057876
Current size B (CSA)
150 A
Current size C (CSA)
150 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
0 AWG
Wire cross section min. (CSA)
8 AWG

Dimensions

TS 35 offset
40 mm

General

Installation advice
Direct mounting
Mounting rail
TS 35
Normy
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 0
Wire connection cross section AWG, min.
AWG 8

Rating data

Rated cross-section
50 mm²
Tensión nominal
1.000 V
Rated DC voltage
1.000 V
Nennstrom
150 A
Current at maximum wires
192 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,21 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
4,8 W
Verschmutzungsgrad
3
Überspannungskategorie
III

UL rating data

Conductor size Field wiring max. (UR)
0 AWG
Leitergr. Factory wiring max (UR)
0 AWG
Leitergr. Factory wiring min (UR)
10 AWG
Leitergr. Field wiring min (UR)
10 AWG
Spannung Gr C (UR)
600 V
Strom Gr C (UR)
150 A
Zertifikat-Nr. (UR)
E60693

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
