WTW WF8 2300

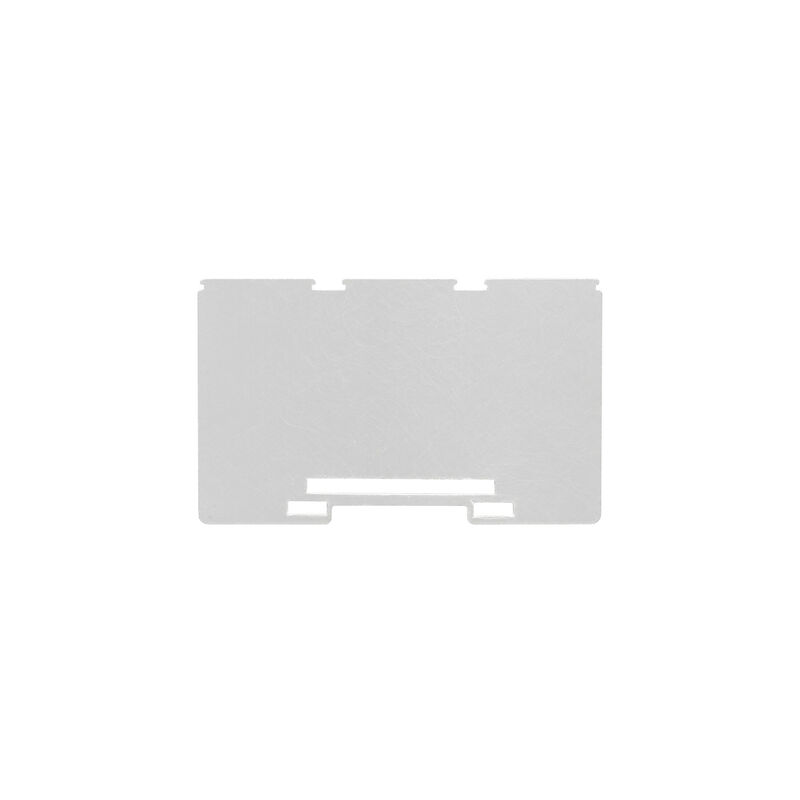

Product image

WTW WF8 2300

Bolt-type screw terminals, Partition plate, grey, 2 mm

Tuotteen tunnus 1780910000
Lataa tietosivu Tekninen tuki Tuotelataukset
On lisävaruste 4 Samankaltaiset tuotteet 416
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Informacje ogólne Classifications

Approvals

ROHS
Conform

General ordering data

Version
Bolt-type screw terminals, Partition plate, grey, 2 mm
Order No.
1780910000
Typ
WTW WF8 2300
GTIN (EAN)
4032248241132
Qty.
20 items

Dimensions and weights

Hloubka
66,95 mm
Depth (inches)
2,636 inch
Výška
109,8 mm
Height (inches)
4,323 inch
Šířka
2 mm
Width (inches)
0,079 inch
Mounting dimension - width
2 mm
Net weight
24,6 g

Temperatures

Skladovací teplota
-25 °C...55 °C
Temperatura ambiente
-60 °C…115 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
160 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Epoxy resin
Color
grey
UL 94 flammability rating
V-0

System specifications

Version
End and intermediate plate

Additional technical data

Installation advice
Direct mounting
Snap-on
No

Informacje ogólne

Installation advice
Непосредственный монтаж
Operating temperature range, max.
160 °C

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
