ZAP/TW 3 WS

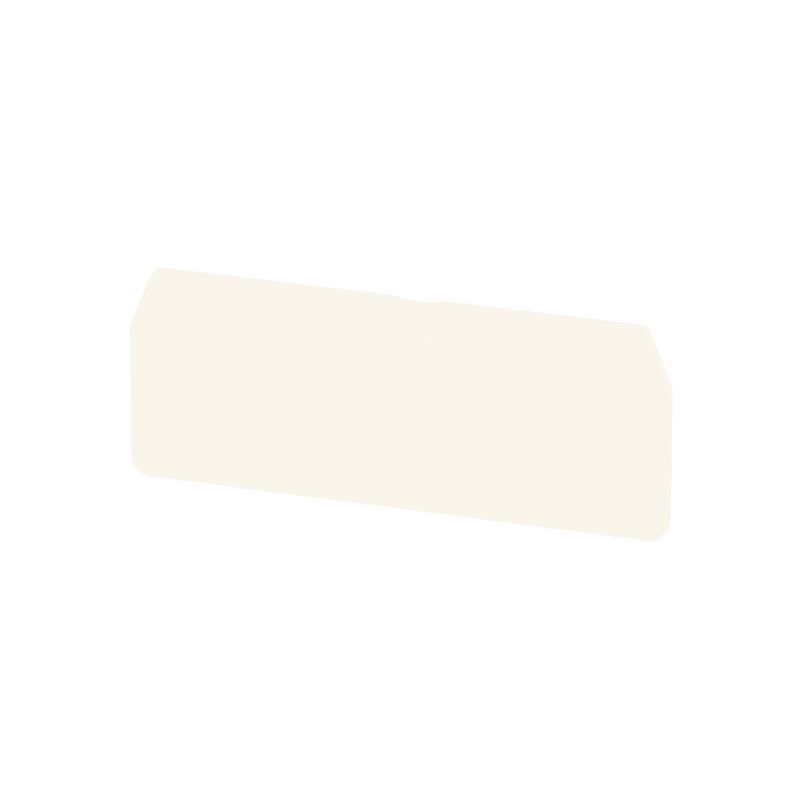

Product image

ZAP/TW 3 WS

This product will soon be unavailable.

Последняя дата заказа: 30.06.2026

Alternative product: 1608800000

Z-series, End plate, Partition plate

Item No. 1683880000
Download data sheet Engineering Support Product Downloads
Is accessory of 43 Related products 420
Homologaciones General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Product images Classifications

Homologaciones

ROHS
Conformidad

General ordering data

Version
Z-series, End plate, Partition plate
Order No.
1683880000
Type
ZAP/TW 3 WS
GTIN (EAN)
4008190477608
Кол.
50 Штука
Статус поставки
Эта артикул в перспективе будет недоступен.
Последняя дата заказа
30.06.2026
Alternative product
[1608800000](~/p/1608800000)

Dimensions and weights

Depth
30.5 mm
Depth (inches)
1.201 inch
Height
79.4 mm
Height (inches)
3.126 inch
Width
2 mm
Width (inches)
0.079 inch
Масса нетто
3.78 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Folyamatos üzemi hőmérséklet., min.
-50 °C
Temperatura d'esercizio continuo, max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Sin SVHC por encima del 0,1 % en peso
Product Carbon Footprint
  • Cradle to gate:
    0.039 kg CO2eq.

Material data

Basic material
Wemid
Colour
blanc
UL 94 flammability rating
V-0

System specifications

Version
End and intermediate plate

Additional technical data

Snap-on
Yes

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
