ZIA 1.5/4L-PE/8/KB
Product image

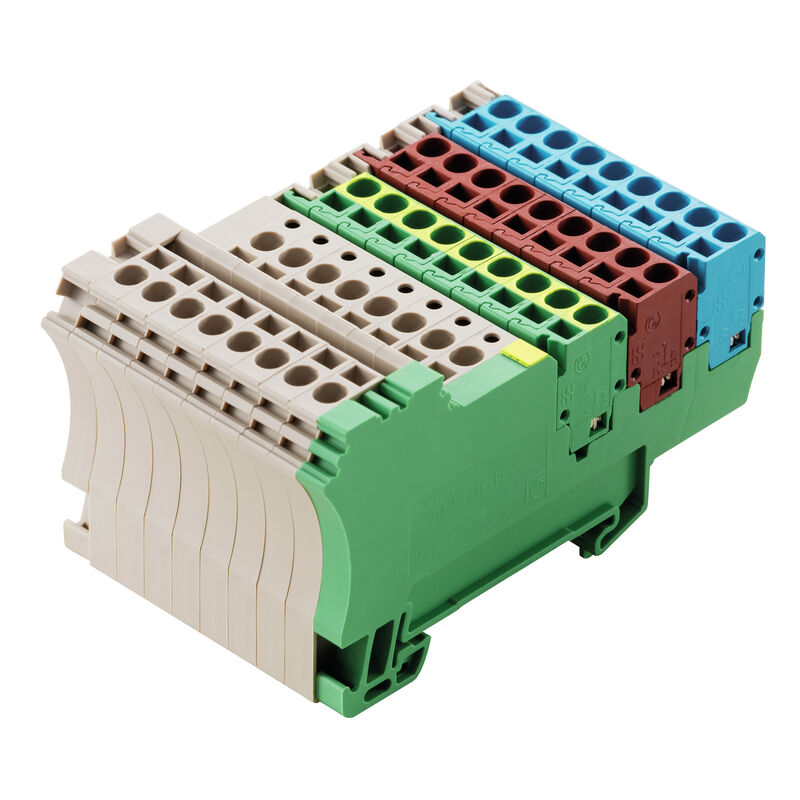

ZIA 1.5/4L-PE/8/KB

ZIA 1.5/4L-PE/8/KB

Initiator/actuator terminal, Tension-clamp connection, 1.5 mm², Number of poles: 8

Ürün No. 1692670000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 15 Münferit parçalar 5 İlgili ürünler 22
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Initiator/actuator terminal, Tension-clamp connection, 1.5 mm², Number of poles: 8
Order No.
1692670000
Type
ZIA 1.5/4L-PE/8/KB
GTIN (EAN)
4008190870386
Množství
5 adet

Dimensions and weights

Depth
45,5 mm
Depth (inches)
1,791 inch
Depth including DIN rail
46 mm
Height
81,5 mm
Height (inches)
3,209 inch
Width
51 mm
Width (inches)
2,008 inch
Net weight
105,6 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Temperatura ambiente
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

End cover plate required
No
Number of potentials
8
Number of levels
2
Number of clamping points per level
1
Number of potentials per tier
4
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35

Additional technical data

Explosion-tested version
No
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (rated connection)

Abisolierlänge
7 mm
Anschlussart 2
Tension-clamp connection
Anschlussrichtung
top
Blade size
0.6 x 3.5 mm
Clamping range, max.
2,5 mm²
Clamping range, min.
0,13 mm²
Connection cross-section, stranded, min.
0,13 mm²
Embouts doubles, min.
0,5 mm²
Lehrdorn nach 60 947-1
A1
Leiteranschlussquerschnitt AWG, max.
AWG 14
Number of connections
43
Sección de conexión del conductor, flexible, mín.
0,13 mm²
Sección del conductor, semirrígido, máx.
1,5 mm²
Section de raccordement du conducteur, rigide, max.
2,5 mm²
Section de raccordement du conducteur, rigide, min.
0,13 mm²
Section de raccordement, souple, min.
0,13 mm²
Terminal tubular doble, max.
0,75 mm²
Type of connection
Tension-clamp connection
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²

CSA rating data

Certificat Nº (CSA)
200039-1068678
Corrente Gr B (CSA)
10 A
Section max. du conducteur (CSA)
14 AWG
Tension Gr B (CSA)
300 V
Tensione Gr D (CSA)
300 V
Wire cross section min. (CSA)
26 AWG
전류 크기 D(CSA)
10 A

General

Leiteranschlussquerschnitt AWG, max.
AWG 14
Leiteranschlussquerschnitt AWG, min.
AWG 26
Normen
In accordance with IEC 60947-7-1
IEC 60947-7-2
Polzahl
8
Tragschiene
TS 35

Rating data

Rated cross-section
1,5 mm²
Rated voltage
250 V
Rated DC voltage
250 V
Nominal current
17,5 A
Current at maximum wires
17,5 A
Standards
In accordance with IEC 60947-7-1
IEC 60947-7-2
Volume resistance according to IEC 60947-7-x
1,83 mΩ
Rated impulse withstand voltage
4 kV
Power loss in accordance with IEC 60947-7-x
0,56 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Field wiring max. (UR)
14 AWG
Conductor size Field wiring min. (UR)
26 AWG
Ledarstorlek Factory wiring min (UR)
26 AWG
Prąd Gr D (UR)
10 A
Voltage size D (UR)
300 V
Разм. провода Заводская электропроводка, макс. (UR)
14 AWG

Classifications

ETIM 8.0
EC000900
ETIM 9.0
EC000900
ETIM 10.0
EC000900
ECLASS 14.0
27-25-01-12
ECLASS 15.0
27-25-01-12
