AP SAKH6/10 EP/SW

AP SAKH6/10 EP/SW

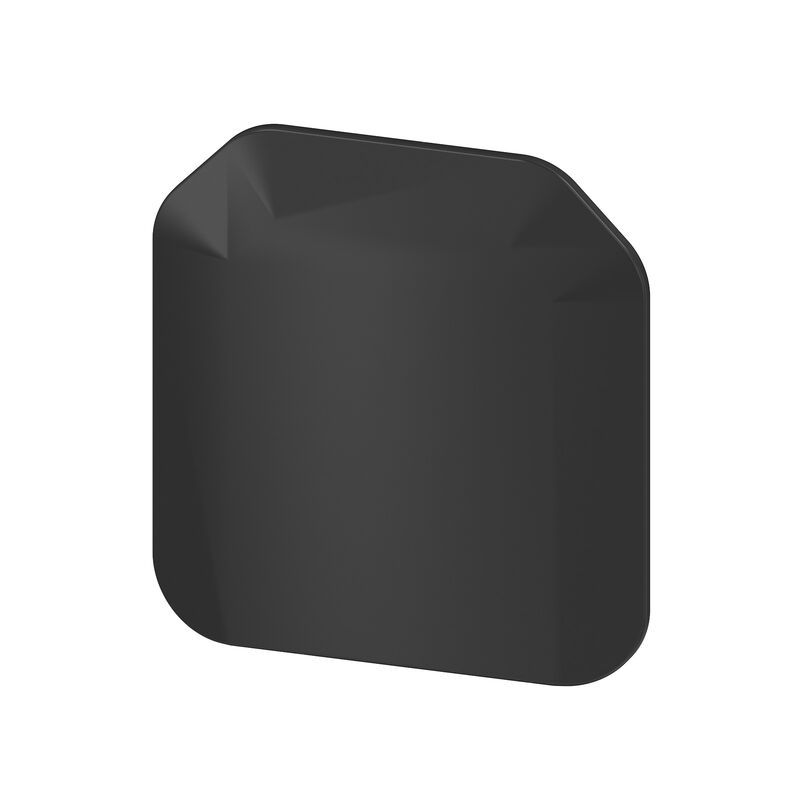

End plate for terminals, black, Height: 58 mm, Width: 4 mm, V-0, Epoxy resin, EP, Snap-on: Yes

Produkt-ID 0131700000
Ladda ner datablad Supporto ingegneristico Download dei prodotti
Ist Zubehör von 2 Verwandte Artikel 417
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications weitere technische Daten General Product images Classifications

Approvals

ROHS
Conform

General ordering data

Utförande
End plate for terminals, black, Height: 58 mm, Width: 4 mm, V-0, Epoxy resin, EP, Snap-on: Yes
Art.nr.
0131700000
Typ
AP SAKH6/10 EP/SW
GTIN (EAN)
4008190174880
Qty.
20 items

Dimensions and weights

Djup
61 mm
Depth (inches)
2,402 inch
Höjd
58 mm
Bygghöjd (tum)
2,283 inch
Bredd
4 mm
Width (inches)
0,157 inch
Net weight
21,8 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Ambient temperature
-60 °C…115 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
160 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Grundläggande material
Epoxy resin, EP
Colour
black
UL 94 flammability rating
V-0

System specifications

Utförande
End plate

weitere technische Daten

Návod k instalaci
Direct mounting
rastbar
Yes

General

Monteringsanvisning
Direktmontage

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
