Eigenschappen
| Version | PCB plug-in connector, Accessories, Coding element, black, Number of poles: 1 |
| Order No. | 1849740000 |

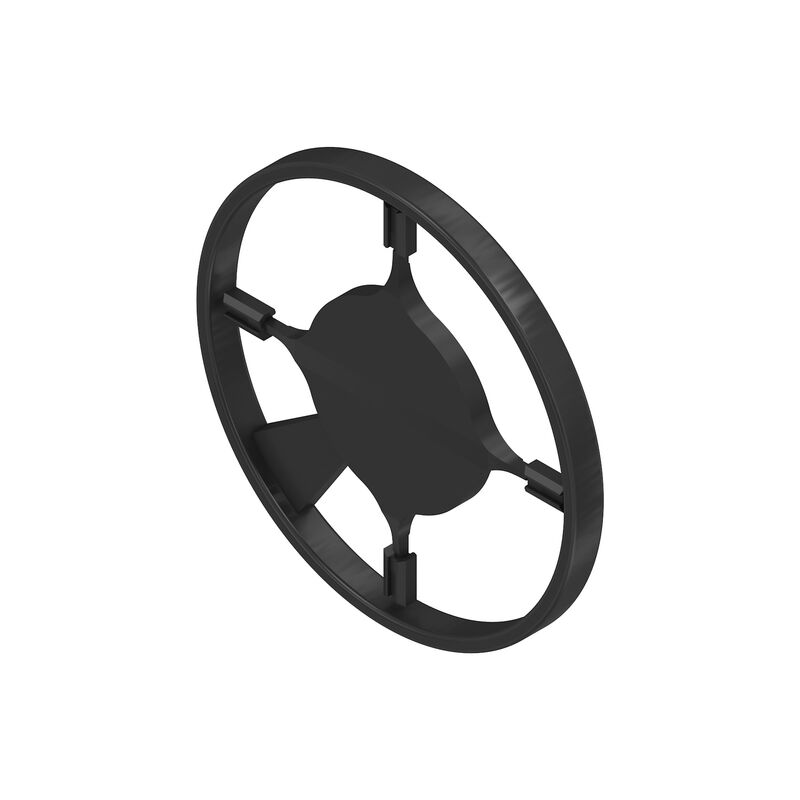

| Type | B2L/S2L 3.50 KO BK BX |
| GTIN (EAN) | 4032248378203 |
| Qty. | 100 items |
| Product data | |
| Packaging | Box |
| Net weight | 0,9 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Insulating material | PBT GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 100 °C |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Packaging | Box |
| VPE length | 168 mm |
| VPE width | 98 mm |
| VPE height | 43 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_100119) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1849740000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL BUILDING SAFETY EN](http://download.weidmueller.com/asset/download/file/38207) [FL APPL LED LIGHTING EN](http://download.weidmueller.com/asset/download/file/38275) [FL INDUSTR.CONTROLS EN](http://download.weidmueller.com/asset/download/file/38285) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-04-92 |
| ECLASS 9.1 | 27-44-04-92 |
| ECLASS 10.0 | 27-44-04-92 |
| ECLASS 11.0 | 27-46-04-01 |
| ECLASS 12.0 | 27-46-04-01 |
| ECLASS 13.0 | 27-46-04-01 |
| ECLASS 14.0 | 27-46-04-01 |
| ROHS | Conform |
