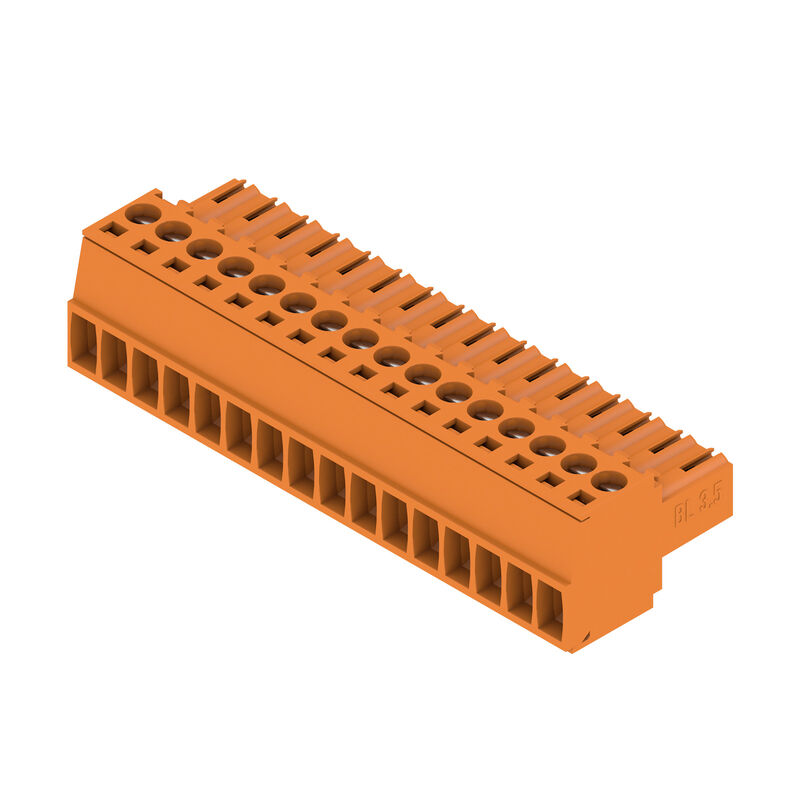

BL 3.50/16/180 SN OR BX
Product image
BL 3.50/16/180 SN OR BX
Product image
BL 3.50/16/180 SN OR BX
Dimensional drawing
BL 3.50/16/180 SN OR BX
Graph
BL 3.50/16/180 SN OR BX
Graph
BL 3.50/16/180 SN OR BX
Graph
BL 3.50/16/180 SN OR BX
Graph

BL 3.50/16/180 SN OR BX

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 16, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box

Ürün No. 1597500000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 7 Karşı parçalar 7 İlgili ürünler 41
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (UR)
E60693

General ordering data

Ausfuehrung
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 16, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box
Order No.
1597500000
Type
BL 3.50/16/180 SN OR BX
GTIN (EAN)
4008190025786
Qté.
30 adet
Product data
IEC: 320 V / 17 A / 0.2 - 1.5 mm²
UL: 300 V / 10 A / AWG 28 - AWG 14
Packaging
Box

Dimensions and weights

Tiefe
18,5 mm
Depth (inches)
0,728 inch
Height
13 mm
Height (inches)
0,512 inch
Width
56 mm
Width (inches)
2,205 inch
Peso neto
14,122 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Empreinte carbone du produit
  • Cradle to gate:
    0.299 kg CO2 eq.

System Parameters

Product family
OMNIMATE Signal - series BL/SL 3.50
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
3,5 mm
Rozteč v palcích (P)
0,138 "
Směr výstupu vodiče
180°
Number of poles
16
L1 v mm
52,5 mm
L1 in inches
2,067 "
Počet řad
1
Pin series quantity
1
Rated cross-section
1,5 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Volume resistance
≤5 mΩ
Can be coded
Yes
Avisoleringslängd
6 mm
Clamping screw
M 2
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5 N
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm

Material data

Matériau isolant
PBT
Couleur
orange
Tableau des couleurs (similaire)
RAL 2000
Groupe de matériaux isolants
IIIa
Indice de Poursuite Comparatif (CTI)
≥ 200
UL 94 flammability rating
V-0
Matériau des contacts
Cu-alloy
Surface du contact
tinned
Structure en couches du contact mâle
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Plage de serrage, min.
0,08 mm²
Sección de embornado, máx.
1,5 mm²
Section de raccordement du conducteur, AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Rigide, min. H05(07) V-U
0,2 mm²
Rigide, max. H05(07) V-U
1,5 mm²
souple, min. H05(07) V-K
0,2 mm²
souple, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
avec embout isolé DIN 46 228/4, max.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
avec embout selon DIN 46 228/1, max.
1,5 mm²
Passtift enligt EN 60999 a x b; ø
2.4 mm x 1.5 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Texte de réference
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Courant nominal, nombre de pôles min. (Tu = 20 °C)
17 A
Courant nominal, nombre de pôles max. (Tu = 20 °C)
12 A
Courant nominal, nombre de pôles min. (Tu = 40 °C)
14,5 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
10 A
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
320 V
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
160 V
Névleges feszültség a III/3 túlfeszültség osztályhoz / szennyezés mértékéhez
160 V
Tension de choc nominale pour classe de surtension/Degré de pollution II/2
2,5 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
2,5 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/3
2,5 kV
Tenue aux courants de faible durée
3 x 1s with 100 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
154685-1318353
Rated voltage (Use group B / CSA)
300 V
Jmenovité napětí (aplikační skupina D / CSA)
300 V
Jmenovitý proud (aplikační skupina B / CSA)
10 A
Jmenovitý proud (aplikační skupina D / CSA)
10 A
Průřez vodiče AWG, min.
AWG 28
Průřez vodiče AWG, max.
AWG 14
Odkaz na hodnoty pro schválení
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Odkaz na hodnoty pro schválení
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
352 mm
VPE width
136 mm
Výška VPE
24 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, approval marking SEV, approval marking CSA
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN IEC 60512 part 7 section 5 / 05.94
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.99
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test poškození a náhodného uvolnění vodičů
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed
Test vytažení
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥5 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      2 × AWG 24/1
    • Type of conductor and conductor cross-section:
      2 × AWG 24/19 with wire end ferrule
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U1.5
    • Type of conductor and conductor cross-section:
      H05V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/7
  • Evaluation:
    passed

Important note

Conformité IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Max. outer diameter of the conductor: 2.9 mm
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
