Eigenschappen
| Version | CableLine, Mounting mandrel |
| Order No. | 1208940000 |

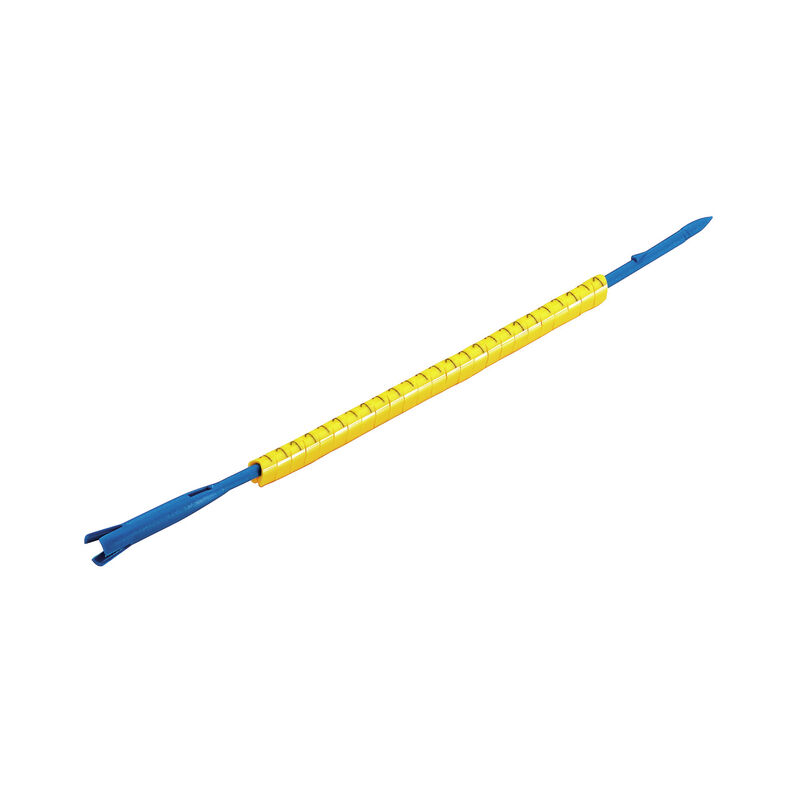

| Type | CLI R 1-12 RT TRIP |
| GTIN (EAN) | 4032248990337 |
| Qty. | 10 items |
| Net weight | 1,9 g |
| Operating temperature range | -30...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | To customer specification |
| Colour of printing | black |
| Halogen | Yes |
| Material | PVC, soft, without Cadmium |
| Number per mandrel | 5 |
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Orientation of print | horizontal |
| Printed characters | Mixed characters |
| Printing method | hot-embossing |
| Type of printing | To customer specification |
| UL 94 flammability rating | V-0 |
| Version | MultiPack |
| Conductor cross-section, max. | 4 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Conductor O.D. | 2.5 - 5 mm |
| Conductor O.D., max. | 5 mm |
| Conductor O.D., min. | 2,5 mm |
| Cross-section for connected wire | 1.5 - 4 mm² |
| Halogen | Yes |
| Product Change Notification |
[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687)
[PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
