Ominaisuudet
| Version | HDC enclosures, Size: 3, Protection degree: IP66 (in plugged condition), IP67 (in plugged condition), Cable entry from top, Screw, , Size of cable entries: M 25 |
| Order No. | 2716700000 |
| Type | HDC 06B TOS 1M25 WMP |
| GTIN (EAN) | 4050118803280 |
| Qty. | 1 items |

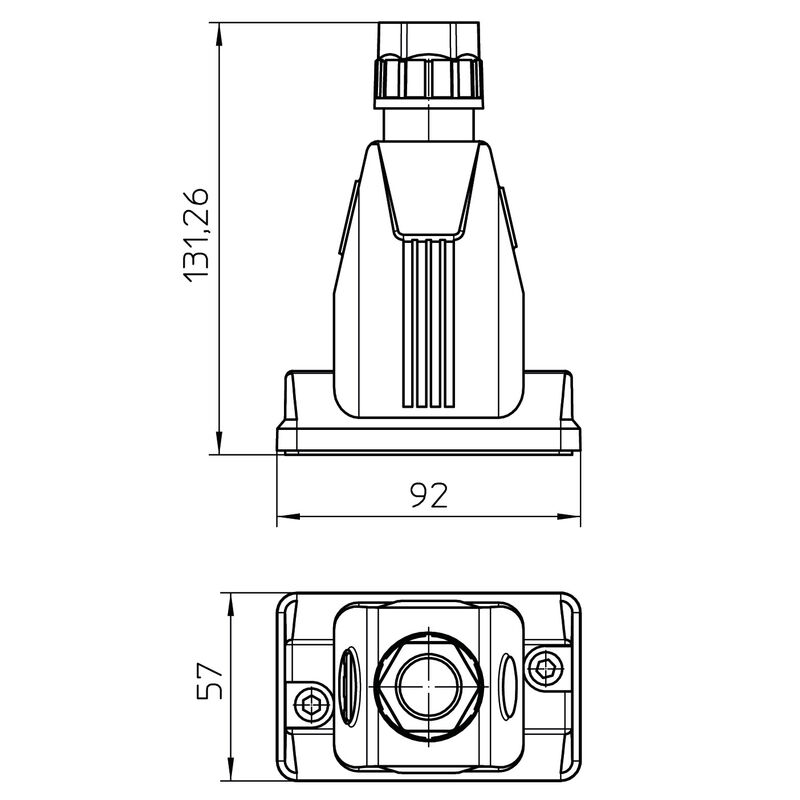

| Height | 131 mm |
| Height (inches) | 5,157 inch |
| Net weight | 122 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Cable diameter, min. | 9 mm |
| Cable diameter, max. | 17 mm |
| AF size | 26 mm |
| Size of cable entries | M 25 |
| Cable entry | w. cable glands |
| Height of housing B | 131 mm |
| EMC housings | No |
| Housing main material | PA |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree |
IP66 (in plugged condition)
IP67 (in plugged condition) |
| Tightening torque | 3 Nm |
| UL 94 flammability rating | V-0 |
| BG | 3 |
| Cable entry | w. cable glands |
| Colour (RAL) | RAL 9011 |
| Design of housing | Cable entry from top |
| Design of locking system | Screw |
| Number of cable entry on top | 1 |
| Number of cable glands | 1 |
| Sealing | NBR |
| Size | 3 |
| Size of cable entries | M 25 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 3 Nm |
| Top part/bottom part/lid | upper part |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_151612) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2716700000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| ROHS | Conform |
