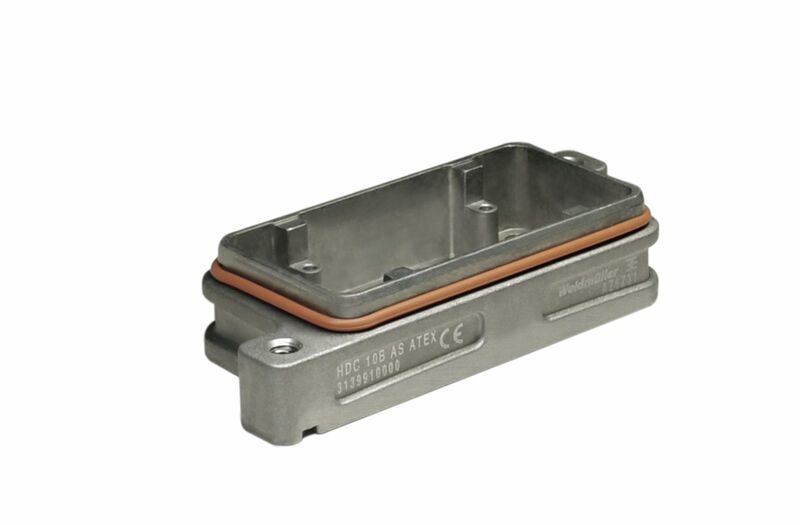

HDC 10B AS ATEX
HDC 10B AS ATEX

HDC 10B AS ATEX

HDC enclosures, Installation size: 4, Protection degree: IP55, Bulkhead housing, Clamping yoke connection, Standard

Produkt ID 3139910000
Download datablad Wsparcie inżynieryjne Pobieranie produktów
Tilbehør 3 Er tilbehør til 3 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Rating data IECEx/ATEX Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)

General ordering data

Version
HDC enclosures, Installation size: 4, Protection degree: IP55, Bulkhead housing, Clamping yoke connection, Standard
Order No.
3139910000
Tipo
HDC 10B AS ATEX
GTIN (EAN)
4099987382274
Qty.
1 Stück

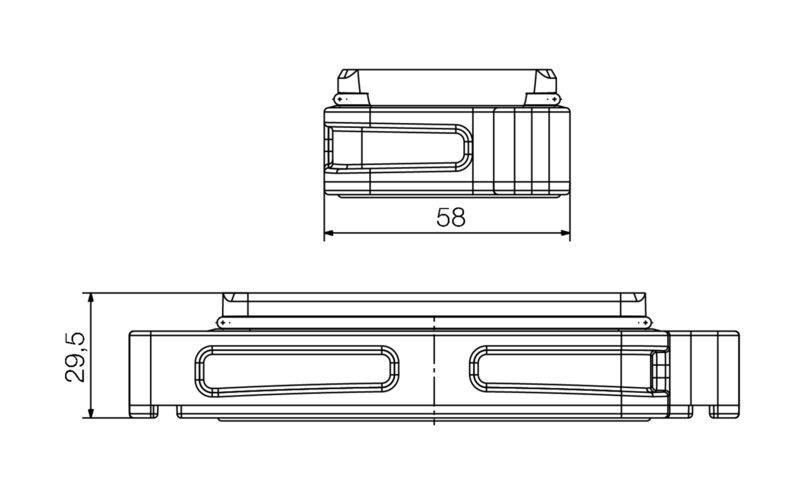

Dimensions and weights

Depth
144 mm
Depth (inches)
5,669 inch
Height
29,5 mm
Height (inches)
1,161 inch
Szélesség
48 mm
Šířka (v palcích)
1,89 inch
Mounting dimension - height
32 mm
Mounting dimension - width
83 mm
Peso neto
170 g

Temperatures

Ambient temperature
-20 °C…40 °C
Limit temperature
-20 °C ... 80 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
Ne SVHC nad 0,1 wt%

Dimensions

Breite
48 mm

General data

BG
4
Colour
grey
Design of housing
Bulkhead housing
Installation size
4
Surface finish
Powder coating
Type
Bulkhead (feed-through)
UL 94 flammability rating
V-0
Protection degree
IP55

Rating data IECEx/ATEX

Tanúsítvány száma (ATEX)
IECEXTUR24.0077X
Tanúsítvány száma (IECEX)
TUEV24ATEX9197X

Version

BG
4
Instalační velikost
4
Oberfläche
Powder coating

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
