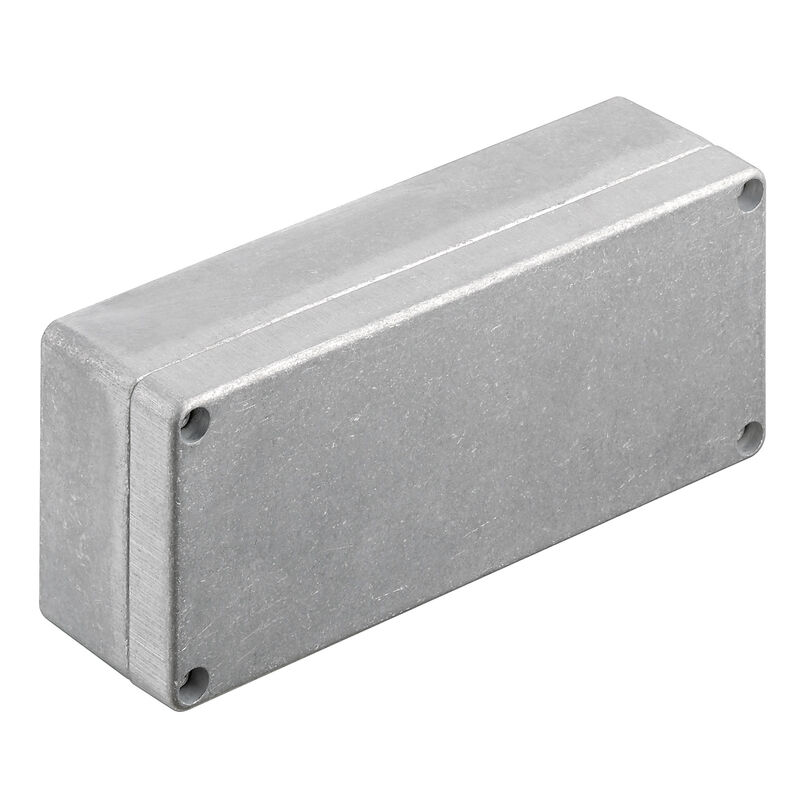

KLIPPON K3 UNPAINTED (70X165X45)
KLIPPON K3 UNPAINTED (70X165X45)

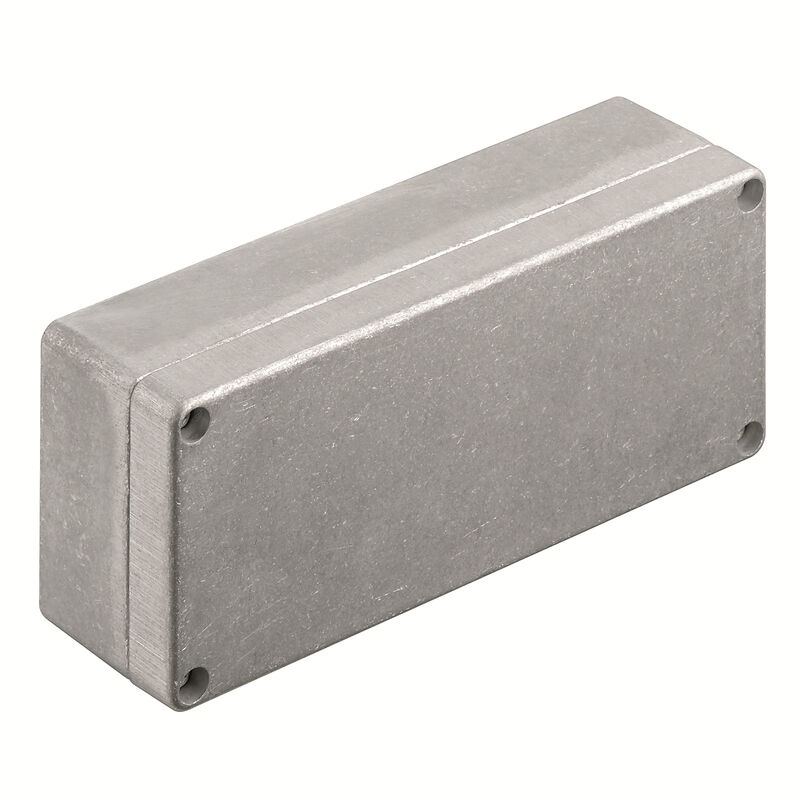

Similar to illustration
KLIPPON K3 UNPAINTED (70X165X45)

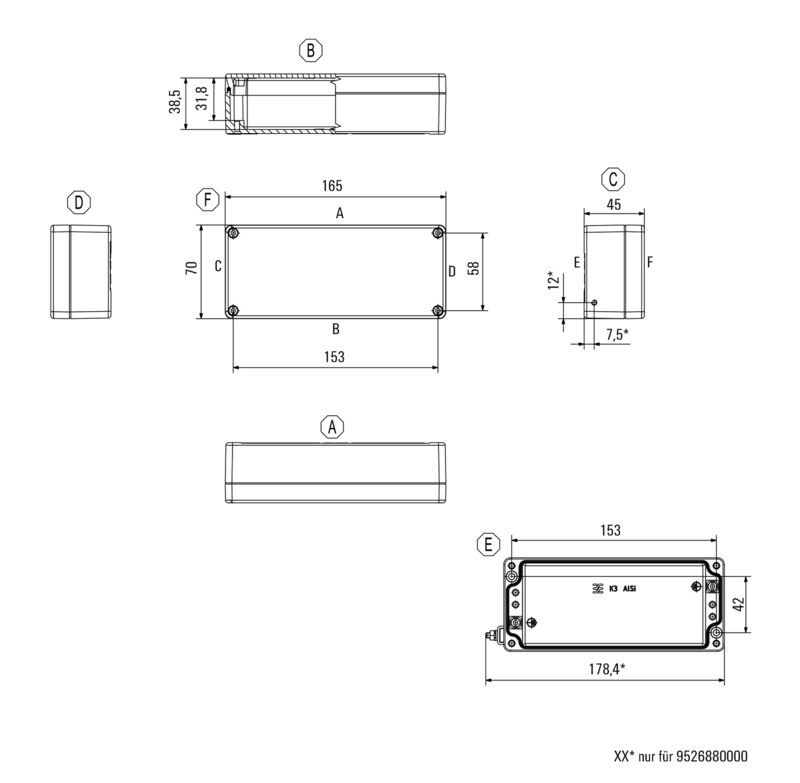

Dimensioned drawing

KLIPPON K3 UNPAINTED (70X165X45)

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 165 mm, Depth: 45 mm, Basic material: Aluminium AlSi12, untreated, silver

Tuotteen tunnus 0342200000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Numery certyfikatów obudowy General information horizontal assembly vertical assembly Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E197061

General ordering data

Version
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 165 mm, Depth: 45 mm, Basic material: Aluminium AlSi12, untreated, silver
Order No.
0342200000
Type
KLIPPON K3
GTIN (EAN)
4008190116521
Qty.
5 items

Dimensions and weights

Depth
45 mm
Depth (inches)
1,772 inch
Height
70 mm
Height (inches)
2,756 inch
Width
165 mm
Szélesség (coll)
6,496 inch
Mounting dimension - height
42 mm
마운팅 치수 - 너비
153 mm
Net weight
442,6 g

Temperatures

Operating temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
1
M16
1

Cable glands, right

M12
1
M16
1

Cable glands, top/bottom

M12
6
M16
5
M20
4

Numery certyfikatów obudowy

Approval conditions
cULus
RMRS
DNV
Certificate no. (cULus)
E197061
Certificate No. (DNV)
TAE00002SM
Declaration of Conformatiy No. (DoC LVD)
DE PS2410 160412 001ISS03

General information

Charge utile max.
1,155 kg
Classe de protection (UL)
Type 4
Type 4X
Couvercle
Yes
Domaines d'utilisation :
Process industry
Transportation
Marine engineering
Packaging industry
Harbour facilities
Machine construction
Fixation de montage
Threaded holes M4
Fixation du coffret
Holes 4 mm
Hauteur de l'orifice d'accès
63 mm
Impact resistance
10 J version standard
Largeur de l'orifice d'accès
158 mm
Lid attachment
M4 torx stainless steel screws with slot
Material básico
Aluminium AlSi12
Material thickness of cover
3 mm
Material thickness of enclosure
3,5 mm
Nombre de vis de couvercle
4
Operating temperature, max.
80 °C
Operating temperature, min.
−40 °C
Par de apriete para tornillos de la tapa
2,5 Nm
Plaque de presse-étoupes
No
Protection degree
IP66
IP67
IP68
Provedení povrchu
untreated
Remarque : degré de protection
IP68 (t=72h, h=1m)
Seal material
Chloroprene
Standardy
EN 45545-2:2013

horizontal assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5
1x22

vertical assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5
*
WDU 4 / ZDU 4
*

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
