LM MT300 20/8 SI
LM MT300 20/8 SI
LM MT300 20/8 SI

LM MT300 20/8 SI

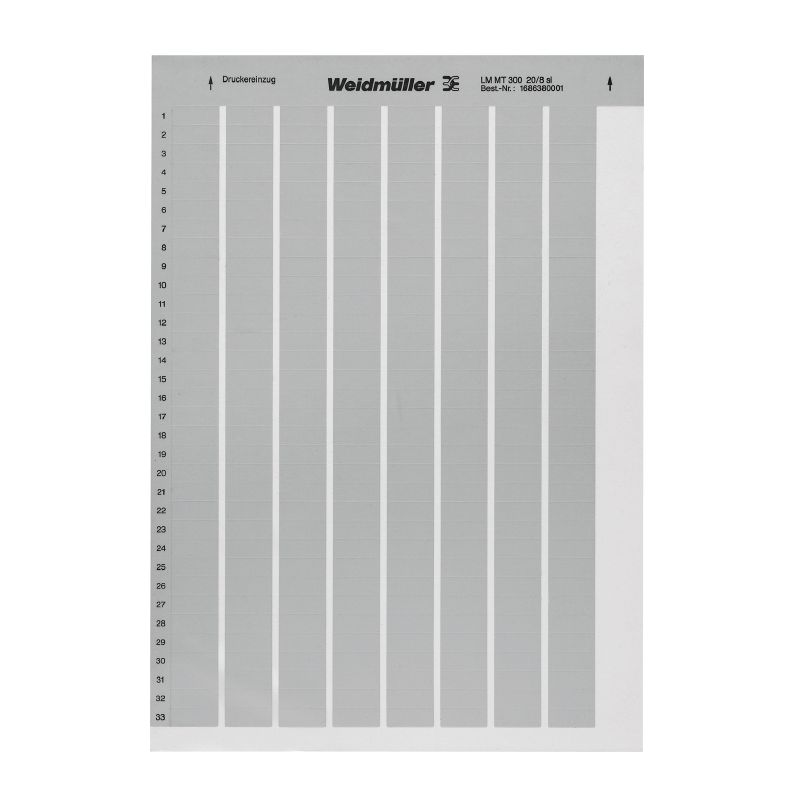

LaserMark, Device markers, 8 x 20.3 mm, silver

Ürün No. 1686380001
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Caractéristiques générales Repérage d’équipements et appareillages Classifications

Approvals

ROHS
Conform

General ordering data

Version
LaserMark, Device markers, 8 x 20.3 mm, silver
Order No.
1686380001
Type
LM MT300 20/8 SI
GTIN (EAN)
4008190493929
Qty.
10 adet

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
8 mm
Height (inches)
0,315 inch
Width
20,3 mm
Width (inches)
0,799 inch
Net weight
9,944 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Caractéristiques générales

Adhesive
Colle acrylate
Approval acc. to UL 969
Oui
Ausführung
autoadhésif
Basic material
Polyester, sans PVC
Colour
argent
Halogen
아니요
Metoda tisku
druk laserowy
Number of markers per packaging unit
2640
Number of markers per packaging unit
  • Leveransform:
    Label sheet
  • Number of combinations per packaging unit:
    10
  • Number of markers per combination:
    264
Número de señalizadores por combinación
1 Label sheet = 264 Device markers
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Počet na list
264
Printed characters
without
UL 94 flammability rating
HB
Width
20,3 mm

Repérage d’équipements et appareillages

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
