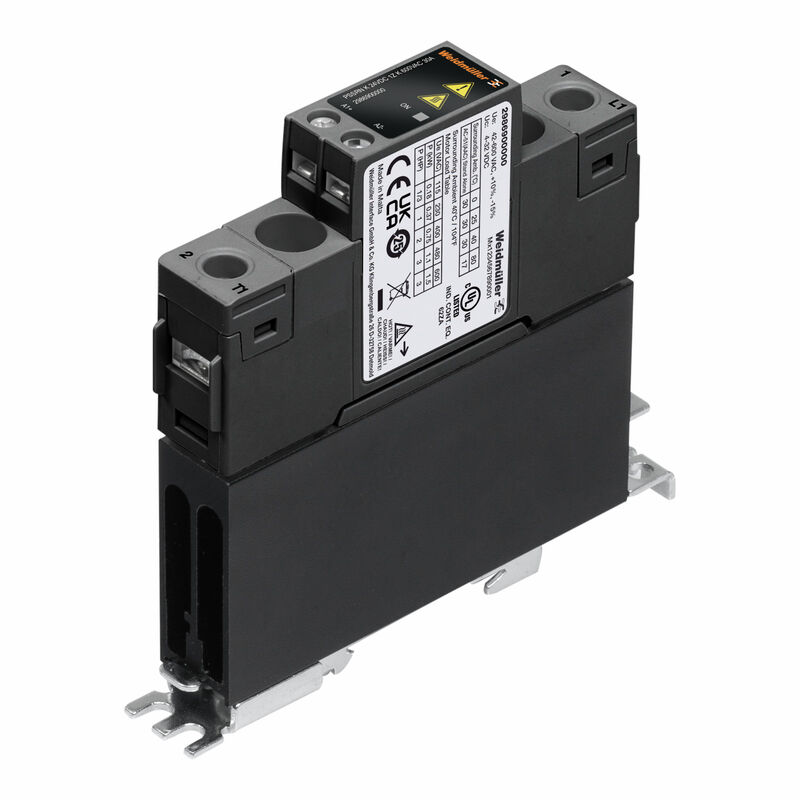

PSSRN K 24VDC 1Z K 600VAC 30A
Power Solid-State Relais, Solid state contactor, Rated control voltage: 4…32 V DC , Rated switching voltage: 42…600 V AC +10% -15%, Continuous current: 30 A
Product ID
2986900000
Eigenschappen

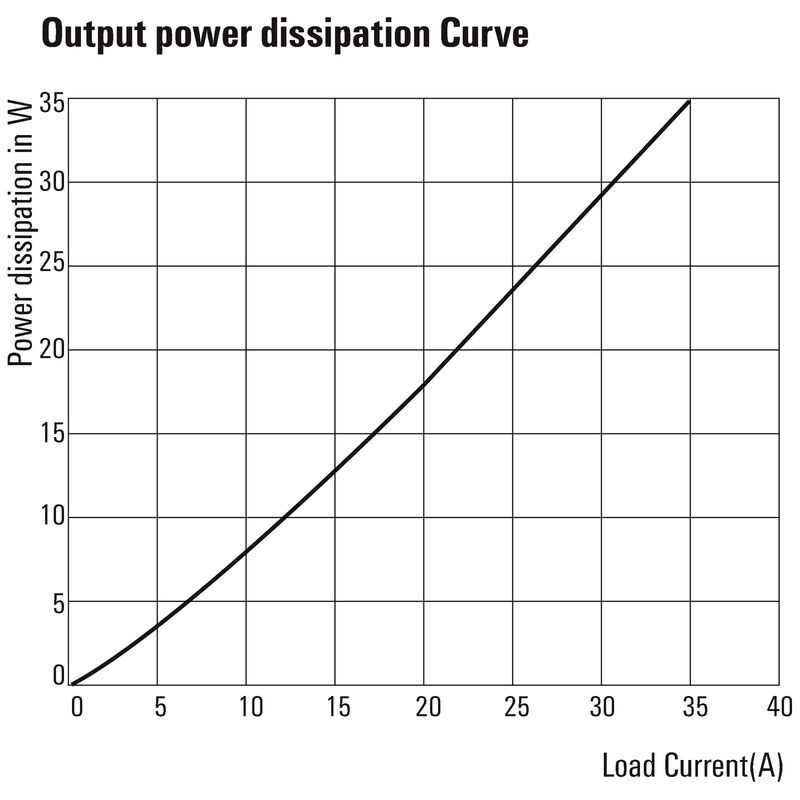

| Version | Power Solid-State Relais, Solid state contactor, Rated control voltage: 4…32 V DC , Rated switching voltage: 42…600 V AC +10% -15%, Continuous current: 30 A |
| Order No. | 2986900000 |
| Type | PSSRN K 24VDC 1Z K 600VAC 30A |
| GTIN (EAN) | 4099986853027 |
| Qty. | 1 items |
| Depth | 103 mm |
| Depth (inches) | 4,055 inch |
| Height | 110 mm |
| Height (inches) | 4,331 inch |
| Width | 17,8 mm |
| Width (inches) | 0,701 inch |
| Net weight | 206 g |
| Storage temperature | -40 °C...100 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 95% relative humidity, non-condensing @ 40°C |
| MTTF | 25 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7cI |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated control voltage | 4…32 V DC |
| Nominal control current | 7.75 mA…11 mA |
| Status indicator | Green LED |
| Rated switching voltage | 42…600 V AC +10% -15% |
| Continuous current | 5 A (AC 53) ; 30 A (AC 51) @ 40 °C |
| Max. switching current | 30 A |
| Load category |
AC 51
AC 53 |

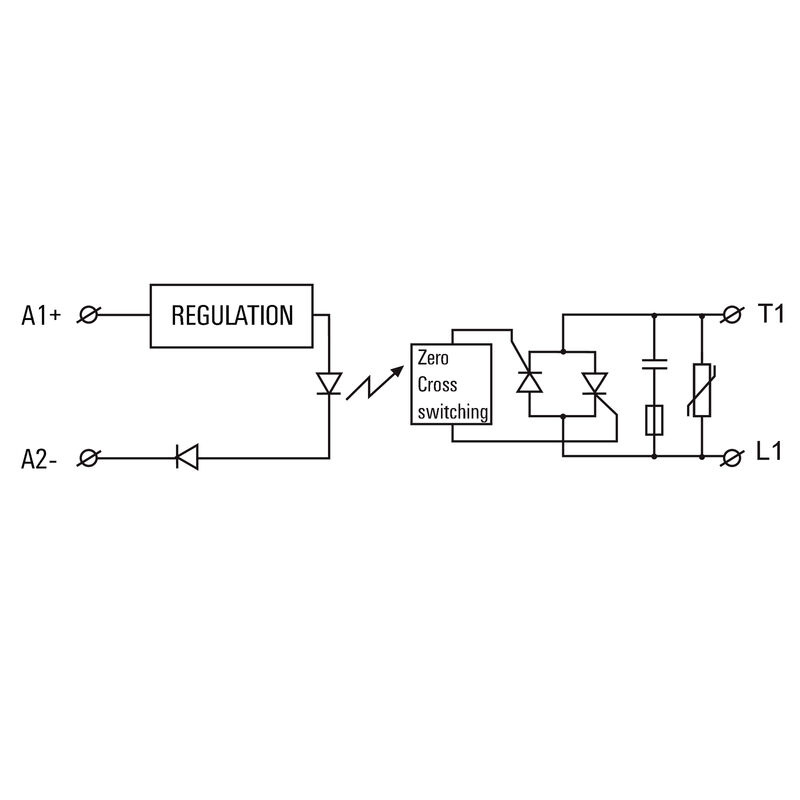

| Inrush current | 51 A |
| Pulse load, max. current | 1150 A (10 ms, non-recurrent) |
| Load limit integral (I²t) <10 ms | 6.600 A²s |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 10 ms |
| Leakage current | <3 mA |
| Min. switching current | 400 mA |
| Short-circuit-proof | No |
| Protective circuit, load side |
Integrated varistor
RC element |
| Contact type | 1 NO contacts (Thyristor (zero-cross switch)) |
| Output voltage frequency range | 45…65 Hz |
| Version | Single-phase with mounted heat sink (zero-voltage switch output) |
| Rail | TS 35 |
| Colour | black |
| Pollution severity | 2 |
| Surge voltage category | III |
| Dielectric strength for control side - load side | 4 kVeff |
| Dialectric strength of load side - housing | 4 kVeff |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate no. (cULus) | E537615 |
| Stripping length, control side | 8 mm |
| Wire connection cross-section, solid, control side, max. | 2,5 mm² |
| Wire connection cross-section, solid, control side, max. (AWG) | AWG 18 |
| Wire connection cross-section, solid, control side, min. (AWG) | AWG 12 |
| Wire connection cross-section, twin wire-end ferrules, control side, max. | 2,5 mm² |
| Wire connection cross-section, twin wire-end ferrules, control side, min. | 0,5 mm² |
| Wire connection method (control side) | Screw connection |
| Min. rated connection clamping range (control side) | 0,75 mm² |
| Max. rated connection clamping range (control side) | 2,5 mm² |
| Wire connection method (control side) | M3 screw with captivated washer |
| Min. tightening torque (control side) | 0,5 Nm |
| Max. tightening torque (control side) | 0,6 Nm |
| Blade size (control side) | PZ 1 |
| Stripping length, load side | 12 mm |
| Wire connection cross-section, finely stranded, two clampable wires, load side, max. | 6 mm² |
| Wire connection cross-section, finely stranded, two clampable wires, load side, max. (AWG) | AWG 18 |
| Wire connection cross-section, finely stranded, two clampable wires, load side, min. | 1 mm² |
| Wire connection cross-section, finely stranded, two clampable wires, load side, min. (AWG) | AWG 10 |
| Wire connection cross-section, solid, load side, max. | 6 mm² |
| Wire connection cross-section, solid, load side, max. (AWG) | AWG 14 |
| Wire connection cross-section, solid, load side, min. | 2,5 mm² |
| Wire connection cross-section, solid, load side, min. (AWG) | AWG 10 |
| Wire connection cross-section, stranded, load side, max. | 6 mm² |
| Wire connection cross-section, stranded, load side, max. (AWG) | AWG 18 |
| Wire connection cross-section, stranded, load side, min. | 1 mm² |
| Wire connection cross-section, stranded, load side, min. (AWG) | AWG 10 |
| Wire connection cross-section, twin wire-end ferrules, load side, max. (AWG) | AWG 18 |
| Wire connection cross-section, twin wire-end ferrules, load side, min. (AWG) | AWG 12 |
| Wire connection method (load side) | Screw connection |
| Min. rated connection clamping range (load side) | 2,5 mm² |
| Max. rated connection clamping range (load side) | 6 mm² |
| Wire connection method (load side) | M4 screw with captivated washer |
| Min. tightening torque (load side) | 1,5 Nm |
| Max. tightening torque (load side) | 2 Nm |
| Blade size (load side) | PZ 2 |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_317522) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_314693) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2986900000) |
| User Documentation | [Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_317476) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002055 |
| ETIM 7.0 | EC002055 |
| ETIM 8.0 | EC002055 |
| ETIM 9.0 | EC002055 |
| ECLASS 9.0 | 27-37-10-14 |
| ECLASS 9.1 | 27-37-10-14 |
| ECLASS 10.0 | 27-37-10-14 |
| ECLASS 11.0 | 27-37-10-14 |
| ECLASS 12.0 | 27-37-10-14 |
| ECLASS 13.0 | 27-37-10-14 |
| ECLASS 14.0 | 27-37-10-14 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E537615 |
