SAIE-M8S-4-F9SMT
Similar to illustration
SAIE-M8S-4-F9SMT

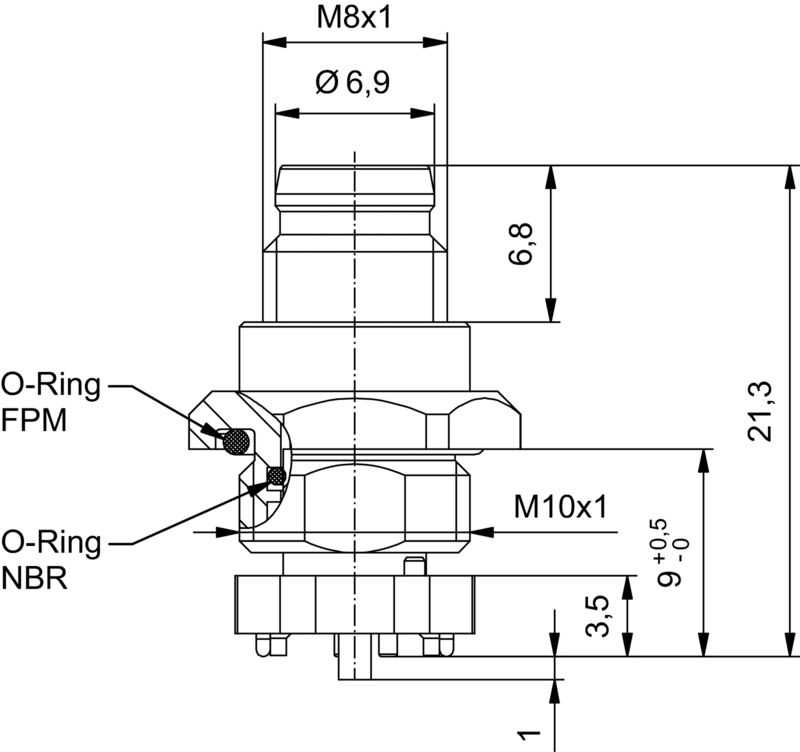

Dimensioned drawing
SAIE-M8S-4-F9SMT
PCB design
SAIE-M8S-4-F9SMT
Pole scheme
Pin

SAIE-M8S-4-F9SMT

Built-in plugs, M8, Mounting thread: M10, Number of poles: 4, Strand / cable length:

Produkt ID 2422470000
Download datablad Technická podpora Product Downloads
Anvendte produkter 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M8, Mounting thread: M10, Number of poles: 4, Strand / cable length:
주문 번호
2422470000
유형
SAIE-M8S-4-F9SMT
GTIN(EAN)
4050118429879
Qty.
25 Styk

Dimensions and weights

Net weight
7,92 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Bases y capotas
M8 pin
Coding
M8 = none
Housing surface
nickel-plated
Installation height
9 mm
Number of poles
4
Type of mounting
Front mounting
Árnyékolás csatlakozás
No
Монтажная резьба
M10
Névleges feszültség
30 V
정격 전압
60 V (3-pole) / 30 V (4-,5- and 8-pole)
Märkström
4 A
Rated current
4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range
-30…80 °C
보호 등급
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M8
조임 토크
M8: 0.5 Nm
Mounting thread
M10
Mounting torque
  • max.:
    0,8 Nm
Mounting torque range
0.8 Nm
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Seal material
NBR
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn
Grouting material
PUR

General Info

Number of poles
4
하우징 기본 재질
CuZn
nickel-plated
Connection thread
M8
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Front mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
접점 표면
Au (Gold)

System parameters

Odpor izolace
100 MΩ
Pin series quantity
1
Plugging cycles
≥ 100
Polzahl
4
Schutzart
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
