SAIEW-M12B-4-FTL

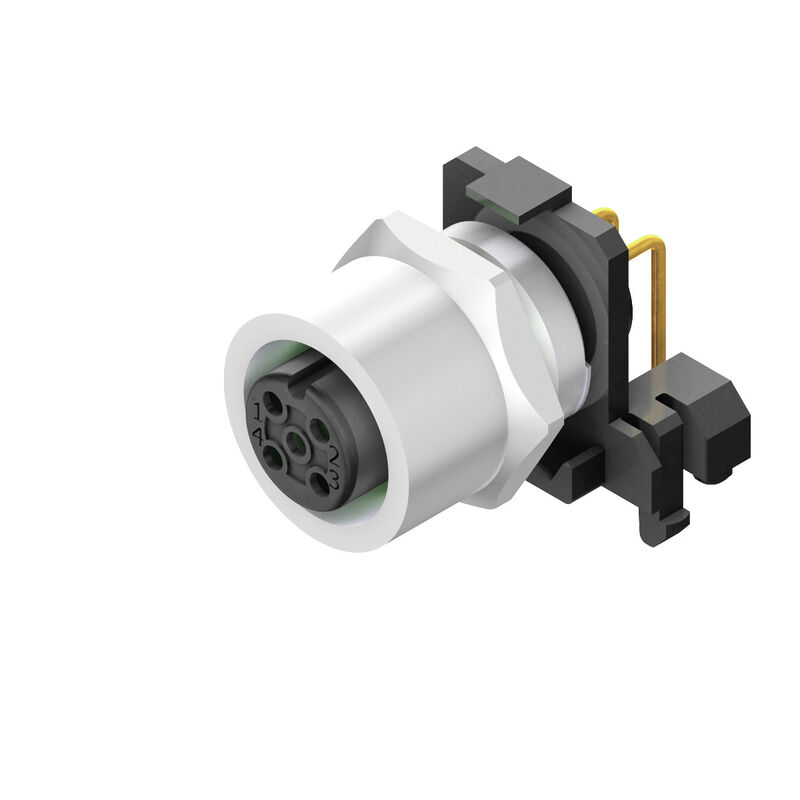

Similar to illustration
SAIEW-M12B-4-FTL

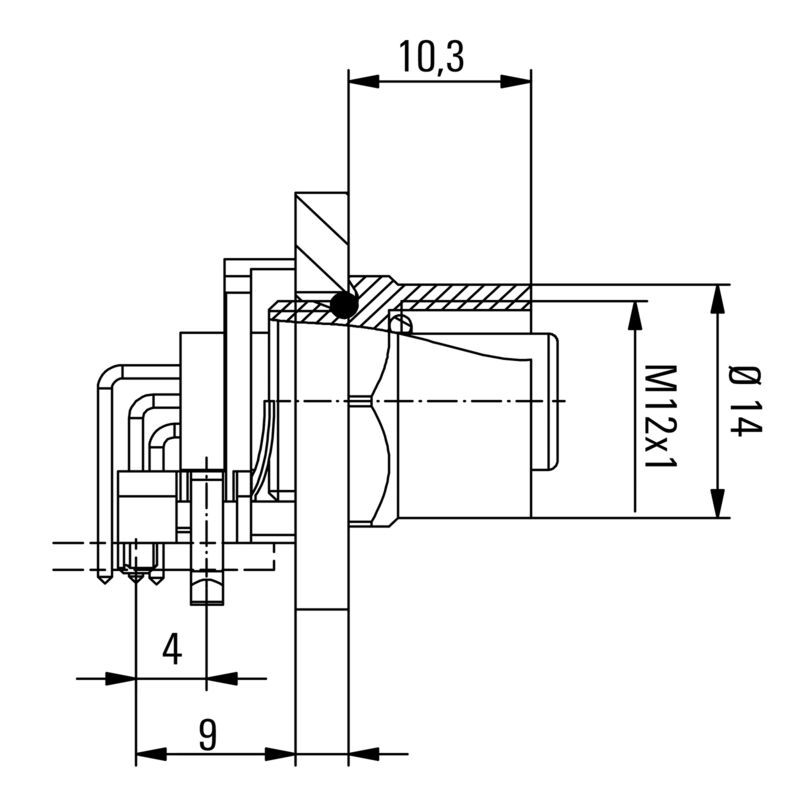

Dimensioned drawing
SAIEW-M12B-4-FTL

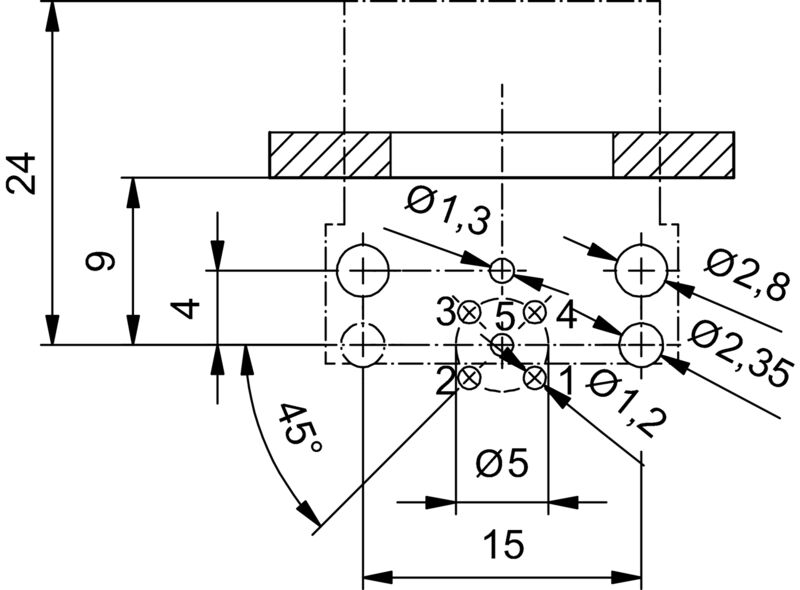

PCB design
SAIEW-M12B-4-FTL
Front panel section
SAIEW-M12B-4-FTL
Pole scheme
M12 = A-coded

SAIEW-M12B-4-FTL

Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:

Produkt ID 2423540000
Download datablad Engineering Support Product Downloads
Anvendte produkter 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Версия
Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:
Référence
2423540000
Type
SAIEW-M12B-4-FTL
GTIN (EAN)
4050118431728
数量
10 Styk

Dimensions and weights

Net weight
10,4 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
A-coded
Housings
M12 socket
Mounting thread
M12
Number of poles
4
Shield connection
No
Type of mounting
Front mounting
Nominal voltage
250 V
Rated voltage
250 V (4-pole) / 60 V (5-pole)
Номинальный ток
4 A
Номинальный ток
4 A
Temperaturområde
-30…80 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M12
Tightening torque
M12: 0.8 Nm
紧固螺纹
M 12
Mounting torque
  • max.:
    1,2 Nm
Rozpětí utahovacího momentu instalace
1.2 Nm
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
4
Gehäusebasismaterial
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Front mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Contact surface
Au (Gold)

System parameters

Insulation resistance
100 MΩ
Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
