SAIEW-M8B-3S-H8TL

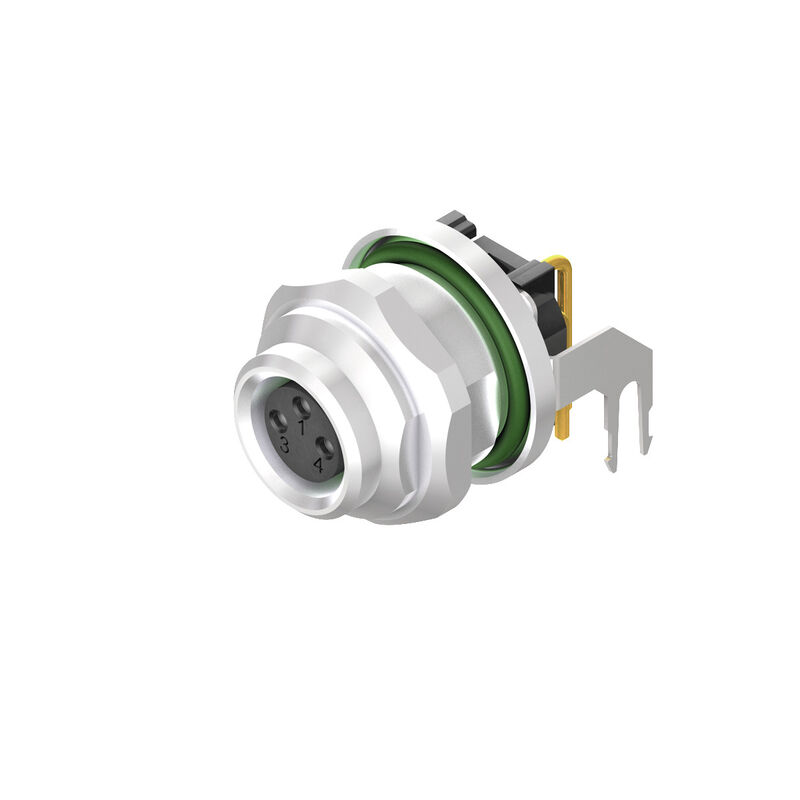

Similar to illustration
SAIEW-M8B-3S-H8TL

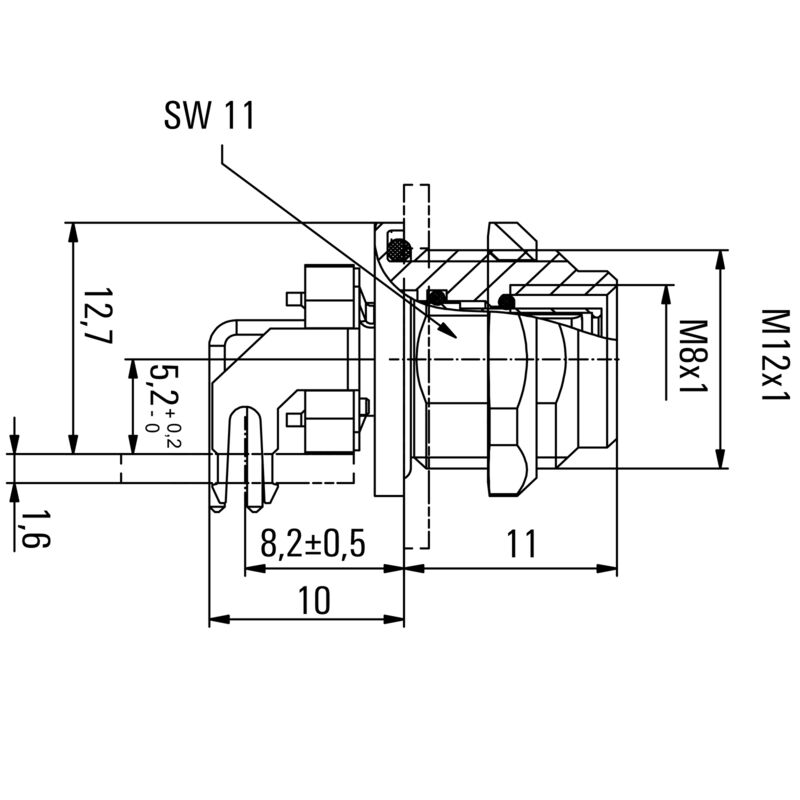

Dimensioned drawing
L(board-to-board distance) = 8mm
SAIEW-M8B-3S-H8TL

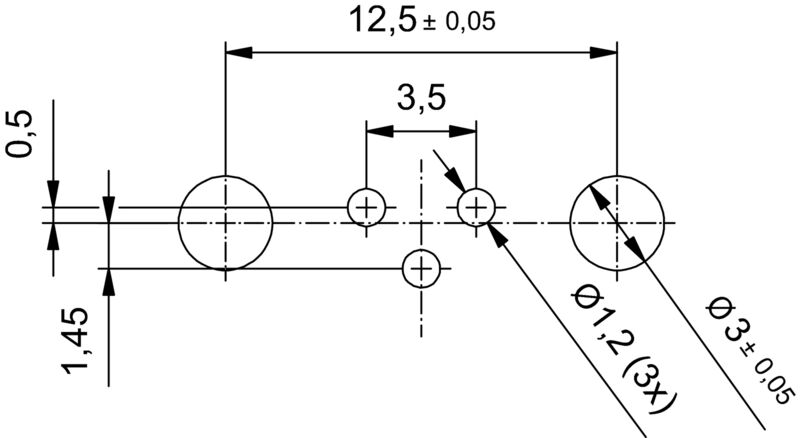

PCB design
SAIEW-M8B-3S-H8TL
Pole scheme
M8 = none

SAIEW-M8B-3S-H8TL

Built-in plugs, M8, Mounting thread: M 12, Number of poles: 3, Strand / cable length:

Produkt ID 2424250000
Download datablad Engineering Support Product Downloads
Anvendte produkter 8
Agréments General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info 재질 데이터 System parameters Classifications

Agréments

ROHS
Megfelel

General ordering data

Версия
Built-in plugs, M8, Mounting thread: M 12, Number of poles: 3, Strand / cable length:
Заказ №
2424250000
유형
SAIEW-M8B-3S-H8TL
GTIN (EAN)
4050118431018
Qty.
10 items

Dimensions and weights

Net weight
14 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
M8 = none
Housings
M8 socket
Installation height
8 mm
Number of poles
3
Shield connection
Yes
Type of mounting
Montáž na zadní panel
Монтажная резьба
Pin: M10 / Socket: M12
Tensión nominal
60 V
Rated voltage
60 V (3-pole) / 30 V (4-pole)
Nominal current
4 A
Rated current
4 A
Temperature range
-30…80 °C
Schutzart
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M8
Coppia di serraggio
M8: 0.5 Nm
Mounting thread
M 12
Mounting torque range
0.8 Nm
Utahovací moment instalace
  • max.:
    0,8 Nm
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Seal material
FPM
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn
Grouting material
PUR

General Info

Number of poles
3
Ház fő anyaga
CuZn
nickel-plated
Connection thread
M8
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

재질 데이터

Contact material
구리 합금
Kontaktoberfläche
Au (guld)

System parameters

Insulation resistance
100 MΩ
Number of poles
3
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
