SAIL-M12W-3-1.5V
SAIL-M12W-3-1.5V
Dimensioned drawing
Male, angled
SAIL-M12W-3-1.5V
Pole scheme
Male
SAIL-M12W-3-1.5V
Wiring diagram
SAIL-M12W-3-1.5V
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12W-3-1.5V

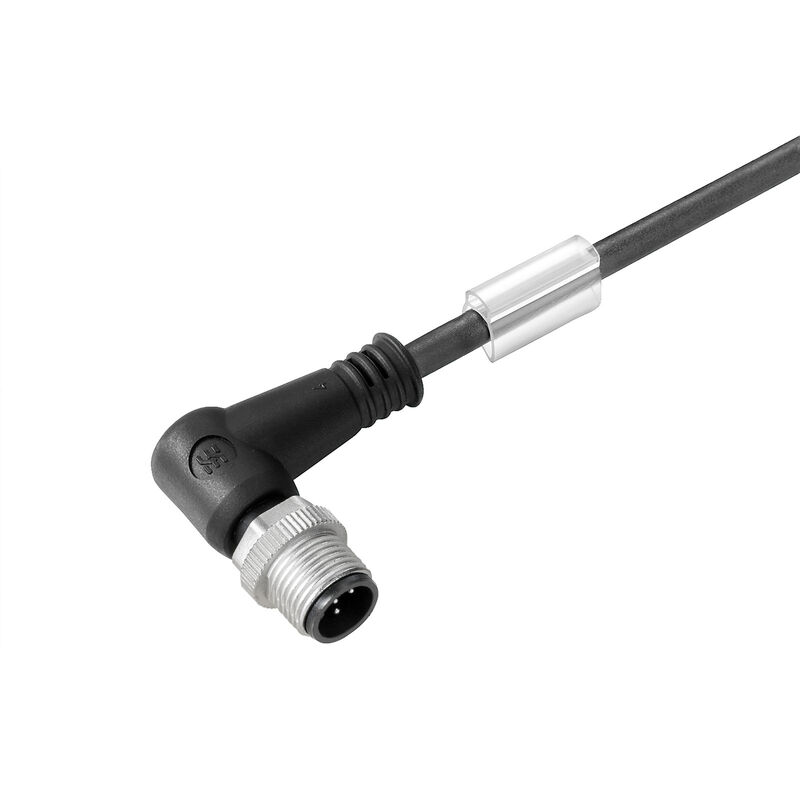

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 1.5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Item No. 1925510150
Download data sheet Engineering Support Product Downloads
Accessories 7 Related products 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 1.5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1925510150
Type
SAIL-M12W-3-1.5V
GTIN (EAN)
4032248570072
Qty.
1 items

Dimensions and weights

Net weight
65 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Apto para cadena de arrastre
No
Blindé
No
Core cross-section
0.34 mm²
Halogén
Yes
Irradiation crosslinked
No
Kabellänge
1.5 m
Kodowanie kolorami
brown
blue
black
Köpeny anyaga
PVC
Külső bevonat az UL AWM stílusnak megfelelően
2464 (80 °C / 300 V)
Lunghezza cavo configurabile
No
Mantelfarbe
black
Number of poles
3
Outside diameter
4.9 mm ± 0.2 mm
Resistant to welding beads
No
Szigetelés
PVC
Temperature range, moving
-5...80 °C
Temperaturområde, fast lagd
-30...80 °C
Welding spark resistance
No
Прочность при кручении
0 °/m

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
IP69
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Standardní konektor
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
