Özellikler
| Version | Electronics housing sample, OMNIMATE Housing - series CH20M green, PCB for self-assembly, CH20M12 - 67, For 2 connection levels, Width: 1.6 mm |
| Order No. | 1105580000 |
| Type | SAMPLE LP CH20M PPX |
| GTIN (EAN) | 4032248880652 |
| Qty. | 1 adet |
| Depth | 99 mm |
| Depth (inches) | 3,898 inch |
| Height | 101 mm |
| Height (inches) | 3,976 inch |
| Width | 1,6 mm |
| Width (inches) | 0,063 inch |
| Net weight | 24,8 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Insulating material | PA 66 GF 30 |
| Insulating material group | II |
| Colour | green |
| Colour chart (similar) | RAL 6032 |
| Protection degree | IP20 in installed state |

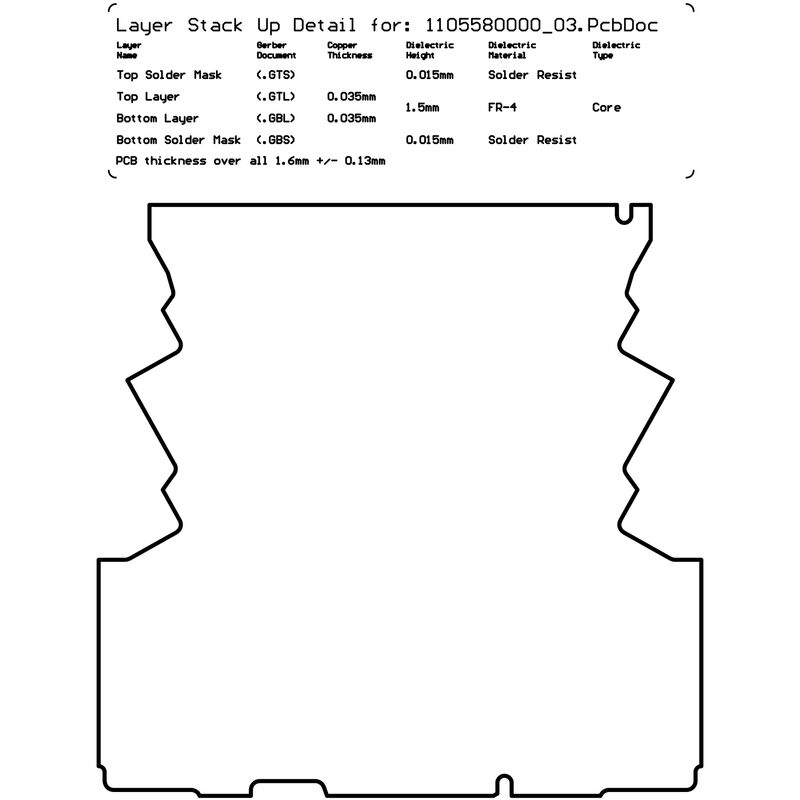

| Engineering Data | [PCB Reference Layout](https://mdcop.weidmueller.com/mediadelivery/asset/900_72927) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257)
[FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 6.0 | EC001031 |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 9.0 | 27-18-27-02 |
| ECLASS 9.1 | 27-18-27-92 |
| ECLASS 10.0 | 27-18-27-02 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-02-04 |
| ECLASS 14.0 | 27-19-02-04 |
| ROHS | Conform |
