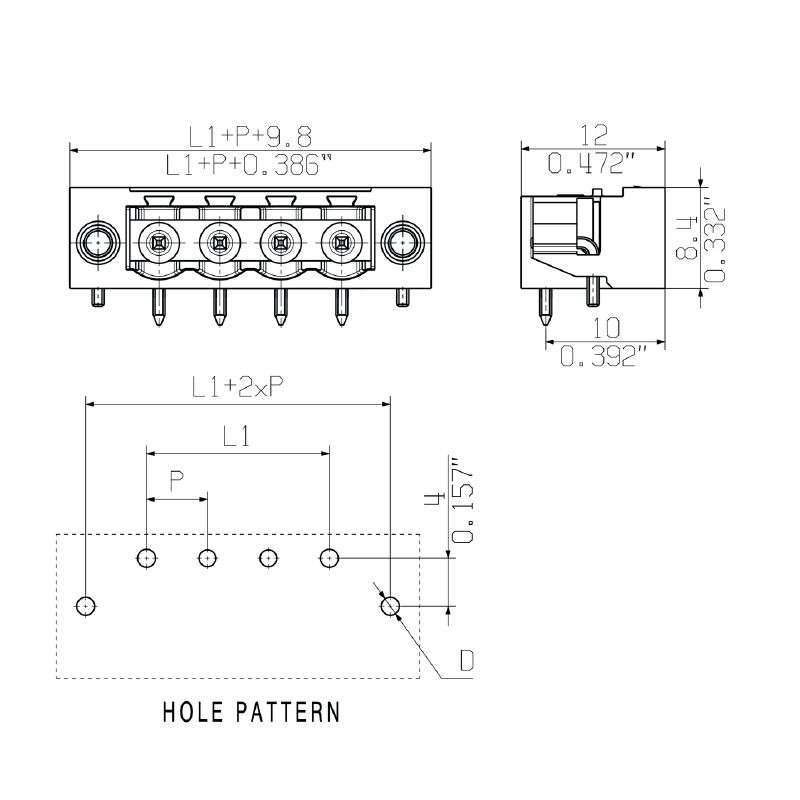

Dimensional drawing
SL 5.08HC/23/90LF 3.2SN OR BX
Graph
SL 5.08HC/23/90LF 3.2SN OR BX
Graph
SL 5.08HC/23/90LF 3.2SN OR BX
Graph
SL 5.08HC/23/90LF 3.2SN OR BX
Graph
SL 5.08HC/23/90LF 3.2SN OR BX
Graph

SL 5.08HC/23/90LF 3.2SN OR BX

NYÁK dugaszoló csatlakozó, tűs érintkezősor, Forrasztható peremes aljzat, THT-forrasztott csatlakozás, 5.08 mm, Pólusszám: 23, 90°, Forrasztótüske hossza (l): 3.2 mm, ónozott, narancssárga, Doboz

Product ID 1150040000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 7 Is contradeel van 10 Verwante producten 46
Homologaciones Általános rendelési adatok Dimensions and weights Termékek környezetvédelmi megfelelősége Rendszerspecifikációk Données des matériaux Datos nominales conformes a IEC Rated data acc. to CSA Dati di dimensionamento sec. UL 1059 Csomagolás Viktig hänvisningstext Classifications

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Webseite](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

Általános rendelési adatok

Version
NYÁK dugaszoló csatlakozó, tűs érintkezősor, Forrasztható peremes aljzat, THT-forrasztott csatlakozás, 5.08 mm, Pólusszám: 23, 90°, Forrasztótüske hossza (l): 3.2 mm, ónozott, narancssárga, Doboz
Order No.
1150040000
Type
SL 5.08HC/23/90LF 3.2SN OR BX
GTIN (EAN)
4032248936083
Cantidad
12 Pezzo
Parametri prodotto
IEC: 400 V / 24 A
UL: 300 V / 18.5 A
Imballaggio
Box

Dimensions and weights

Depth
12 mm
Profundidad (pulgadas)
0,472 inch
Height
11,7 mm
Height (inches)
0,461 inch
Height of lowest version
8,5 mm
Width
126,64 mm
Width (inches)
4,986 inch
Net weight
9,41 g

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Dalla culla al cancello:
    0,206 kg CO2 eq.

Rendszerspecifikációk

Product family
OMNIMATE Signal - sorozat BL/SL 5.08
Type of connection
Kretskortanslutning
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Outgoing elbow
90°
Number of poles
23
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Dimensiones del pin de soldadura
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Diámetro de la perforación (D)
1,5 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 en mm
111,76 mm
L1 in inches
4,4 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
7,5 N

Données des matériaux

Insulating material
PA GF
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
II
Comparative Tracking Index (CTI)
≤ 600
Класс пожаростойкости UL 94
V-0
Contact material
Cu-alloy
Superficie de contacto
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Schichtaufbau - Steckkontakt
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Datos nominales conformes a IEC

testado según la norma
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
19 A
Rated current, min. number of poles (Tu=40°C)
21 A
Rated current, max. number of poles (Tu=40°C)
16,5 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Tensión nominal con categoría de sobretensión/grado de polución II/2
4.000 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
18,5 A
Rated current (Use group D / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Dati di dimensionamento sec. UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
300 V
Intensidad nominal (Use Group B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Csomagolás

Packaging
Doboz
VPE length
183 mm
VPE width
130 mm
VPE height
31 mm

Viktig hänvisningstext

IPC conformity
Konformitet: Produkterna utvecklas, tillverkas och levereras i enlighet med internationellt erkända standarder och normer, och uppfyller de egenskaper som garanteras i databladet resp. har designegenskaper i enlighet med IPC-A-610 "Klass 2". Övriga anspråk gällande produkterna kan bedömas på begäran.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
