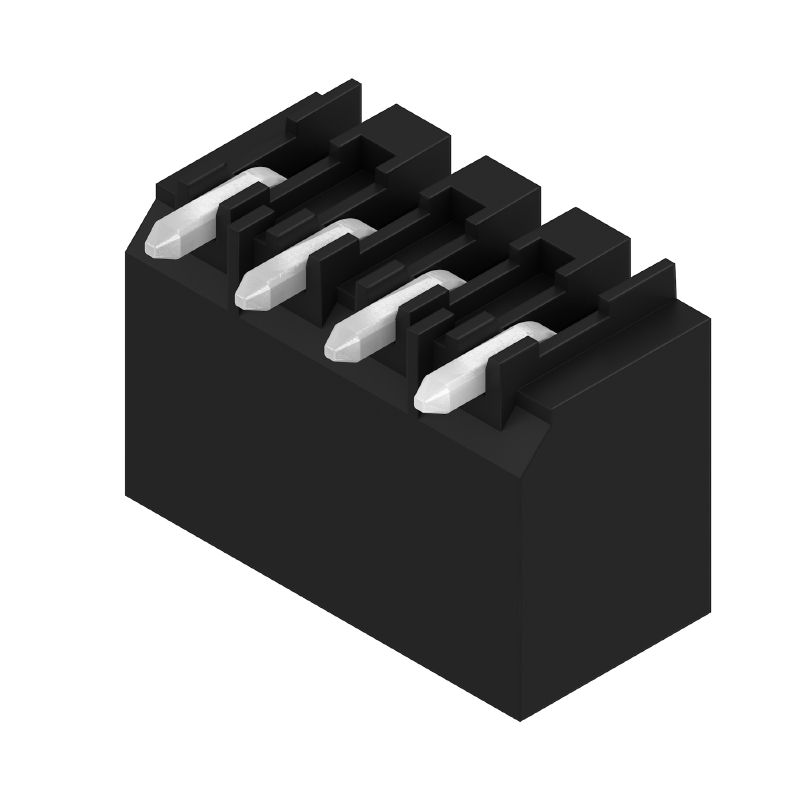

SL-SMT 3.50/04/90G 1.5SN BK RL
Product image
SL-SMT 3.50/04/90G 1.5SN BK RL
Dimensional drawing
L1 = 28.00 mm | P = 3.50 mm
SL-SMT 3.50/04/90G 1.5SN BK RL
Dimensional drawing
SL-SMT 3.50/04/90G 1.5SN BK RL
Dimensional drawing
Optimised for the SMT process
Safe board-to-board connection
SL-SMT 3.50/04/90G 1.5SN BK RL
Example of use
Compliant with existing standards

SL-SMT 3.50/04/90G 1.5SN BK RL

PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.50 mm, Number of poles: 4, 90°, Solder pin length (l): 1.5 mm, tinned, black, Tape

Produkt ID 1761564001
Download datablad Engineering-support Produktdownloads
Tilbehør 7 Er et modstykke til 10 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Embalaje Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (UR)
E60693

General ordering data

Ausfuehrung
PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.50 mm, Number of poles: 4, 90°, Solder pin length (l): 1.5 mm, tinned, black, Tape
Best.-Nr.
1761564001
Type
SL-SMT 3.50/04/90G 1.5SN BK RL
GTIN (EAN)
4032248135905
VPE
385 Pièce
Indices de produit
IEC: 320 V / 15 A
UL: 300 V / 10 A
Emballage
Tape

Dimensions and weights

Tiefe
11,1 mm
Depth (inches)
0,437 inch
Höhe
9 mm
Height (inches)
0,354 inch
Height of lowest version
7,5 mm
Breite
15,4 mm
Width (inches)
0,606 inch
Net weight
2,223 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Produktfamilie
OMNIMATE Signal - series BL/SL 3.50
Anschlussart
Board connection
Mounting onto the PCB
THT/THR solder connection
Raster in mm (P)
3,5 mm
Raster in Zoll (P)
0,138 "
Abgangswinkel
90°
Polzahl
4
Anzahl Lötstifte pro Pol
1
Pájecí kolík, délka (l)
1,5 mm
Lötstiftlänge-Toleranz
0 / -0,3 mm
Lötstift-Abmessungen
d = 1.2 mm
Octagonal
Lötstift-Abmessungen=d Toleranz
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,4 mm
Допуск на диаметр отверстия припойного ушка (D)
+ 0,1 мм
Наружный диаметр площадки под пайку
2,3 mm
Диаметр отверстия трафарета
2,1 mm
L1 in mm
10,5 mm
L1 в дюймах
0,413 "
Antal rader
1
Polradstal
1
Beröringsskydd enligt DIN VDE 57
fingers. instucken/ handryggss. ej inst.
Beröringsskydd enligt DIN VDE 0470
IP 20 ansluten/ IP 10 ej ansluten
Genomgångsmotstånd (6)
≤5 mΩ
Koderbar
Ja
Plugging force/pole, max.
6 N
Pulling force/pole, max.
6 N

Material data

Insulating material
LCP GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 éghetőségi osztály
V-0
Contact material
Stop Cu
Contact surface
cynowana
Layer structure of plug contact
2...3 µm Ni / 5...7 µm Sn
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
15 A
Rated current, max. number of poles (Tu=20°C)
12 A
Rated current, min. number of poles (Tu=40°C)
13 A
Rated current, max. number of poles (Tu=40°C)
10 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1 сек. с 100 A

Rated data acc. to CSA

Institut (CSA)
CSA
Zertifikat-Nr. (CSA)
200039-1176845
Nennspannung (Use group B / CSA)
300 V
Nennspannung (Use group D / CSA)
300 V
Nennstrom (Use group B / CSA)
10 A
Nennstrom (Use group D / CSA)
10 A
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (UR)
UR
Zertifikat-Nr. (UR)
E60693
Jmenovité napětí (aplikační skupina B / UL 1059)
300 V
Nennspannung (Use group D / UL 1059)
300 V
Nennstrom (Use group B / UL 1059)
10 A
Nennstrom (Use group D / UL 1059)
10 A
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Embalaje

ESD Level Verpackung
estático disipativo
Verpackung
Tape
VPE Länge
332 mm
VPE Breite
332 mm
VPE Höhe
38 mm
Tapetiefe (T2)
12,1 mm
Tapebreite (W)
32 mm
Tape-Taschentiefe (K0)
11,6 mm
Tape-Taschenhöhe (A0)
11,41 mm
Tape-Taschenbreite (B0)
19,2 mm
Tape-Taschenabstand (P1)
16 mm
Tape-Lochabstand (E)
1,75 mm
Tape-Taschenabstand (F)
14,2 mm
Tape-Spulendurchmesser ∅ (A)
330 mm
Oberflächenwiderstand
Rs = 109 - 1012 Ω

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hinweise
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
