WNT 6 10X3
Product image
WNT 6 10X3

WNT 6 10X3

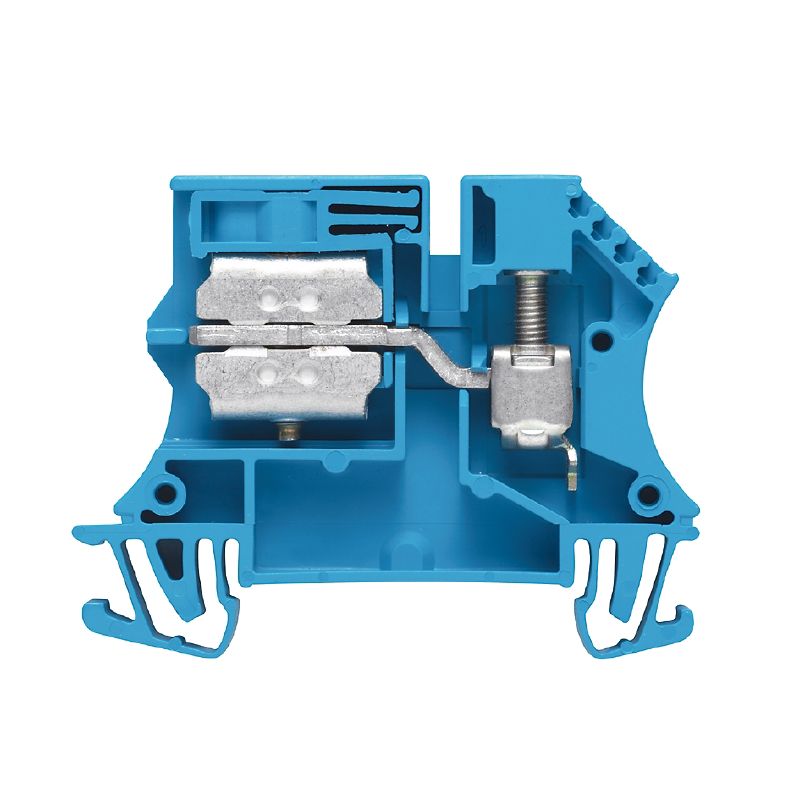

Neutral conductor modular terminal, Screw connection, 6, 400 V, 41 A, TS 35, blue

Ürün No. 1010880000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 14 İlgili ürünler 66
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/df507df8-d637-4d59-bdb6-908e5128453b/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/966ab2aa-a692-450f-aa01-511debec6d4c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Konform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Neutral conductor modular terminal, Screw connection, 6, 400 V, 41 A, TS 35, blue
Order No.
1010880000
Type
WNT 6 10X3
GTIN (EAN)
4008190105969
Qty.
50 adet

Dimensions and weights

Depth
46,5 mm
Depth (inches)
1,831 inch
Depth including DIN rail
47 mm
Height
60 mm
Height (inches)
2,362 inch
Width
7,9 mm
Width (inches)
0,311 inch
Net weight
18,022 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Folyamatos üzemi hőmérséklet., min.
-50 °C
연속 작동 온도, 최대
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Material data

Werkstoff
Wemid
Barevný
blue
Klasifikace hořlavosti UL 94
V-0

System specifications

Version
Screw connection
with busbar connection 10x3
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
1
Number of potentials per tier
1
Úrovně propojené interně
No
PE connection
No
Guida equipaggiata
TS 35
N-Funktion
Yes
PE function
No
PEN function
No

Additional technical data

Felszerelés típusa
Snap-on
Installation advice
Busbar
Lados abiertos
right
Número de bornes iguales
1
Version à l#92épreuve de l#92explosion
No

Conductors for clamping (additional connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
6 mm²
Connection type, additional connection
Busbar connection

Conductors for clamping (rated connection)

Blade size
4.0 x 0.8 mm
Clampable conductor
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      solid, H05(07) V-U
    • min.:
      0,5 mm²
    • max.:
      10 mm²
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        12 mm
      • max.:
        12 mm
      • nominal:
        12 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        1,2 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      stranded, H07V-R
    • min.:
      1,5 mm²
    • max.:
      10 mm²
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        12 mm
      • max.:
        12 mm
      • nominal:
        12 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        1,2 Nm
  • Connection specification:
    Screw connection
  • Cross-section for conductor connection:
    • Type:
      flexible, H05(07) V-K
    • min.:
      0,5 mm²
    • max.:
      10 mm²
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • min.:
        12 mm
      • max.:
        12 mm
      • nominal:
        12 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        1,2 Nm
Clamping range, max.
10 mm²
Clamping range, min.
0,5 mm²
Clamping screw
M 3.5
Connection cross-section, stranded, max.
10 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A5
Number of connections
1
Stripping length
12 mm
Tightening torque, max.
1,2 Nm
Tightening torque, min.
0,8 Nm
Torque level with DMS electric screwdriver
3
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, solid core, max.
10 mm²
Wire connection cross-section, solid core, min.
0,5 mm²

CSA rating data

Certificate No. (CSA)
200039-1057876
Current size C (CSA)
35 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
8 AWG
Wire cross section min. (CSA)
26 AWG

General

Installation advice
Busbar
Mounting rail
TS 35
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 20

Rating data

Rated cross-section
6 mm²
Rated voltage
400 V
정격 DC 전압
400 V
Corrente nominale
41 A
Current at maximum wires
57 A
Norme
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Номинальное импульсное напряжение
6 kV
Moc stratna zgodnie z wymaganiami IEC 60947-7-x
1,31 W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
8 AWG
Conductor size Factory wiring min. (UR)
20 AWG
Conductor size Field wiring max. (UR)
8 AWG
Conductor size Field wiring min. (UR)
20 AWG
Current size C (UR)
45 A
Voltage size C (UR)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-11
ECLASS 15.0
27-25-01-11
