WPD 133 1X300/1X300 BL
Product image
WPD 133 1X300/1X300 BL
WPD 133 1X300/1X300 BL
WPD 133 1X300/1X300 BL
WPD 133 1X300/1X300 BL
WPD 133 1X300/1X300 BL

WPD 133 1X300/1X300 BL

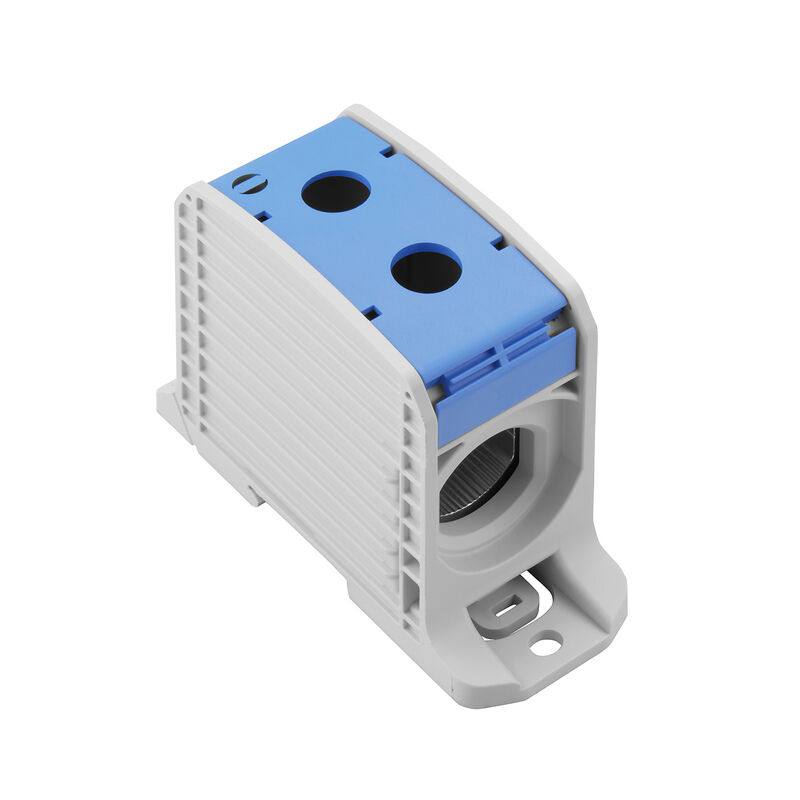

Potential distributor terminal, Screw connection, blue, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1

Ürün No. 2502860000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 6 İlgili ürünler 54
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Potential distributor terminal, Screw connection, blue, 300 mm², 520 A, 1000 V, Number of connections: 2, Number of levels: 1
Order No.
2502860000
Type
WPD 133 1X300/1X300 BL
GTIN (EAN)
4050118516685
Qty.
1 adet

Dimensions and weights

Depth
83,5 mm
Depth (inches)
3,287 inch
Height
118 mm
Height (inches)
4,646 inch
Width
45 mm
Width (inches)
1,772 inch
Net weight
338 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
długotrwała temperatura użytkowa, maks.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
CNEX18ATEX0016U
Certificate No. (IECEX)
IECEXCNEX18.0010U
Max. voltage (ATEX)
1100 V
Current (ATEX)
520 A
Wire cross section max. (ATEX)
300 mm²
Max. voltage (IECEX)
1100 V
Current (IECEX)
520 A

System specifications

Version
Screw connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
Collegamento PE
No
Mounting rail
TS 35
PE function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

300 mm²
Connection direction
on side
Klemmbereich, min.
35 mm²
Number of connections
2
Sección de conexión del conductor, flexible, max.
300 mm²
Sección de conexión del conductor, flexible, mín.
35 mm²
Sección del conductor, flexible con terminales tubulares DIN 46228/1, máx.
240 mm²
Sección del conductor, flexible con terminales tubulares DIN 46228/1, mín.
35 mm²
Sección del conductor, semirrígido, máx.
300 mm²
Sección del conductor, semirrígido, mín.
35 mm²
Sección transversal de conductor, núcleo rígido, máx.
300 mm²
Sezione di collegamento cavo, nucleo rigido, min.
35 mm²
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
kcmil 500
Wire connection cross section AWG, min.
AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
35 mm²

General

Installation advice
Terminal rail / mounting plate
Mounting rail
TS 35
Number of poles
1
Standards
IEC 60947-7-1
UL 1059
CSA
Wire connection cross section AWG, max.
kcmil 500
Wire connection cross section AWG, min.
AWG 16

Rating data

Rated cross-section
300 mm²
Rated voltage
1.000 V
Rated AC voltage
1.000 V
Rated DC voltage
1.000 V
Nominal current
520 A
Current at maximum wires
520 A
Standards
IEC 60947-7-1
UL 1059
CSA
Volume resistance according to IEC 60947-7-x
0,06 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
16,64 W
Short-time withstand current resistance
8/20µs with 50 kA
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693

Important note

Product information
You will find additional information in the downloadsection of the onlinecatalogue

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
