BBDF OR

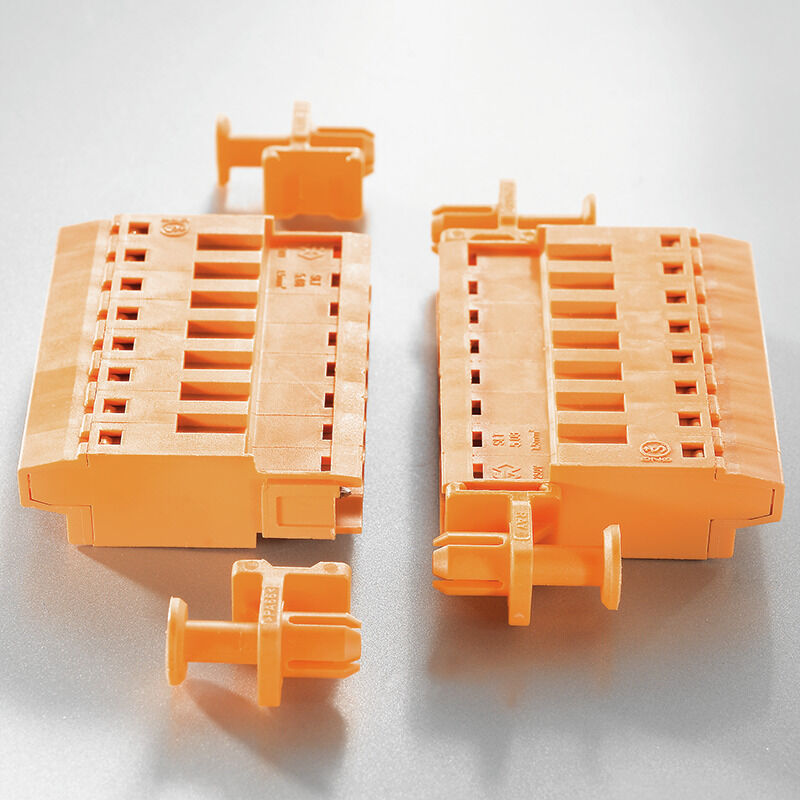

Product image
BBDF OR
Product benefits
Easy handling
No implementation framework necessary
BBDF OR
Product benefits

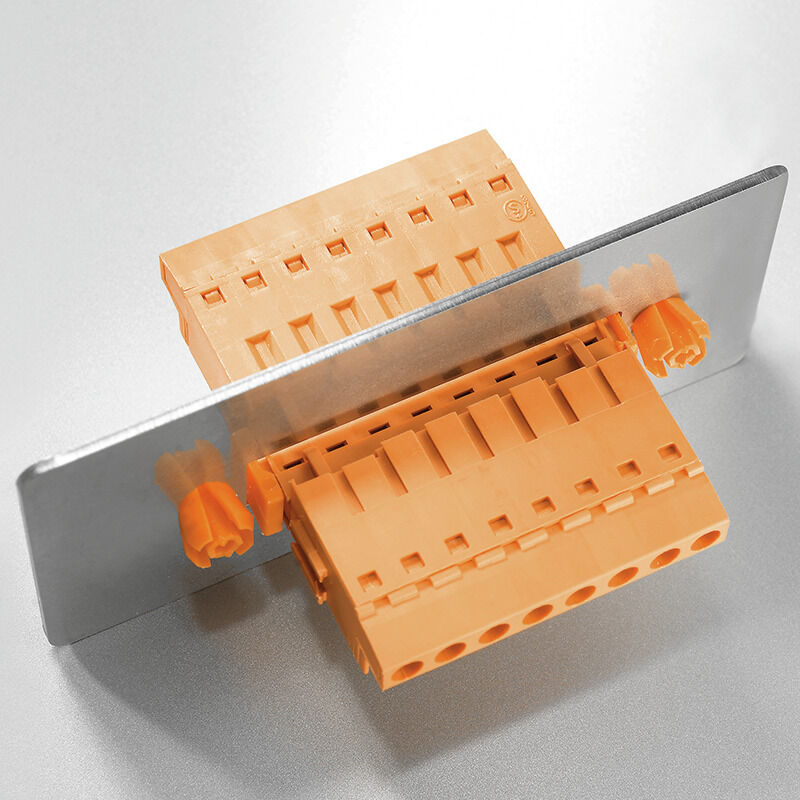

Guaranteed secure fixing
For wall thickness from 0.5 to 2 mm
BBDF OR
Product benefits

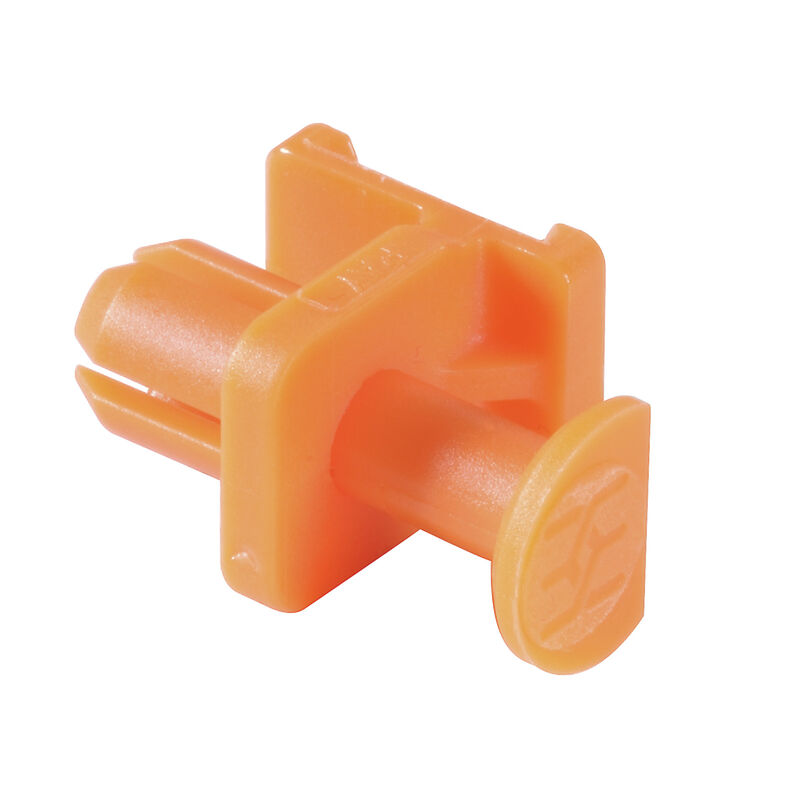

Already mounted on the connector
Or as separate accessory
BBDF OR
Product benefits
Lower assembly costs
Secure in a matter of seconds

BBDF OR

PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 0

Produkt ID 1307570000
Download datablad Engineering Support Product Downloads
Anvendte produkter 22
Approvals General ordering data Dimensions and weights Environmental Product Compliance Material data Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 0
Order No.
1307570000
Type
BBDF OR
GTIN (EAN)
4050118109566
Qty.
100  Styk
Product data

Packaging
Box

Dimensions and weights

Depth
11,4  mm
Depth (inches)
0,449  inch
Height
12,05  mm
Height (inches)
0,474  inch
Width
9,5  mm
Width (inches)
0,374  inch
Length
12,5  mm
Length (inches)
0,492  inch
Net weight
0,614  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Insulating material
PA 66/6
Colour
orange
Colour chart (similar)
RAL 2000
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-50  °C
Operating temperature, max.
100  °C
Temperature range, installation, min.
-25  °C
Temperature range, installation, max.
100  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
130  mm
VPE width
112  mm
VPE height
25  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002943
ETIM 7.0
EC002943
ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 9.0
27-44-04-92
ECLASS 9.1
27-44-04-92
ECLASS 10.0
27-44-04-92
ECLASS 11.0
27-46-04-05
ECLASS 12.0
27-46-04-05
ECLASS 13.0
27-46-04-05
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
