| Version | Flange-mounted housing, OMNIMATE Housing - series CH20M Traffic grey (RAL), Housing side panel, Recess in detent foot area for BUS contact, Width: 5.3 mm |
| Order No. | 2771170000 |
| Type | CH20M6 BC 4P-4P BUS TGY 1 1293806 |
| GTIN (EAN) | 4064675031901 |
| Qty. | 50 items |

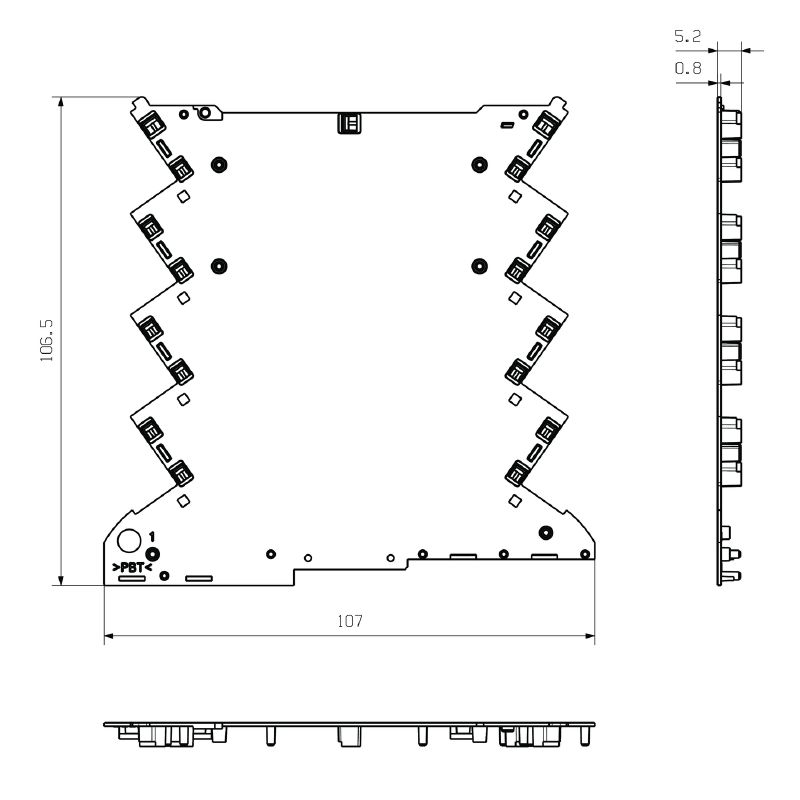

| Depth | 106,5 mm |
| Depth (inches) | 4,193 inch |
| 107 mm | |
| Height (inches) | 4,213 inch |
| Width | 5,3 mm |
| Width (inches) | 0,209 inch |
| Net weight | 2,24 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 400 ≤ CTI <600 |
| Insulating material | PBT |
| Insulating material group | II |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | Traffic grey (RAL) |
| Colour chart (similar) | RAL 7042 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Alternitive colours | More on request |
| Customer specific cutouts possible | Yes |
| Customer specific labelling possible | Yes |
| Customer specific order process | See guideline under downloads |
| Engineering Data | |
| Eplan Data Portal | |
| CADENAS eCATALOG | |
| Catalogues |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-02 |
| ECLASS 14.0 | 27-19-06-02 |
| ROHS | Conform |
-
