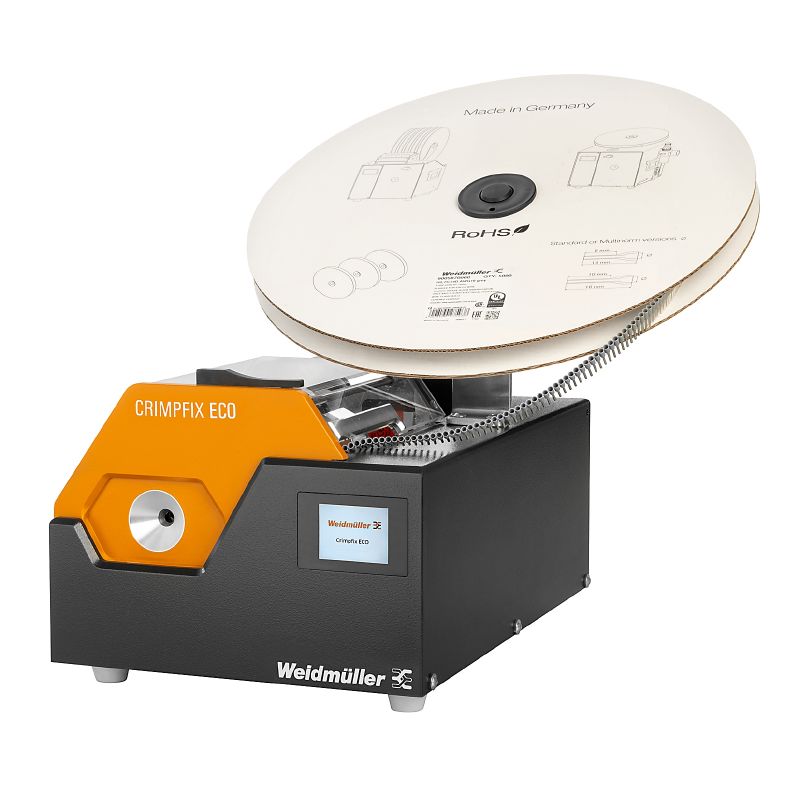

CRIMPFIX ECO

CRIMPFIX ECO

Automatic machines, Automatic stripper and crimper

Product ID 2833890000
Gegevensblad downloaden Product Downloads
Onderdelen 1 Verwante producten 15
Approvals General ordering data Dimensions and weights Environmental Product Compliance PW65 maintenance - automatic stripping/crimping Classifications

Approvals

ROHS
Conform

General ordering data

Version
Automatic machines, Automatic stripper and crimper
Order No.
2833890000
Type
CRIMPFIX ECO
GTIN (EAN)
4064675422570
Qty.
1  items

Dimensions and weights

Depth
323  mm
Depth (inches)
12,717  inch
Height
188  mm
Height (inches)
7,402  inch
Width
230  mm
Width (inches)
9,055  inch
Net weight
12.496  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
d2df479e-2b79-4e98-adc7-b03577df98ae

PW65 maintenance - automatic stripping/crimping

Consumables
Linked wire-end ferrules
Crimping
Trapezoidal
Crimping length
8 mm
Crimping range, max.
2,5  mm²
Crimping range, min.
0,5  mm²
Drive
Electro-mechanical
Electrical connection
100-240 V / 50/60 Hz / 100 VA
Length of wire-end ferrule
14 mm
Pulse time
approx. 1.5 s
Stripping range
0.5 - 2.5 mm² (~AWG 20-14)
Wire end ferrules cross-section, max.
2,5  mm²
Wire end ferrules cross-section, min.
0,5  mm²

Classifications

ETIM 6.0
EC002778
ETIM 7.0
EC002778
ETIM 8.0
EC002778
ETIM 9.0
EC002778
ETIM 10.0
EC002778
ECLASS 9.0
17-13-01-01
ECLASS 9.1
17-13-01-01
ECLASS 10.0
17-13-01-01
ECLASS 11.0
17-13-01-01
ECLASS 12.0
17-13-01-01
ECLASS 13.0
17-13-01-01
ECLASS 14.0
17-13-01-01
ECLASS 15.0
17-13-01-01
