H1,5/14D SW BD GSP

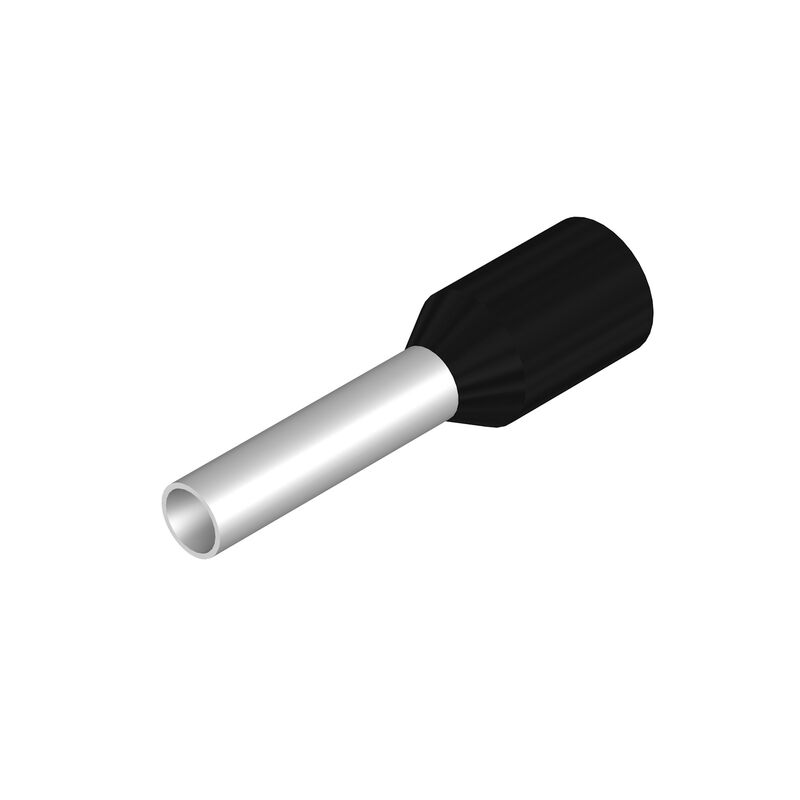

Wire-end ferrule, Standard, 10 mm, 8 mm, black

Ürün No. 9005890000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
aksesuarıdır 10 İlgili ürünler 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Wire-end ferrules Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/b770a92f-60fd-42c9-876f-9d6366f8928c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E499744

General ordering data

Version
Wire-end ferrule, Standard, 10 mm, 8 mm, black
Order No.
9005890000
Type
H1,5/14D SW BD GSP
GTIN (EAN)
4008190275952
Qty.
5.000 adet
Packaging
Reel

Dimensions and weights

Net weight
0,14 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Wire-end ferrules on reel, black
Version
Standard

Wire-end ferrules

Contact surface diameter (D1)
1,7 mm
färgkod
DIN
Gallér átmérője (D2)
3,5 mm
Grubość tulejki metalowej (S1)
0,15 mm
L1(mm)
14 mm
Spessore del collare isolante (S2)
0,25 mm
Wire connection cross section AWG, max.
AWG 16
Érintkező felület hossza (L2)
8 mm
Длина зачистки изоляции
10 mm
Поперечное сечение соединяемого провода
1,5 mm²

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
