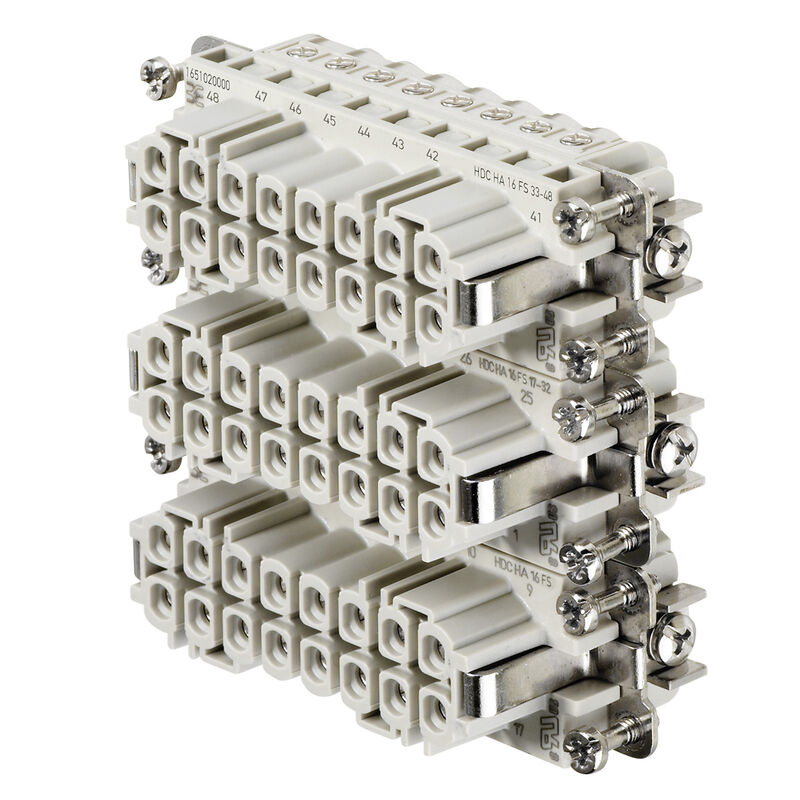

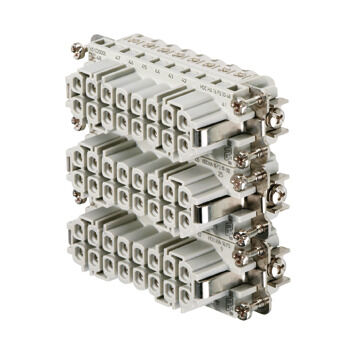

HDC HA 16 FS 33-48
HDC HA 16 FS 33-48
HDC HA 16 FS 33-48

HDC HA 16 FS 33-48

HDC insert, Female, 250 V, 16 A, Number of poles: 16, Screw connection, Installation size: 5

Tuotteen tunnus 1651020000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 2 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
HDC insert, Female, 250 V, 16 A, Number of poles: 16, Screw connection, Installation size: 5
Order No.
1651020000
Type
HDC HA 16 FS 33-48
GTIN (EAN)
4008190299644
Qty.
1  items

Dimensions and weights

Depth
73  mm
Depth (inches)
2,874  inch
Height
31,1  mm
Height (inches)
1,224  inch
Width
23  mm
Width (inches)
0,906  inch
Net weight
62,48  g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
31,1  mm
Total length base
73  mm
Width
23  mm

General data

Basic material
Copper alloy
BG
5
Colour
beige
Conductor cross-section
2,5  mm²
Installation size
5
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Max. torque for main contact
0,55  Nm
Min. torque for main contact
0,5  Nm
Number of poles
16
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    18,7 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    14,5 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10,5 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    7,5 A
Rated current (DIN EN 61984)
16  A
Rated current (UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
Rated impulse voltage (DIN EN 61984)
4  kV
Rated voltage (DIN EN 61984)
250  V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HA
Surface finish
Silver passivated
Type
Female
Type of connection
Screw connection
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
2,5  mm²
Stripping length PE connection
10  mm
Tightening torque, max. PE connection
1,5  Nm
Tightening torque, min. PE connection
1,2  Nm
Wire cross section, AWG (PE), max.
AWG 14
Wire cross section, AWG (PE), min.
AWG 20

Version

Basic material
Copper alloy
BG
5
Blade size
size PH0
Blade size, slotted (screw connection)
SD 0.6 x 3.5
Clamping screw
M 3
Conductor cross-section, max.
2,5  mm²
Conductor cross-section, min.
0,5  mm²
Installation size
5
Max. torque for main contact
0,55  Nm
Min. torque for main contact
0,5  Nm
Stripping length, rated connection
9  mm
Surface finish
Silver passivated
Type of connection
Screw connection
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
2,5  mm²
Wire connection cross section, finely stranded, min.
0,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5  mm²
Wire cross-section, solid, max.
2,5  mm²
Wire cross-section, solid, min.
0,5  mm²

Classifications

ETIM 6.0
EC000438
ETIM 7.0
EC000438
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-05
ECLASS 9.1
27-44-02-05
ECLASS 10.0
27-44-02-05
ECLASS 11.0
27-44-02-05
ECLASS 12.0
27-44-02-05
ECLASS 13.0
27-44-02-05
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
