HDC enclosures, Installation size: 8, Protection degree: IP68, IP69, in plugged condition, Base housing, Clamping yoke connection, Standard

Product ID 1079920000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 1 Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General data Version Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP68, IP69, in plugged condition, Base housing, Clamping yoke connection, Standard
Order No.
1079920000
Type
HDC IP68 HP 24B AS S
GTIN (EAN)
4032248841936
Qty.
1 items

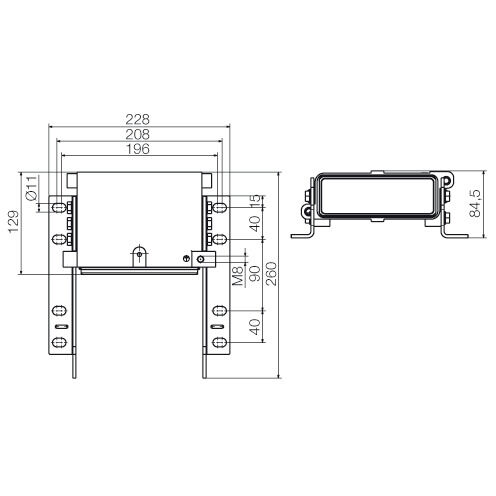

Dimensions and weights

Depth
228 mm
Depth (inches)
8,976 inch
Height
260 mm
Height (inches)
10,236 inch
Width
84,5 mm
Width (inches)
3,327 inch
Mounting dimension - height
170 mm
Mounting dimension - width
208 mm
Net weight
1.834,4 g

Temperatures

Limit temperature
-50 °C ... 120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Unstable
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Unstable
  • Substance:
    Sweat
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Unstable
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Resistant
  • Substance:
    Ozone
  • Chemical resistance:
    Resistant

General data

BG
8
Colour
black
black (similar to RAL 9005)
Design of housing
Base housing
EMC housings
Yes
Housing main material
diecast aluminium
Installation size
8
Material of locking element
Stainless steel, rust-proof
Material of mounting bracket
Stainless steel, rust-proof
Number of poles
0
Series
HighPower
Surface finish
Powder coating
Tightening torque, max. PE connection
11 Nm
Tightening torque, min. PE connection
11 Nm
Type
Base housing
Protection degree
IP68
IP69
in plugged condition

General data

EMC housings
Yes
Kapslingsmaterial
diecast aluminium
Material of locking element
Stainless steel, rust-proof
Material of mounting bracket
Stainless steel, rust-proof
Protection degree
IP68
IP69
in plugged condition
Series
HighPower
Surface finish
Powder coating

Version

BG
8
Cable entry
No
Cover
without cover
Design of locking system
Clamping yoke connection
Diseño
Standard
kolor (RAL)
RAL 9011
RAL 9005
Number of cable entry sideways
0
Tamaño de instalación
8
Top part/bottom part/lid
lower part
Típus
Base housing
Versione con gancio
Clamping yoke connection
Versión, cajas
Base housing
실링
Silicone rubber

Important note

Product information
Depending on the intended operation, internally generated voltages can superimpose the working voltage and contain corresponding peaks. It is imperative to ensure that these peak voltages do not exceed the rated voltage. For applications outside of this specification, please contact us.

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
