MPS 5/12 S TN B B

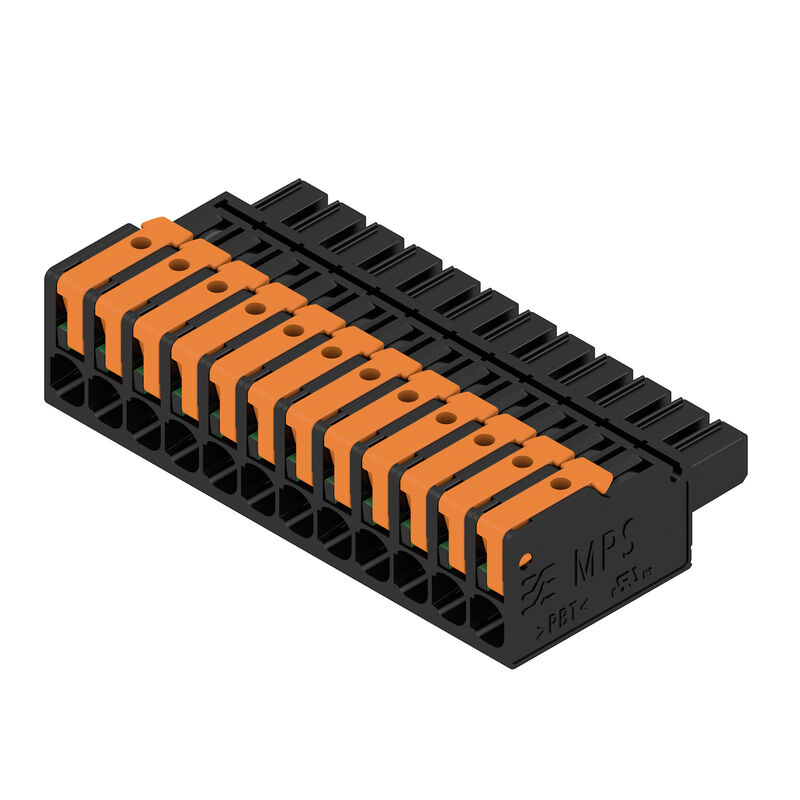

Product image
MPS 5/12 S TN B B

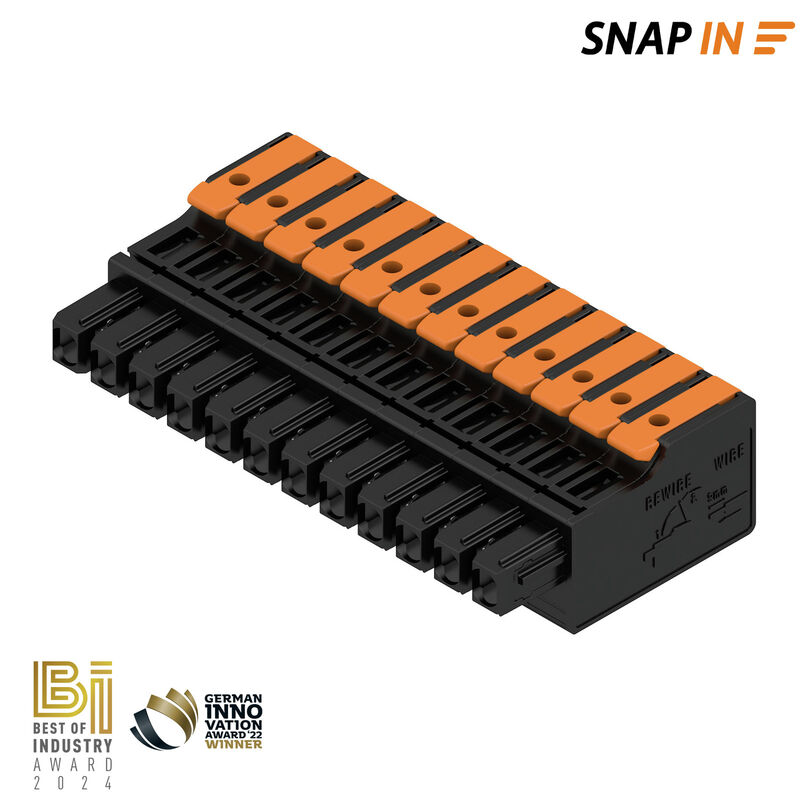

Product image
MPS 5/12 S TN B B
Dimensional drawing
MPS 5/12 S TN B B
Derating curve
MPS 5/12 S TN B B
Product benefits
Fastest connection technology SNAP IN
MPS 5/12 S TN B B
Product benefits
Acoustic and visual feedback
MPS 5/12 S TN B B
Product benefits

MPS 5/12 S TN B B

PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 12, 180°, Box

Tuotteen tunnus 2741660000
Lataa tietosivu Engineering Support Product Downloads
Vastineet 3 Samankaltaiset tuotteet 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to UL 1059 Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, Pitch in mm (P): 5.00 mm, Number of poles: 12, 180°, Box
Order No.
2741660000
Type
MPS 5/12 S TN B B
GTIN (EAN)
4064675055181
Qty.
30  items
Product data
IEC: 400 V / 26.8 A / 0.5 - 4 mm²
UL: 300 V / 18.5 A / AWG 20 - AWG 12
Packaging
Box

Dimensions and weights

Depth
34  mm
Depth (inches)
1,339  inch
Height
15,5  mm
Height (inches)
0,61  inch
Width
60,8  mm
Width (inches)
2,394  inch
Net weight
30,102  g

Temperatures

Ambient temperature
-50 °C…125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE 4.0
Type of connection
Field connection
Wire connection method
SNAP IN with lever
Pitch in mm (P)
5  mm
Pitch in inches (P)
0,197  "
Conductor outlet direction
180°
Number of poles
12
L1 in mm
55  mm
L1 in inches
2,165  "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Protection degree
IP20
Volume resistance
≤5 mΩ
Stripping length
9  mm
Stripping length tolerance
  • min.:
    8 mm
  • max.:
    10 mm
Plugging cycles
25
Plugging force/pole, max.
8,5  N
Pulling force/pole, max.
8,5  N

Material data

Insulating material
PBT GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Storage temperature, min.
−25  °C
Storage temperature, max.
55  °C
Operating temperature, min.
−50  °C
Operating temperature, max.
125  °C

Conductors suitable for connection

Clamping range, min.
0,34  mm²
Clamping range, max.
4  mm²
Solid, min. H05(07) V-U
0,5  mm²
Solid, max. H05(07) V-U
2,5  mm²
Flexible, min. H05(07) V-K
0,5  mm²
Flexible, max. H05(07) V-K
4  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,34  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,34  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5  mm²
Outer diameter of insulation, max.
4  mm
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025950000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9019160000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
26,8  A
Rated current, max. number of poles (Tu=20°C)
19,7  A
Rated current, min. number of poles (Tu=40°C)
23,1  A
Rated current, max. number of poles (Tu=40°C)
16,9  A
Rated voltage for surge voltage class / pollution degree II/2
400  V
Rated voltage for surge voltage class / pollution degree III/2
320  V
Rated voltage for surge voltage class / pollution degree III/3
250  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4  kV

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group C / UL 1059)
150  V
Rated voltage (Use group D / UL 1059)
300  V
Rated current (Use group B / UL 1059)
18,5  A
Rated current (Use group C / UL 1059)
18,5  A
Rated current (Use group D / UL 1059)
18,5  A
Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002638
ETIM 7.0
EC002638
ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 9.0
27-44-03-09
ECLASS 9.1
27-44-03-09
ECLASS 10.0
27-44-03-09
ECLASS 11.0
27-46-02-02
ECLASS 12.0
27-46-02-02
ECLASS 13.0
27-46-02-02
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
