Egenskaper

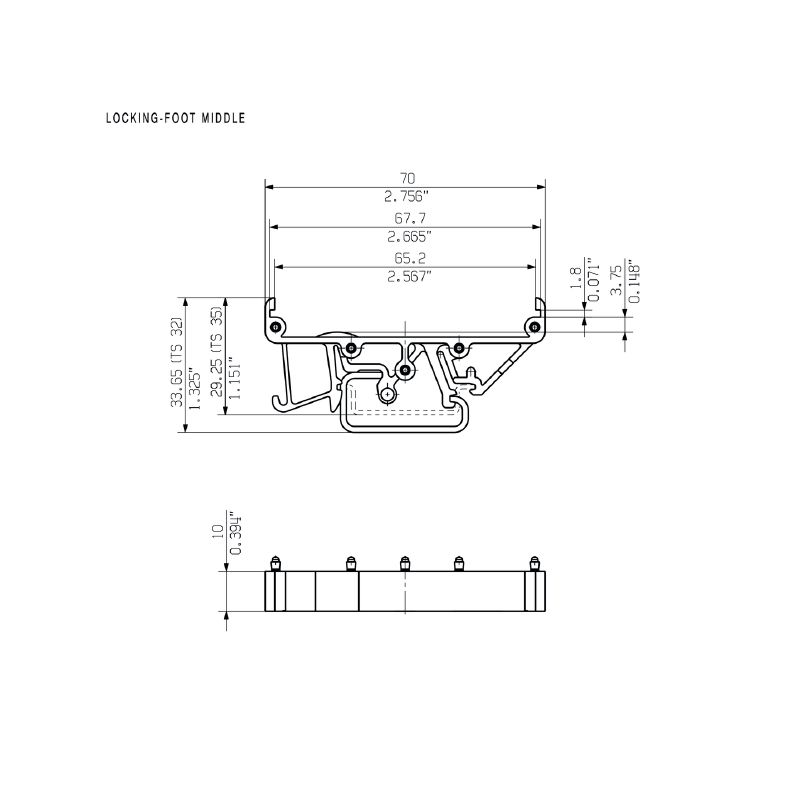

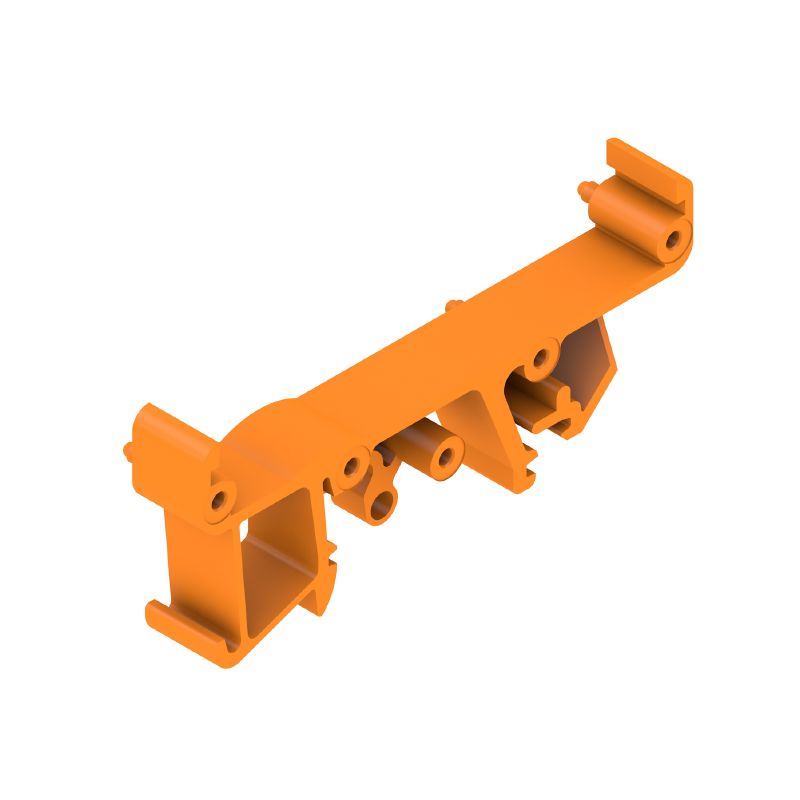

| Utförande | Montagefot, RS 70 orange, Mellanstycke, Montagefot, Bredd: 13.7 mm |
| Art.nr. | 0213760000 |
| Typ | RF RS 70 MI/A6 OR |
| GTIN (EAN) | 4008190148850 |
| Förp. | 20 items |
| Djup | 28,6 mm |
| Byggdjup (tum) | 1,126 inch |
| Höjd | 70 mm |
| Bygghöjd (tum) | 2,756 inch |
| Höjd lägstbyggande | 32 mm |
| Bredd | 13,7 mm |
| Byggbredd (tum) | 0,539 inch |
| Nettovikt | 4,8 g |
| RoHS-kompatibilitetsstatus | Kompatibel utan undantag |
| REACH SVHC | No SVHC above 0.1 wt% |
| Brännbarhetsklass enligt UL 94 | V-2 |
| CTI (Comparative Tracking Index) | 600 ≤ CTI |
| Isoleringsmaterial | PA 66 |
| Färgkod | orange |
| Färgtabell (jämförbar) | RAL 2000 |
| Gjutbarhet | Nej |
| Skena |
TS 32
TS 35 |
| Skyddsklass | IP00 |
| Teknikuppgifter Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_211478) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0213760000) |
| Kataloger | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschyrer |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC002779 |
| ETIM 8.0 | EC002779 |
| ETIM 9.0 | EC002779 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-04 |
| ECLASS 14.0 | 27-19-06-04 |
| ROHS | Uppfyllelse |
