SAI-8-M 5P M12

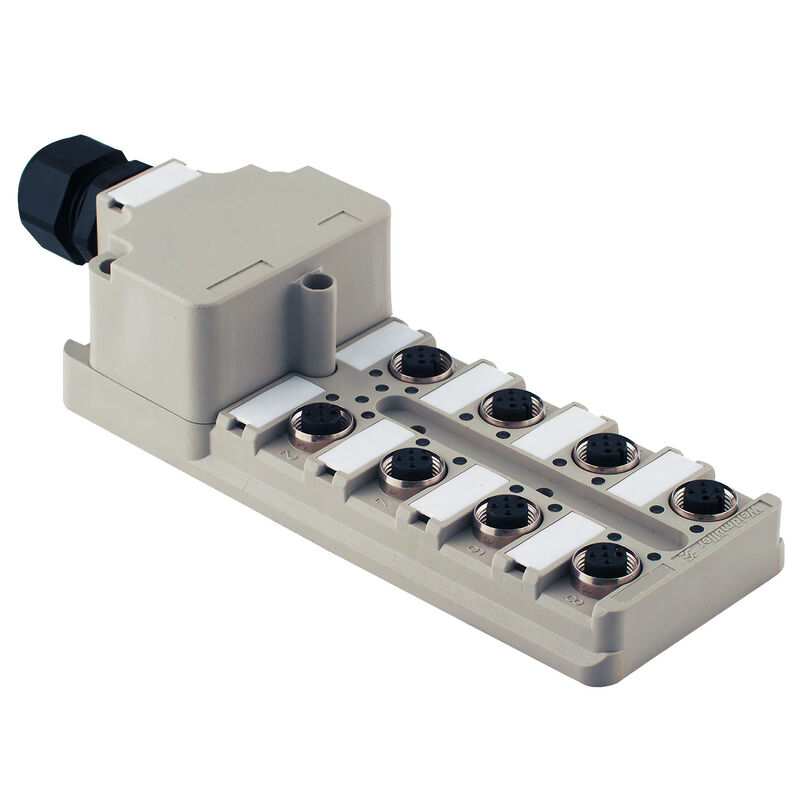

Similar to illustration
SAI-8-M 5P M12
Similar to illustration
SAI-8-M 5P M12
Dimensioned drawing
SAI-8-M 5P M12

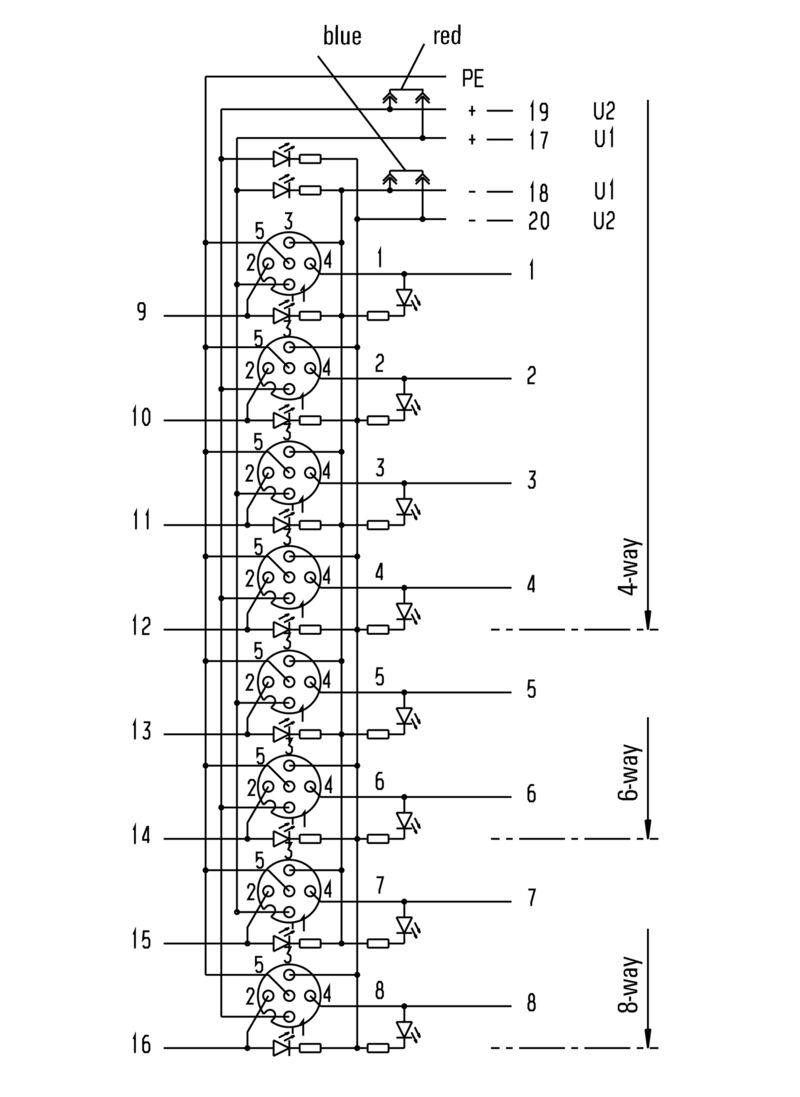

Wiring diagram

SAI-8-M 5P M12

Hood distributor, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP

Tuotteen tunnus 1701250000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 Yksittäiset osat 5 Samankaltaiset tuotteet 30
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E141197

General ordering data

Version
Hood distributor, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP
Order No.
1701250000
Typ
SAI-8-M 5P M12
GTIN (EAN)
4008190949761
Qty.
1 items

Dimensions and weights

Depth
152 mm
Depth (inches)
5,984 inch
Height
41,5 mm
Height (inches)
1,634 inch
Width
60 mm
Width (inches)
2,362 inch
Net weight
242 g

Temperatures

Operating temperature
-20 - 90°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Vnější prům. vodiče, min.
6 mm
Conductor O.D., max.
12 mm
Sheathing stripping length
100 mm
Verschraubung
M 20
Clamping range, min.
0,08 mm²
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
con term. tub. con aislamiento DIN 46 228/4,máx
1,5 mm²
con terminale, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Storage space
Standard
Отвод концентратора
Hood distributor

Electrical data

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Test voltage
1 kV
Max. current-carrying capacity per slot
4 A
Total current
10 A
Current per signal
2 A
Electrical isolation available
Yes
Insulation resistance
109 Ω

General technical data

Plug-in állomás kódolás
A-coded
Protection degree
IP68
Number of poles
5
Nombre de contacts femelles
8
Connection thread
M12
Stopień zanieczyszczenia
3
Fire behaviour
V-0
Plugging cycles
≤ 50
LED
Да
LED 이니시에이터
Yes
LED colour for indicating operation
green
LED colour for I/O function
yellow

Material data

Housing main material
Pocan
Material of distributor
Plastic
Housing colour
grey, RAL 7032
Fedél tömítőanyaga
Viton
Screw socket
Nickel-plated CuZn
접점 재질
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Technical data cable

Conductor O.D., min.
6 mm
Liczba biegunów
5
Наружный диаметр провода, макс.
12 mm
Przydatność do łańcucha ciągowego
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
