Egenskaper
| Utförande | Sensor/Aktuator-Stickanslutning, Crimpkontakt |
| Art.nr. | 1170180000 |

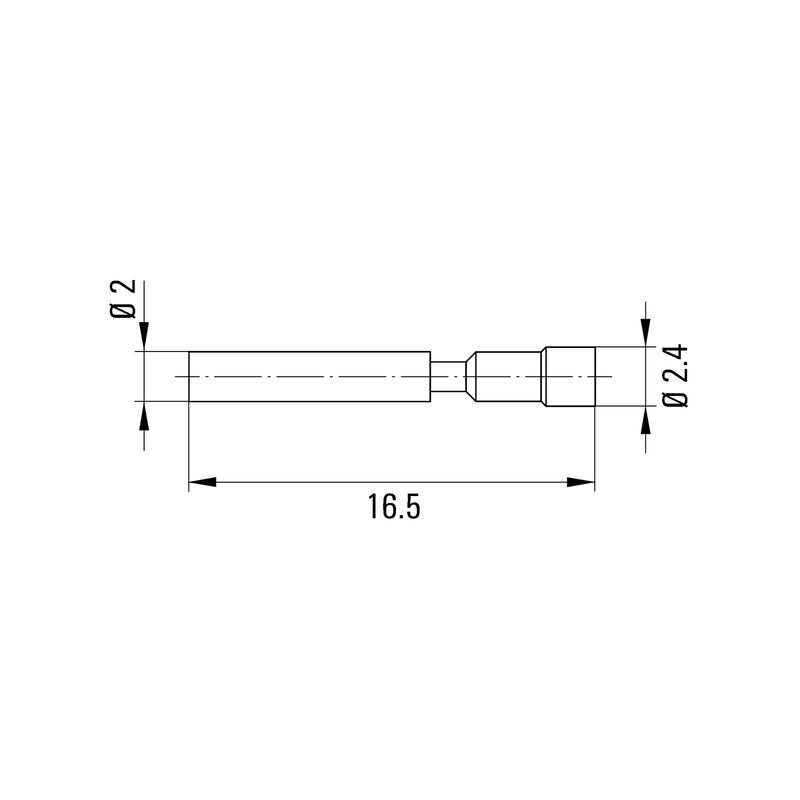

| Typ | SAI-M23-KBC-0.34/1.00 |
| GTIN (EAN) | 4032248962075 |
| Förp. | 50 items |
| Nettovikt | 0,3 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| RoHS-kompatibilitetsstatus | Kompatibel |
| Anslutningstyp | Crimpanslutning |
| Isolationshållfasthet | > 1010 Ω |
| Kontaktmaterial | Koppar-zink-legering |
| Kontaktyta | förgylld |
| Ledardiameter, max. | 1 mm² |
| Ledardiameter, min. | 0,34 mm² |
| Stickcykler | > 1000 |
| Teknikuppgifter Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97662) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1170180000) |
| Kataloger | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschyrer |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Godkännanden |  |
| ROHS | Uppfyllelse |
| UL File Number Search | [UL-webbplats](LINK/UL_search.html) |
| Certifikat nr. (UR) | E344862 |
