SAIB-VSA-4P/230/11-H/OB
Similar to illustration
SAIB-VSA-4P/230/11-H/OB

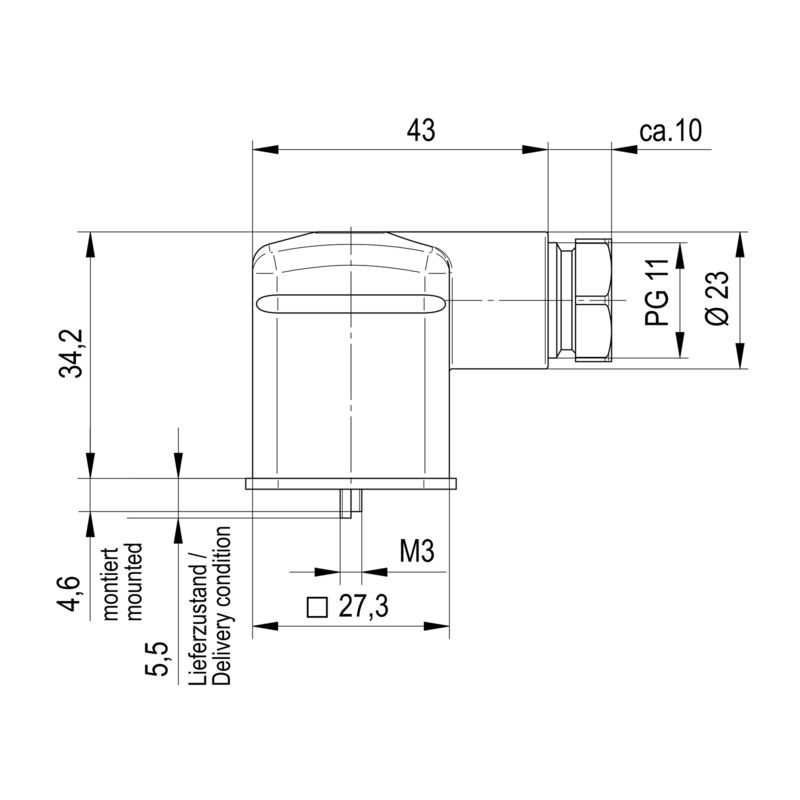

Dimensioned drawing
SAIB-VSA-4P/230/11-H/OB
Pole scheme

SAIB-VSA-4P/230/11-H/OB

Valve plug-in connector (field assembled), Number of poles: 4, Design A (18 mm), Without circuitry, 230 V, 0.34...1.5 mm²

Tuotteen tunnus 1873160000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Valve plug-in connector (field assembled), Number of poles: 4, Design A (18 mm), Without circuitry, 230 V, 0.34...1.5 mm²
Order No.
1873160000
Type
SAIB-VSA-4P/230/11-H/OB
GTIN (EAN)
4032248492534
Qty.
1  items

Dimensions and weights

Net weight
30  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

All valve plugs are fitted with protective circuits
Without circuitry
Cable diameter, max.
9  mm
Cable diameter, min.
6  mm
Cable glands
PG 11
Coding
Design A (18 mm)
Conductor cross-section, max.
1,5  mm²
Conductor cross-section, min.
0,34  mm²
Connection cross-section, max.
1,5  mm²
Connection cross-section, min.
0,34  mm²
Contact material
CuZn
Contact surface
CuSn
Housing main material
PA 6 GF
Insulation strength
108 Ω
LED
No
Number of poles
4
Plugging cycles
≤ 50
Pollution severity
3
Protection degree
IP65
IP67
when screwed in
Rated current
10  A
Rated voltage
230  V
Shield connection
No
Temperature range of housing
-30…+90 °C
Type of connection
Screw connection

Classifications

ETIM 6.0
EC002062
ETIM 7.0
EC003623
ETIM 8.0
EC003623
ETIM 9.0
EC003623
ETIM 10.0
EC003623
ECLASS 9.0
27-44-01-05
ECLASS 9.1
27-44-01-05
ECLASS 10.0
27-44-01-05
ECLASS 11.0
27-44-01-05
ECLASS 12.0
27-44-01-05
ECLASS 13.0
27-44-01-05
ECLASS 14.0
27-44-01-05
ECLASS 15.0
27-44-01-05
